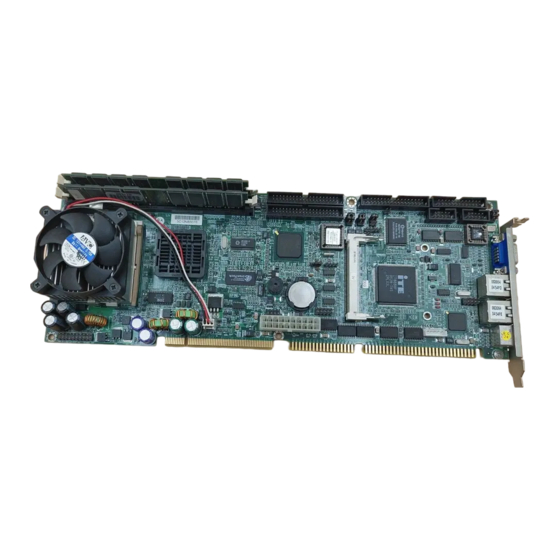

ADLINK Technology NuPRO-780 Series User Manual

Picmg full-size cpu card
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
NuPRO-780 Series
PICMG Full-size CPU Card
User's Guide
Recycled Paper

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the NuPRO-780 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for ADLINK Technology NuPRO-780 Series

Summary of Contents for ADLINK Technology NuPRO-780 Series

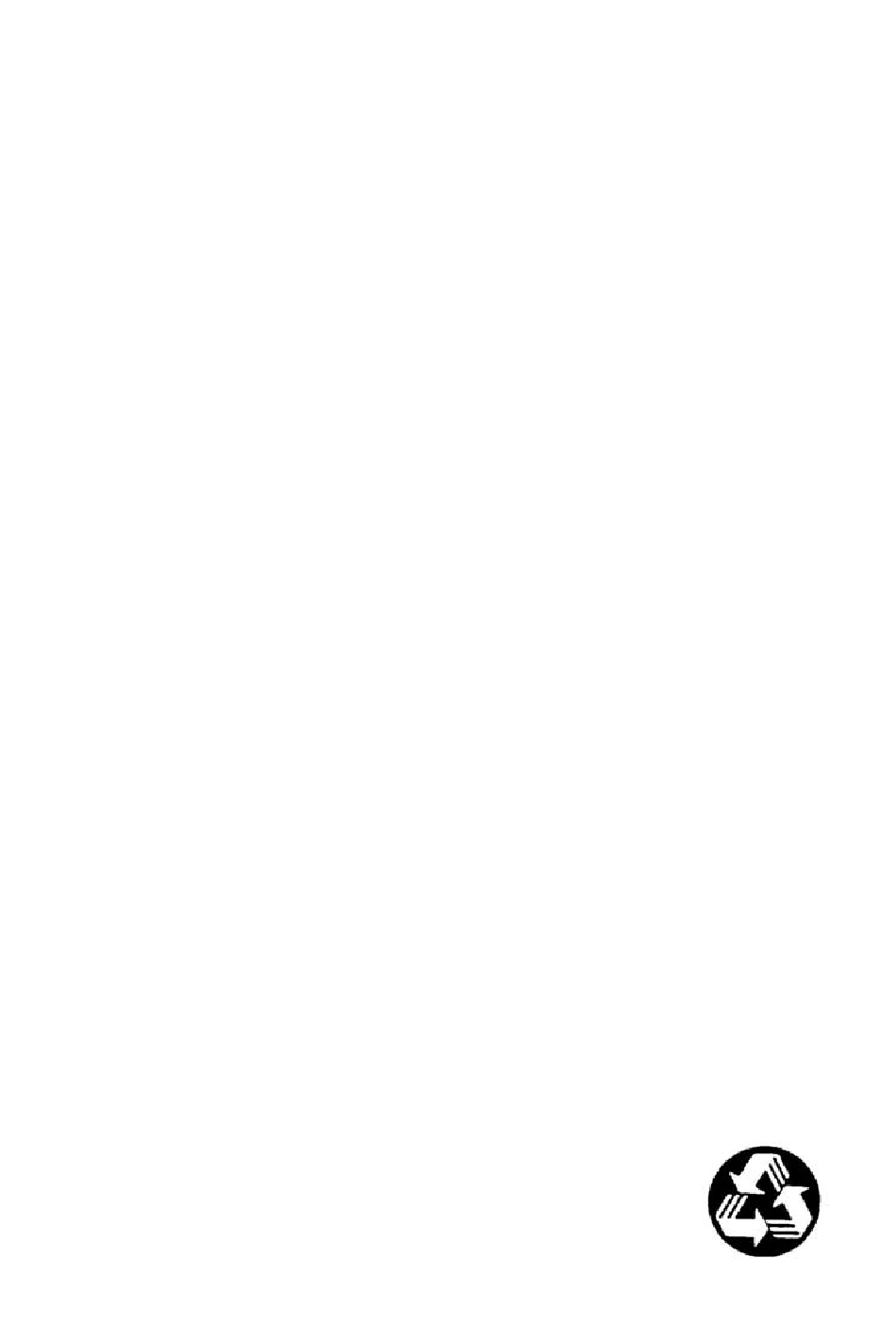

  • Page 1 NuPRO-780 Series PICMG Full-size CPU Card User’s Guide Recycled Paper...
  • Page 3 Trademarks NuPRO is a registered trademark of ADLINK Technology Inc., Other product names mentioned herein are used for identification purposes only and may be trademarks and/or registered trademarks of their...
  • Page 4 Getting service from ADLINK • Customer Satisfaction is always the most important thing for ADLINK Tech Inc. If you need any help or service, please contact us and get it. ADLINK Technology Inc. http://www.adlink.com.tw Web Site http://www.adlinktechnology.com Sales & Service service@adlink.com.tw NuDAQ + USBDAQ nudaq@adlink.com.tw...

  • Page 5: Table Of Contents

    Table of Contents Chapter 1 Introduction ............1 Checklist................2 Description .................2 Features ................2 Specifications..............4 Intelligence .................7 PCB Layout Drawing............7 Mechanical Drawing............8 Chapter 2 Installation ............9 CPU Installation ..............9 Memory Installation............10 Jumpers on the NuPRO-780..........10 Chapter 3 Watchdog Programming........22 Chapter 4 Intel 815 Chipset Hardware and VGA Driver ..
  • Page 6 How to Use This Guide This manual is designed to help you to use the NuPRO-780 series. Chapter 1, “Introduction” gives an overview of the product features and specifications. Chapter 2, “Installation” describes how to install the SBC. The PCB layout, jumper setting and connector pin assignments are shown.
  • Page 7 NuPRO-780 Series Function List Model NuPRO-780DV NuPRO-780LV Pentium III / Celeron / Pentium III / Celeron / Processor Chipset Intel i815E B-Stepping Intel i815E B-Stepping BIOS Award Award 512MB un-buffered 512MB un-buffered Max. SDRAM Memory Sockets 2 x DIMM 2 x DIMM...

  • Page 9: Chapter 1 Introduction

    Introduction This manual is designed to give you information on the NuPRO-780 series CPU card. The information inside this user’s manual can be applied to NuPRO-780 series if without specified. The topics covered in this chapter are as follows: •...

  • Page 10: Checklist

    Checklist Please check that your package is complete and contains the items below. If you discover damaged or missing items, please contact your dealer. • The NuPRO-780 Industrial Computer Main Board • This User’s Manual • 1 IDE Ribbon Cable (ATA-100) •...
  • Page 11 • AC’97 Link interface support DB-AC97S board for audio input & output • One 32-bit/33MHz mPCI Bus which compatible with most of standard MiniPCI Type III or ADLINK’s mPCI add-on cards • ISA High Drive 64mA • Standard ATX power connector on board •...

  • Page 12: Specifications

    Specifications ♦ Processor Socket: Socket-370 connector ♦ Processor: Intel Celeron and Pentium III (FC-PGA & FC-PGA2), VIA C3 CPU ♦ Secondary Cache: built in CPU ♦ Bus Speed: 66/100/133MHz ♦ Chipset: Intel i82815E ♦ Memory Sockets: • Two 168-pin DIMM sockets •...
  • Page 13 • Memory size is controlled by device driver from 1 MB up to 11 MB ♦ PCI Bus Ethernet Interface: • Primary port : Built-in i815E chip + 82562EM (All of NuPRO-780 series) • Secondary port : Intel 82559 (For NuPRO-780DV only) •...
  • Page 14 • One 10 pin connector for DB-AC97S board ♦ Watchdog Timer: • Programmable I/O port 2Eh and 2Fh to configure watchdog timer • Time-out timing select 0~255 seconds or 0~255 minutes ♦ Keyboard and Mouse Connectors: • One PS/2 type mini-DIN connectors for PS/2 Keyboard & Mouse (When using Combo Cable) •...

  • Page 15: Intelligence

    Intelligence ♦ System Health Monitoring: A sensor for the CPU temperature on the NuPRO-780 monitors the CPU temperature, an external sensor for system temperature, case-opened indicator, fan-speed detection, system voltages monitoring. ♦ Windows 98 shut-off: Allows shut-off control from within Windows 98 and through an ATX power supply.

  • Page 16: Mechanical Drawing

    Mechanical Drawing 8 • Introduction...

  • Page 17: Chapter 2 Installation

    Installation This chapter provides information on how to use the jumpers and connectors on the NuPRO-780 in order to set up a workable system. The topics covered are: • Memory Installation • Jumpers Setting • Connectors Pin Assignments CPU Installation The NuPRO-780 industrial computer Main board supports a Socket-370 processor socket for Intel Celeron, Pentium III FC-PGA/FC-PGA2 and VIA C3 processors.

  • Page 18: Memory Installation

    Memory Installation The NuPRO-780 industrial computer main board supports two 168-pin DIMM sockets for a maximum total memory of 512MB. The memory modules can come in sizes of 32MB, 64MB, 128MB, and 256MB SDRAM. Jumpers on the NuPRO-780 The jumpers on the NuPRO-780 allow you to configure your main board according to the needs of your applications.
  • Page 19 PRINTER Port COM1 Port COM2 Port RS-485 / RS-485+ Directed Function Selector Jumper VGA Connector LAN1 Connector (RJ-45) LAN2 Connector (RJ-45) LAN LED Pin Header Internal KBD Connector KB/MS Connector COM2 Function Selection – JP4, JP3 and JP2 FUNCTION RS-232 RS-422 RS-485 Clean CMOS Jumper –...
  • Page 20 VGA Connector – CN2 SIGNAL SIGNAL V_PWR GREEN BLUE C_DATA V_HSYNC V_VSYNC C_CLK Keyboard/Mouse Connector – CN5 Please using ADLINK’s Y-Cable when using Keyboard and Mouse at same time. The cable is following the PC’99 standard, purple for Keyboard and Green for Mouse.
  • Page 21 LAN LED status LED Color Status Function Green 100Mbps (Speed 10Mbps status) Link Yellow Link off (Link Data transfer status) Blinking in progress Dual USB Connector – CN19 PIN # PIN # Signal Name USB0- / USB1- USB0+ / USB1+ Ground General Purpose System Signals –...
  • Page 22 PME# Power Management Event WDSPK Speaker signal Chassis Speaker Power RESETBT RESET Button signal RESET button Ground HDDLED Hard Disk LED signal Hard Disk LED Power PWRBT POWER Button signal Power on button Ground • Power LED and Keylock: Pins 1 - 5 The power LED indicates the status of the main power switch.
  • Page 23 Ethernet LED Connector – CN4 The connector is designed for extra LAN status LED which can display the LAN status by another LED, custom can design these LED on front panel. SIGNAL FUNCTION LED1_A LAN Active LED1_L LAN Link LED1_S LAN Speed Ground LED2_A...
  • Page 24 COM1 Serial Port Connector – CN8 PIN # RS-232 DCD, Data carrier detect RXD, Receive data TXD, Transmit data DTR, Data terminal ready GND, ground DSR, Data set ready RTS, Request to send CTS, Clear to send RI, Ring indicator COM2 Serial Port Connector –...
  • Page 25 Floppy Drive Connector – CN10 Signal Name PIN # Signal Name Ground Drive density selection Ground No connect Ground Drive density selection Ground Index Ground Motor enable 0 Ground Drive select 1 Ground Drive select 0 Ground Motor enable 1 Ground Direction Ground...
  • Page 26 Primary & Secondary IDE Interface Connectors – CN15 & CN14 DESCRIPTION DESCRIPTION RESET# GROUND DATA7 DATA8 DATA6 DATA9 DATA5 DATA10 DATA4 DATA11 DATA3 DATA12 DATA2 DATA13 DATA1 DATA14 DATA0 DATA15 GROUND GROUND IOW# GROUND IOR# GROUND IOCHRDY GROUND GROUND INTERRUPT IOCS16# HDC CSO# HDC CS1#...
  • Page 27 ATX Power Connector – CN18 SIGNAL SIGNAL CN18 +3.3V +3.3V +3.3V -12V PS_ON_L POWER GOOD STB5V +12V CPU FAN Connector – FN1 Signal FAN_12V FANSPD_1 IrDA Connector – CN12 SIGNAL CN12 IRRXD IRTXD Internal KBD Connector – CN9 PIN # Signal Name Vcc (+5V) KBD Data...
  • Page 28 MiniPCI Connector – CN13 This connector is following the MiniPCI Type III standard which is designed for the most of laptop computer. This connector is design for most of application such as SCSI, LCD, LAN or others. Please contact with ADLINK’s reseller for more detail information.
  • Page 29 SIGNAL FUNCTION Ground CN21 Ground Power Power 10 8 6 4 2 AC_SYNC Synchro-signal AC_BITCLK Bit Clock AC_SDIN0 Data Input 0 AC_SDOUT Data Output AC_SDIN1 Data Input 1 AC_RSTJ Reset Installation • 21...

  • Page 30: Chapter 3 Watchdog Programming

    Watchdog Programming NuPRO-780 implements a watchdog timer embedded in the 83627HF. It contains a one-second/minute resolution down counter (in CRF6 of logical device 8 of 83627HF) and two Watchdog control registers (CRF5 and CRF7 of logical device 8). Once setup a value to WDT, the timer begins to count down.
  • Page 31 begin: ;--------------------------------------------------; Enter the extend function mode, interrupt double-write ;-------------------------------------------------- dx,2eh al,87h dx,al dx,al dx,2eh al,2bh ;CR2B, bit4-> 0 = WDTO bit4-> 1 = GP24 dx,al dx,2fh al,0c0h dx,al dx,2eh al,07h dx,al dx,2fh al,08h ;device 8 dx,al dx,2eh al,30h dx,al dx,2fh al,01h ;enable device 8...
  • Page 32 dx,2fh al,0c0h dx,al dx,2eh al,07h dx,al dx,2fh al,08h dx,al ;device 8 dx,2eh al,0f5h ;device 8, CRF5 dx,al dx,2fh al,00h ;bit3 -> 0 = second ;bit3 -> 1 = minute dx,al dx,2eh al,07h dx,al dx,2fh al,08h dx,al ;device 8 dx,2eh al,0f6h ;device 8, CRF6 dx,al dx,2fh...
  • Page 33 ADLINK also provides watchdog programs and subroutines for easy use under DOS, Windows 95/98/2000, and Windows NT. Please browse ADLINK CD for more information. Watchdog Programming • 25...

  • Page 34: Chapter 4 Intel 815 Chipset Hardware And Vga Driver

    Intel 815 Chipset Hardware and VGA Driver This chapter describes the installation procedure of Intel 815 chipset Device Driver for Windows 95/98/2000. Hardware Configuration File Installation This section describes system requirements of Intel 815 chipset Device Driver. This driver has been designed for and tested with Windows 98/95. The system must contain a supported Intel processor and chipset configuration.
  • Page 35 Installing Hardware Configuration File This subsection describes how to install the hardware configuration file on a system where Windows 98/95 is installed. Note: Record the location of the Windows 95/98/2000 directory before installing the driver. Check the System Requirements. Windows 95/98/2000 must be fully installed and running on the system prior to running this software.

  • Page 36: Vga Driver Installation

    VGA Driver Installation This section provides information on how to install the VGA driver that come in the Compact Disk with the package. Please follow the instructions set forth in this section carefully. Please note that there must be relevant software installed in your system before you could proceed to install the VGA driver.
  • Page 37 Click Yes if you agree to continue. NOTE: If you click No, the program will terminate. Windows NT 4.0 will prompt you to restart computer. Click Yes for the new settings to take effect. Follow the screen instructions and use default settings to complete the setup when Windows NT 4.0 is re-started.

  • Page 38: Chapter 5 Lan Driver Installation

    LAN Driver Installation This chapter describes LAN driver installation for the onboard Ethernet controller Intel 82562EM and Intel 82559. The relative drivers are under the following ADLINK CD directory: X:\CHIPDRV\LAN\82559, where X: is the location of the CD-ROM drive. Software and Drivers Support The Intel LAN drivers support the following OS or platforms: Windows 98, Windows 95, Windows 2000, Windows NT Novell Netware, DOS Setup for Novell NetWare DOS...

  • Page 39: Driver Installation On Windows 2000

    Driver Installation on Windows 2000 The Windows 2000 may install the LAN driver. We recommend you to manually installed the most updated LAN driver, which shipped with ADLINK CD to guarantee the compatibility. After installing the Windows 2000, please update the new drivers by the following procedures. Boot Windows 2000, Click Start.

  • Page 40: Driver Installation On Windows 98

    Driver Installation on Windows 98 The Windows 98 will install the LAN driver automatically. We recommend you to manually updated the LAN, which on the ADLINK CD to guarantee the compatibility. After installing Windows 98, please update the new drivers by the following procedures. Boot Windows 98, Click Start.

  • Page 41: Driver Installation On Windows Nt

    Driver Installation on Windows NT Windows NT may ask to installs a LAN driver from its own library of drivers. We recommend you to manually update the LAN, which on the ADLINK CD to guarantee the compatibility. After installing Windows 98, please update the new driver by the following procedures.

  • Page 42: Warranty Policy

    Warranty Policy Thank you for choosing ADLINK. To understand your rights and enjoy all the after-sales services we offer, please read the following carefully. Before using ADLINK’s products please read the user manual and follow the instructions exactly. When sending in damaged products for repair, please attach an RMA application form which can be downloaded from: http://rma.adlinktech.com/policy/.
  • Page 43 • Damage caused by leakage of battery fluid during or after change of batteries by customer/user. • Damage from improper repair by unauthorized ADLINK technicians. • Products with altered and/or damaged serial numbers are not entitled to our service. • This warranty is not transferable or extendible.
