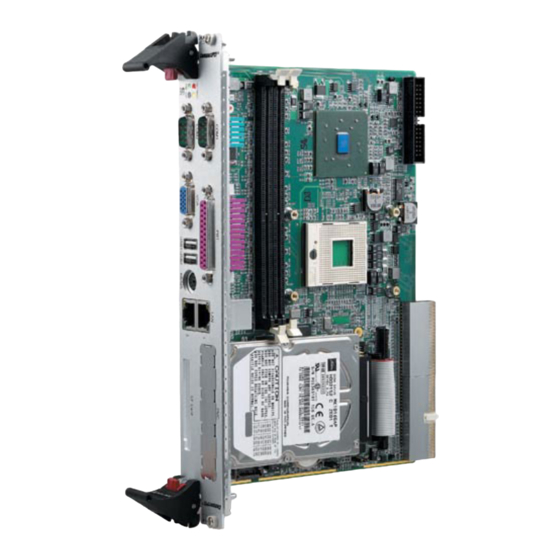

ADLINK Technology cPCI-6842 Series User Manual

6u compactpci pentium m single board computers
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Manual Rev.
Revision Date:
Part No:
Advance Technologies; Automate the World.
This datasheet has been downloaded from
cPCI-6842 Series
6U CompactPCI Pentium M
Single Board Computers
User's Manual
2.00
July 19, 2005
50-15049-1000
http://www.digchip.com
at this
page

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the cPCI-6842 Series and is the answer not in the manual?

Questions and answers

Related Manuals for ADLINK Technology cPCI-6842 Series

Summary of Contents for ADLINK Technology cPCI-6842 Series

  • Page 1 Series 6U CompactPCI Pentium M Single Board Computers User’s Manual Manual Rev. 2.00 Revision Date: July 19, 2005 Part No: 50-15049-1000 Advance Technologies; Automate the World. This datasheet has been downloaded from http://www.digchip.com at this page...
  • Page 2 Copyright 2005 ADLINK TECHNOLOGY INC. All Rights Reserved. The information in this document is subject to change without prior notice in order to improve reliability, design, and function and does not represent a commitment on the part of the manufacturer.
  • Page 3 Getting Service from ADLINK Customer Satisfaction is top priority for ADLINK Technology Inc. Please contact us should you require any service or assistance. ADLINK TECHNOLOGY INC. Web Site: http://www.adlinktech.com Sales & Service: Service@adlinktech.com TEL: +886-2-82265877 FAX: +886-2-82265717 Address: 9F, No. 166, Jian Yi Road, Chungho City,...

  • Page 5: Table Of Contents

    SBC Specifications ........7 I/O Connectivity ............10 Unpacking Checklist ............11 2 Jumpers and Connectors ..........13 cPCI-6842 Series Mechanical Drawings ......14 cPCI-6842 Series Pin Assignments........17 USB Connectors ............17 VGA Connector ............. 17 Ethernet (RJ-45) Connector .......... 18 PS2 Connector .............
  • Page 6 CompactPCI J1 Pin Assignment ........28 CompactPCI J2 Pin Assignment ........29 CompactPCI J3 Pin Assignment (optional) ....30 cPCI-6842 Series Switch and Jumper Settings ....31 SW1: Reset Button ............31 JP2: PMC VIO Selection ..........31 3 Getting Started ..............33 CPU and Heatsink .............

  • Page 7: List Of Tables

    List of Tables Table 1-1: Power Ratings ............9 Table 1-2: I/O Connectivity Table ..........10 Table 2-1: Ethernet LED Status ..........18 Table 2-2: Switch and Jumper Functions ........ 31 Table 2-3: JP2 Settings ............31 Table 2-4: JP3 Settings ............32 Table 3-1: DDR SDRAM Memory Capacity ......
  • Page 8 List of Tables...

  • Page 9: List Of Figures

    List of Figures Figure 1-1: cPCI-6842 Block Diagram ......... 2 Figure 2-1: cPCI-6842 Top View..........14 Figure 2-2: cPCI-6842 and cPCI-6842-2 Front View ....15 Figure 2-3: cPCI-6842-2 Top View ..........16 Figure 3-1: CPU Installation............34 Figure 3-2: Heatsink Installation ..........35 Figure 3-3: cPCI-6842 2.5”...
  • Page 10 List of Figures...

  • Page 12: Introduction

    Introduction The cPCI-6842 is a 6U CompactPCI single board computer based on the Intel® Pentium® M processor and 855GME/ICH4 chipset. The Pentium® M processor’s operating frequency ranges from 1.3GHz up to 2.0GHz and it comes with 1MB/2MB L2 cache in an FC-mPGA package.

  • Page 13: Figure 1-1: Cpci-6842 Block Diagram

    Figure 1-1: cPCI-6842 Block Diagram Introduction...

  • Page 14: Main Functions

    1.1 Main Functions The following sections explain the main functions of the cPCI-6842. CPU Support The cPCI-6842 SBC is designed for the Intel® Pentium® M and Celeron® M Processors. The standard cPCI-6842 SBC comes µ with CPU socket which can be installed with FC-PGA2 package CPU, with the following options: Pentium®...

  • Page 15: Gigabit Ethernet Ports

    Gigabit Ethernet Ports The cPCI-6842 has two 10/100/1000Mbps Ethernet (GbE) ports. Every port is assigned a unique static MAC Address. Two onboard Intel® 82541GI Gigabit Ethernet controllers provide two Ethernet ports and are implemented on a 32-bit/33 MHz PCI bus. The 82541GI supports IEEE 802.3x compliant flow control and IEEE 802.3ab compliant 10/100/1000 Mbps auto-negotiation.

  • Page 16: Fdd Interface

    compatible. The cPCI-6842 provides a proprietary combo PS2 connector on the front panel (a cable is included). FDD Interface The cPCI-6842 uses the Winbond W83627HF Super I/O to imple- ment the Floppy interface. Signals are available at the FDD con- nector.

  • Page 17: Features

    COM ports, one printer port, two GbEs, one PMC, and optional DVI or CF 1.3 Product List The cPCI-6842 series products include the following SBC and rear I/O transition modules (RTM): cPCI-6842: Pentium® M SBC with Hot Swappable CF slot cPCI-6842-2: Pentium®...

  • Page 18: Specifications

    1.4 Specifications cPCI-6842V SBC Specifications CompactPCI Compliancy PICMG 2.0 CompactPCI Rev. 3.0 Form Factor Standard 6U CompactPCI (board size: 233.35mm x 160mm) Dual slot width (8TE or 8HP, 40.64mm) CPU/Cache Single Intel® Pentium® M 1.4/1.6/1.7/1.8/2.0GHz or Cele- µ ron® M 1.3GHz Processors with FC-PGA package 1MB or 2MB on die L2 cache, 400MHz FSB Chipset...
  • Page 19 CompactPCI Bus Controller TI PCI-2050 PCI-to-PCI bridge PCI Rev 2.2 compliant Supports 32-bit/33 MHz Graphics Integrated into 855GME Graphics Memory Controller Hub Shared memory, up to 32MB Dual channel display Front panel DVI connector is available on cPCI-6842-2 only Gigabit Ethernet Two 10/100/1000bps Gigabit Ethernet ports GbE ports are implemented through Intel®...

  • Page 20: Table 1-1: Power Ratings

    Real -Time Clock and Nonvolatile Memory Built into Intel® 82801DB southbridge RTC Battery-backed memory is used for BIOS configuration Separate 3V coin cell CR2032 battery used for RTC and nonvolatile memory Environment Operating temperature: 0 to 60°C Storage temperature: -40 to 80°C Humidity: 5% to 95% non-condensed Shock: 15G peak-to-peak, 11ms duration, non-operation Vibration:...

  • Page 21: I/O Connectivity

    I/O Connectivity cPCI-6842 cPCI-6842-2 Function Face- Face- plate Board plate Board COM x 2 Y (DB-9) Y (DB-9) Y (DB-15) Y (DB-15) Y (DB-25) Y (DB-25) Y (Combo) Y (Combo) USB2.0 x 2 LAN x 2 Y (RJ-45) Y (RJ-45) Y (Hot Swappable) Y (32-bit/33...

  • Page 22: Unpacking Checklist

    1.5 Unpacking Checklist Check the shipping carton for any damage. If the shipping carton and contents are damaged, notify the dealer for a replacement. Retain the shipping carton and packing materials for inspection by the dealer. Obtain authorization before returning any product to ADLINK.
  • Page 23 Introduction...

  • Page 24: Jumpers And Connectors

    Jumpers and Connectors This chapter illustrates the board layout, connector pin assign- ments, and jumper setings. Users should be familiar with the prod- ucts before use. The following sections are included: cPCI-6842 and cPCI-6842-2 board outline cPCI-6842 and cPCI-6842-2 connectors pin assignments cPCI-6842 and cPCI-6842-2 jumper settings Jumpers and Connectors...

  • Page 25: Cpci-6842 Series Mechanical Drawings

    2.1 cPCI-6842 Series Mechanical Drawings Figure 2-1: cPCI-6842 Top View Jumpers and Connectors...

  • Page 26: Figure 2-2: Cpci-6842 And Cpci-6842-2 Front View

    cPCI-6842 cPCI-6842-2 Figure 2-2: cPCI-6842 and cPCI-6842-2 Front View Jumpers and Connectors...

  • Page 27: Figure 2-3: Cpci-6842-2 Top View

    Figure 2-3: cPCI-6842-2 Top View Jumpers and Connectors...

  • Page 28: Cpci-6842 Series Pin Assignments

    2.2 cPCI-6842 Series Pin Assignments USB Connectors SIGNAL USB- USB+ Ground VGA Connector Signal Name Pin Pin Signal Name Green Blue N.C. N.C. DDCDAT HSYNC VSYNC DDCCLK Jumpers and Connectors...

  • Page 29: Ethernet (Rj-45) Connector

    Ethernet (RJ-45) Connector Pin # Signal Name Function LAN_TDP1 Transmit Data1 + LAN_TDN1 Transmit Data1 - LAN_RDP2 Receive Data2 + LAN_RDP3 Receive Data3 + LAN_RDN3 Receive Data3 - LAN_RDN2 Receive Data2 + LAN_TDP4 Transmit Data4 + LAN_TDN4 Transmit Data4 - Yellow / Amber Status Amber LED...

  • Page 30: Ps2 Connector

    PS2 Connector Signal Function KBDATA Keyboard Data MSDAT Mouse Data Ground Power KBCLK Keyboard Clock MSCLK Mouse Clock RS-232 Serial Port Connector Signal Name DCD, Data carrier detect RXD, Receive data TXD, Transmit data DTR, Data terminal ready GND, Ground DSR, Data set ready RTS, Request to send CTS, Clear to send...

  • Page 31: Parallel Port Connector

    Parallel Port Connector Signal Name Signal Name Line printer strobe AutoFeed PD0, parallel data 0 Error PD0, parallel data 1 Initialize PD0, parallel data 2 Select PD0, parallel data 3 PD0, parallel data 4 PD0, parallel data 5 PD0, parallel data 6 PD0, parallel data 7 ACK, acknowledge Busy...

  • Page 32: Dvi Connector

    DVI Connector Signal Pin Signal TX2- 16 HTPLG TX2+ TX0- TX0+ I2CCLK I2CDAT VSYNC TXC+ TX1- TXC- TX1+ 26 GREEN BLUE 28 HSYNC Jumpers and Connectors...

  • Page 33: Compactflash Connector

    CompactFlash Connector Signal Name Pin Pin Signal Name SDD3 SDD11 SDD4 SDD12 SDD5 SDD13 SDD6 SDD14 SDD7 SDD15 SDCS#1 SDCS#3 SDIOR# SDIOW# IDEIRQ15 PCSEL SIDERST# SIORDY SDA2 SDA1 SDDACK# SDA0 IDEACT# SDD0 S66DECT SDD1 SDD8 SDD2 SDD9 IOIS16# SDD10 Jumpers and Connectors...

  • Page 34: Floppy Connector

    Floppy Connector Signal Name Pin Pin Signal Name Extended Density Data Rate Index Motor A Select Drive B Select Drive A Select Motor B Select Step Direc- tion Step Pulse Write Data Write Gate Track 0 28 Write Protect Read Data Side 1 34 Disk Change Jumpers and Connectors...

  • Page 35: Ide Connector

    IDE Connector Signal Name Pin Pin Signal Name BRSTDRVJ DDP7 DDP8 DDP6 DDP9 DDP5 DDP10 DDP4 DDP11 DDP3 DDP12 DDP2 DDP13 DDP1 DDP14 DDP0 DDP15 PDDREQ PDIOWJ PDIORJ PIORDY PCSEL PDDACKJ IRQ14 DAP1 DIAG DAP0 DAP2 CS1P CS3PJ IDEACTPJ Jumpers and Connectors...

  • Page 36: General Purpose Led Definitions

    General Purpose LED definitions Color Status Description IDE idle IDE Media Access IDE access System is not power-on or power failed Power OK Green Power ON System is not in S5 State Sleep Status LED Blue (GP LED) System is in S5 State WDT is not enabled WDT LED Yellow...

  • Page 37: Pmc Connector Pin Assignments (Jn1, Jn2)

    PMC Connector Pin Assignments (JN1, JN2) Signal Signal Signal Signal Name Name Name Name TCK(3) -12V +12V TRST#(3) INTA# TMS(2) TDO(1) INTB# INTC# TDI(2) BM1(1) INTD# +3.3V BM2(2) +3.3V CLKP1 RST# BM3(3) GNT0# +3.3V BM4(3) REQ0# PME# VIO(4) AD31 AD30 AD29 AD28 AD27...
  • Page 38 Signal Signal Signal Signal Name Name Name Name VIO(4) EREADY(1) RSTOUT#(1) ACK64# +3.3V REQ64# Monarch#(1) Note 1: These signals are not connected on the board. Note 2: These signals are pulled high on the board. Note 3: These signals are pulled low on the board. Note 4: The VIO signals by default set to +5V via jumper JP2.

  • Page 39: Compactpci J1 Pin Assignment

    CompactPCI J1 Pin Assignment REQ64# ENUM#(4) +3.3V AD [1] V (I/O) AD [0] ACK64# GND +3.3V AD [4] AD [3] AD [2] AD [7] +3.3V AD [6] AD [5] +3.3V AD [9] AD [8] M66EN C/BE [0]# GND AD [12] V (I/O) AD [11] AD [10]...

  • Page 40: Compactpci J2 Pin Assignment

    CompactPCI J2 Pin Assignment 22 GND GA4(2) GA3(2) GA2(2) GA1(2) GA0(2) 21 GND CLK6 BRSV(1) BRSV(1) BRSV(1) 20 GND CLK5 BRSV(1) BRSV(1) 19 GND ICMBSDA(1) ICMBSCL(1) ICMBALR(1) GND 18 GND BRSV(1) BRSV(1) BRSV(1) BRSV(1) 17 GND BRSV(1) PRST# REQ6# GNT6# 16 GND BRSV(1) BRSV(1) DEG# BRSV(1)

  • Page 41: Compactpci J3 Pin Assignment (Optional)

    CompactPCI J3 Pin Assignment (optional) 19 GND PCIRST-L SIDE_IORDY IDEIRQ15 GND SIDE_DACT- SIDE_66DE 18 GND SIDE_CS-L3 SIDE_CS-L1 17 GND SIDE_D15 SIDE_D14 SIDE_D13 SIDE_D12 SIDE_DAC 16 GND SIDE_D11 SIDE_D10 SIDE_D9 SIDE_D8 SIDE_DRE 15 GND SIDE_A0 SIDE_A1 SIDE_A2 SIDE_IOW- 14 GND SIDE_D7 SIDE_D6 SIDE_D5 SIDE_D4...

  • Page 42: Cpci-6842 Series Switch And Jumper Settings

    2.3 cPCI-6842 Series Switch and Jumper Settings The following table lists the switch and jumpers on the cPCI-6842 and cPCI-6842V. Switch Function Reset PMC VIO Clear CMOS Content Table 2-1: Switch and Jumper Functions SW1: Reset Button SW1 is a push-button on the front panel. Pressing SW1 generates a hard reset.

  • Page 43: Table 2-4: Jp3 Settings

    JP3: Clear CMOS Status 1 2 3 Normal operation (Default) 1 2 3 Clear CMOS Table 2-3: JP3 Settings The CMOS RAM stores the real time clock (RTC) information, BIOS configuration, and default BIOS setting. The CMOS is pow- ered by a button cell battery when the system is powered off. Please use the following procedure to erase the CMOS RAM data: 1.

  • Page 44: Getting Started

    Getting Started This chapter explains how to install necessary components on the cPCI-6842 and cPCI-6842-2 including: CPU and heat sink Memory module installation HDD installation PMC installation CF card installation (cPCI-6842 only) Main board installation 3.1 CPU and Heatsink The cPCI-6842 and cPCI-6842-2 support the Intel® Pentium® M processor.

  • Page 45: Figure 3-1: Cpu Installation

    Figure 3-1: CPU Installation Getting Started...

  • Page 46: Heatsink Installation

    Heatsink Installation Remove the two mylar films from the underside of the heatsink. Place the heatsink on the board, ensuring that the thermal pads make proper contact with the CPU and northbride, as shown in Figure 3-2: Heatsink Installation below. Secure using the 6 spring-loaded screws provided.

  • Page 47: Memory Module Installation

    3.2 Memory Module Installation The cPCI-6842 series SBC provides two 184-pin sockets for ECC DDR-SDRAM with a maximum memory capacity of 2GB. If mem- ory modules are pre-installed when the package is received, this section may be skipped. The GMCH system memory controller directly supports the follow-...

  • Page 48: Hdd Installation On Main Board

    3.3 HDD Installation on Main Board A slim-type 2.5-inch HDD can be mounted on the cPCI-6842 or cPCI-6842-2. If a HDD is pre-installed, this section may be skipped. 1. Remove the PMC from the PMC slot if any. 2. Screw the standoffs onto the HDD and attach a 44-pin IDE cable.

  • Page 49: Figure 3-3: Cpci-6842 2.5" Hard Disk Installation

    Figure 3-3: cPCI-6842 2.5” Hard Disk Installation Getting Started...

  • Page 50: Pci Mezzanine Card (Pmc) Installation

    3.4 PCI Mezzanine Card (PMC) Installation The PMC slot is designed for 5V and/or universal PCI interfaces. The PMC site is keyed to prevent users from installing a 3.3V only PMC module. To install the PMC modules: 1. Prepare an ESD protected area including an anti-ESD table and ESD strap.

  • Page 51: Figure 3-4: Pmc Installation 1

    Figure 3-4: PMC Installation 1 Getting Started...

  • Page 52: Figure 3-5: Pmc Installation 2

    Figure 3-5: PMC Installation 2 Getting Started...

  • Page 53: Figure 3-6: Pmc Installation 3

    Figure 3-6: PMC Installation 3 Getting Started...

  • Page 54: Cf Installation (Cpci-6842 Only)

    3.5 CF Installation (cPCI-6842 only) The CompactFlash card is widely applied in digital consumer devices such as PDAs, digital cameras and MP3 players. Due to its anti-shock/anti-vibration properties, better environmental toler- ance, low power consumption, small form factor, and high reliabil- ity characteristics, it has been widely accepted in mission critical embedded applications.
  • Page 55 Getting Started...

  • Page 56: Windows Driver Installation

    Windows Driver Installation The following sections show the driver installation procedures for Windows 2000, Windows XP or Windows Server 2003. When installing the Windows drivers, we recommend the following steps: 1. Fully install the Windows properly before installing any driver. Most of the standard I/O devices’ driver will be installed during the standard Windows installation.

  • Page 57: Chipset Drivers Installation

    4.1 Chipset Drivers Installation 1. Ensure your Windows operating system is fully installed and running prior to executing the “Intel Chipset Soft- ware Installation Utility”. 2. Close any running applications. 3. The files are stored in an integrated application setup program.

  • Page 58: Lan Driver Installation

    4.3 LAN Driver Installation 1. Boot Windows 2000/XP/Windows Server 2003. 2. Run the pro2kxp.exe under the following directory: X:\cPCI\cPCI-6842\LAN. 3. Read the license agreement. Click 'I accept the terms in the license agreement’ if you agree to continue. 4. At the Location to Save Files prompt, click Next to save the files in the specified folder.
  • Page 59 Windows Driver Installation...

  • Page 60: Utilities

    Figure 5-1: cPCI-6842 Watchdog Timer Architecture The CPCI-6842 Series custom watchdog timer circuit is imple- mented using the Winbond W83627HF. It contains three Registers (CRF5, CRF6 and CRF7 of logical device 8) for controlling the watchdog timer and retrieving its status.

  • Page 61: Using The Watchdog In An Application

    Once the watchdog has timed out, it will cause a RESET signal to be sent to the system. 5.2 Using the Watchdog in an Application The following section is provided to assist you in learning how to use the watchdog in an application. The watchdog’s Reset func- tion is as explained above.

  • Page 62: Intel Preboot Execution Environment (Pxe)

    5.3 Intel Preboot Execution Environment (PXE) The cPCI-6842 series supports Intel® Preboot Execution Environ- ment (PXE), which provides the capability to boot up or execute an OS installation through an Ethernet connection. There should be a DHCP server in the network with one or more servers running PXE and MTFTP services.
  • Page 63 Utilities...

  • Page 64: Appendix

    Appendix Serial Console User’s Guide 1. Introduction Most industrial implementations do not use a monitor or a key- board to interface between the user and the computer, instead connecting through a network or direct cable. ADLINK provides a function for users to obtain Power-On Self Test (POST) messages and execute commands using serial-port access.

  • Page 65: Seting Up The Server

    Figure 6-1: Null Modem Connection 3. Seting up the Server The server used in this guide is a CPU board where the Award Preboot Agent is integrated into the BIOS. Use the BIOS setup utility to setup the Serial Console. When you turn on the computer, the Award BIOS is immediately activated.

  • Page 66: How To Use The Serial Console

    Agent Connect Via This field is un-selectable. Only one connection mode is sup- ported: NULL. NULL means the connection cable is of null modem type. Agent wait time (min) This option selects the amount of time (in minutes) to wait for a successful connection.
  • Page 67 If your system does not have HyperTerminal installed, please use [Add/Remove Program Properties] in Control Panel to add it. Appendix...
  • Page 68 Make sure that HyperTerminal is checked. Appendix...
  • Page 69 Select HyperTerminal. Appendix...
  • Page 70 Run Hypertrm by double-clicking on the icon. Appendix...
  • Page 71 When executing HyperTerminal for the first time, you will be asked to install a modem before running HyperTerminal. Select “No”. Then, you will be asked to enter some configuration settings for your local area. After configuring the basic settings, HyperTerminal will need to build a connection node.
  • Page 72 Once you build a connection node, select the serial port that will be used to connect to the server. Appendix...
  • Page 73 On the properties page of the chosen serial port, the Bits per sec- ond setting must be the same as the baud rate setting of the server. Before using HyperTerminal to connect to the server, some prop- erties of the console must first be set. Select File --> Properties. Appendix...
  • Page 74 Check that the Telnet terminal mode is set to ANSI and select ASCII Setup. Appendix...
  • Page 75 To echo the data that the client sends, select all items on the ASCII Setup page. After HyperTerminal is setup and the connection cable is ready, power on the server. POST messages from server will be sent to the HyperTerminal Console as follows. Appendix...
  • Page 76 After the server computer boots into the OS, execute commands through the HyperTerminal console as shown. Note: Some keys, (i.e. DEL, ESC, Page Up, Page Down, Up Ar- row, Down Arrow, Left Arrow, Right Arrow) may not be rec- ognized by the server BIOS through the HyperTerminal Appendix...

  • Page 77: Table 6-1: Key Translation Sequences

    console. Use the following sequences to perform such ac- tions: Function Key Key Sequence Function Key Key Sequence HOME ESC [ 1 ~ PG UP ESC [ 5 ~ ESC [ 2 ~ PG DOWN ESC [ 6 ~ ESC [ 3 ~ UP ARROW ESC [ A ESC [ 4 ~...

  • Page 78: Warranty Policy

    Warranty Policy Thank you for choosing ADLINK. To understand your rights and enjoy all the after-sales services we offer, please read the follow- ing carefully. 1. Before using ADLINK’s products please read the user man- ual and follow the instructions exactly. When sending in damaged products for repair, please attach an RMA appli- cation form which can be downloaded from: http:// rma.adlinktech.com/policy/.
  • Page 79 3. Our repair service is not covered by ADLINK's two-year guarantee in the following situations: Damage caused by not following instructions in the user's manual. Damage caused by carelessness on the user's part dur- ing product transportation. Damage caused by fire, earthquakes, floods, lightening, pollution, other acts of God, and/or incorrect usage of voltage transformers.
