VLT®AutomationDrive EZ FC 321
Installation Guide
3-phase
91 (L1)
power
92 (L2)
input
93 (L3)
95
88 (-)
DC bus
89 (+)
50 (+10 V OUT)
+10 V DC
0/-10 V DC to
53 (A IN)
+10 V DC
0/4–20 mA
0/-10 V DC to
54 (A IN)
+10 V DC
0/4–20 mA
55 (COM A IN)
12 (+24 V OUT)
13 (+24 V OUT)
18 (D IN)
19 (D IN)
20 (COM D IN)
27 (D IN/OUT)
29
32 (D IN)
33 (D IN)
37 (D IN)

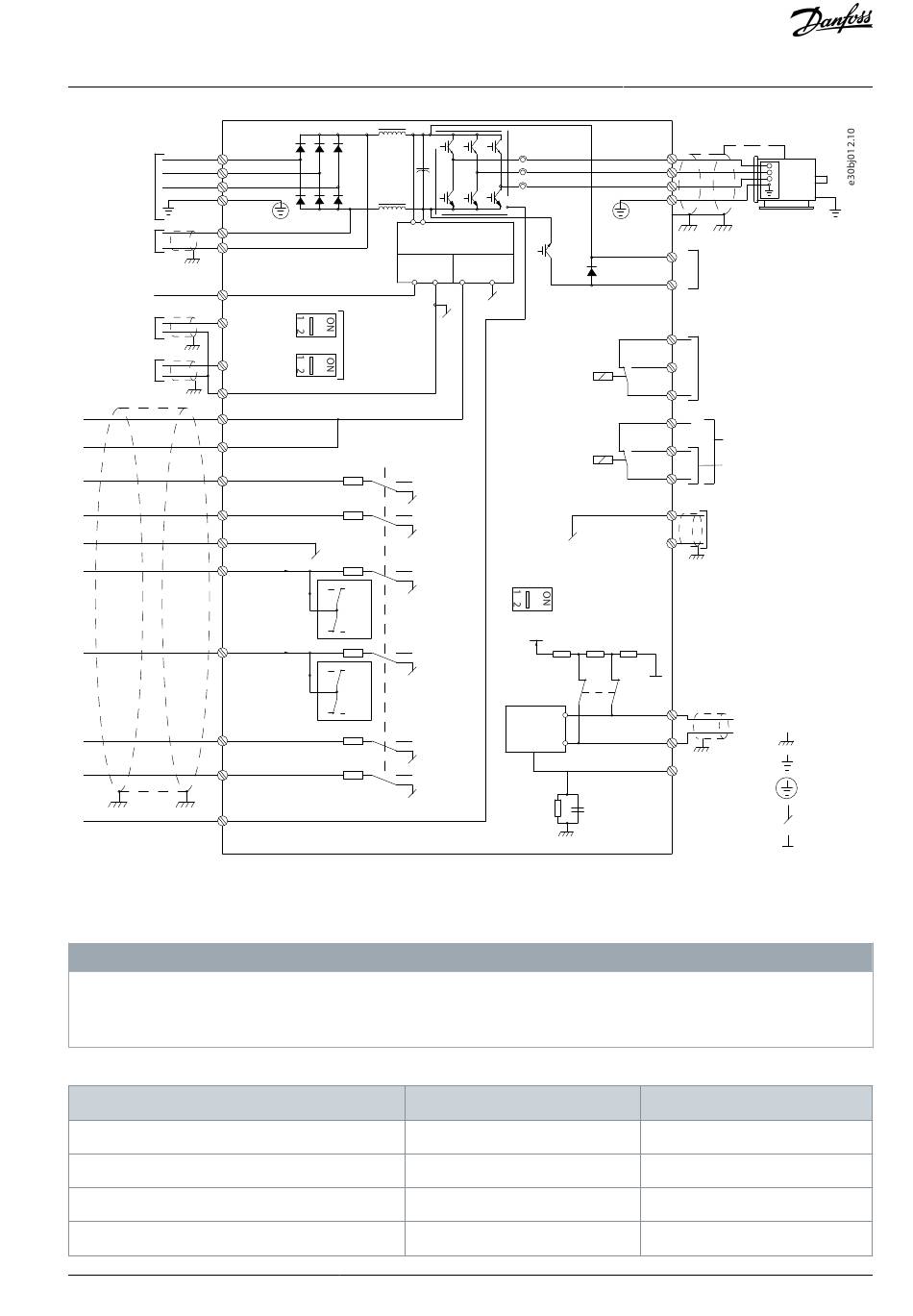

Illustration 5: Wiring Schematic

4.2 Cable Specifications

WIRE TYPE AND RATINGS
All wiring must comply with local and national regulations regarding cross-section and ambient temperature requirements. For
power connections, minimum 167 °F rated copper wire is recommended.
Table 5: Control Cable Specifications
Type of cable
Flexible wire without cable end sleeves
Rigid wire without cable end sleeves
Flexible wire with cable end sleeves
Flexible wire with cable end sleeves with collar
