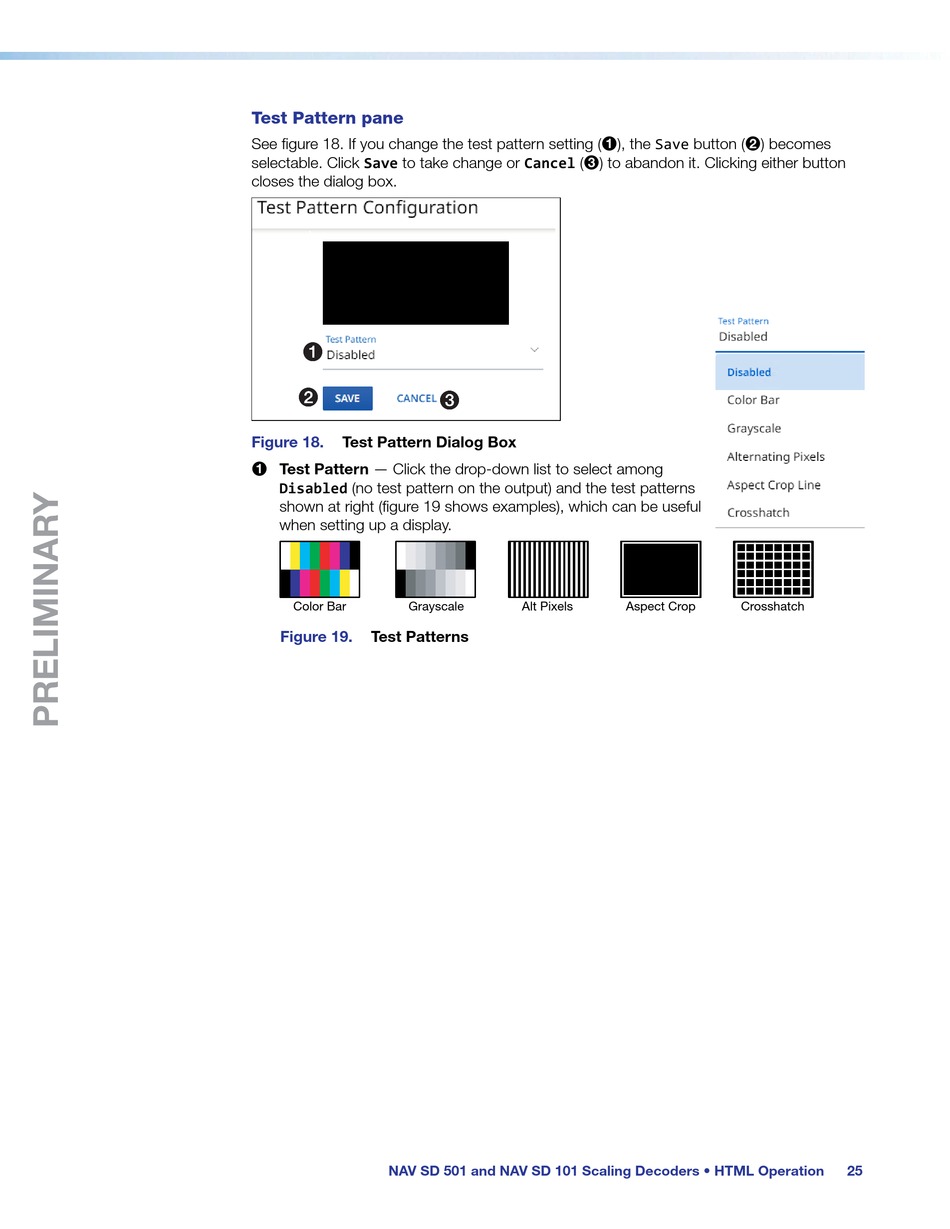

Test Pattern pane
See figure 18. If you change the test pattern setting (
selectable. Click Save to take change or Cancel (
closes the dialog box.
1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1
2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2
Figure 18. Test Pattern Dialog Box
Test Pattern — Click the drop-down list to select among
1
Disabled (no test pattern on the output) and the test patterns
shown at right (figure 19 shows examples), which can be useful
when setting up a display.
Color Bar Grayscale
Figure 19. Test Patterns
NAV SD 501 and NAV SD 101 Scaling Decoders • HTML Operation
