Product Description

Properties and features

4
Product Description
The TN-M...-IOL2-H1141 cylindrical read/write heads are provided with a metal housing with
an M18 or M30 male thread. The TN-Q40-IOL2-H1141 rectangular read/write heads are
provided with a plastic housing.
The devices can be set and operated via an IO-Link interface. All devices are provided with a
metal-bodied M12 male connector (plug) for connecting the cable.

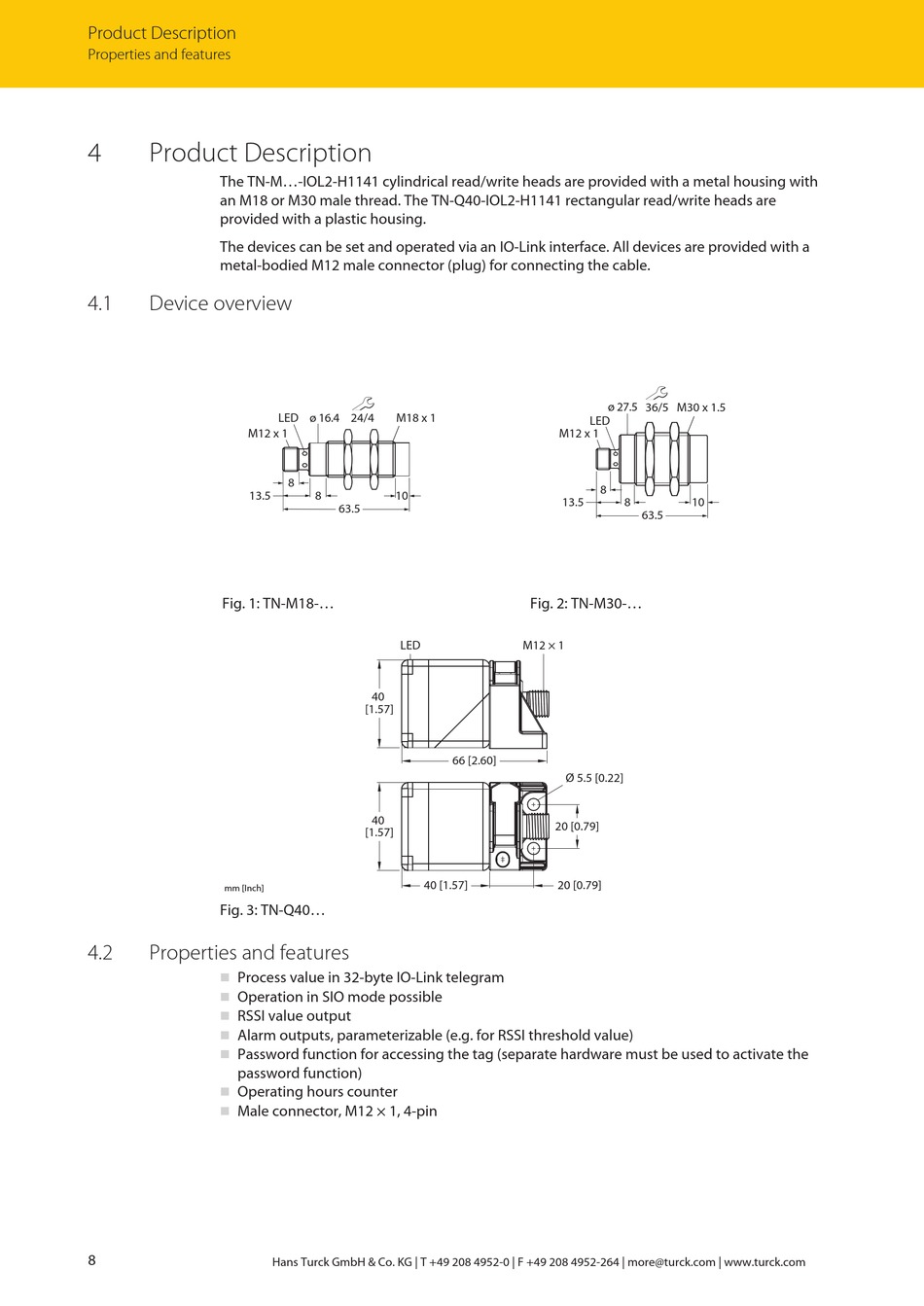

4.1

Device overview

M12 x 1
13.5
Fig. 1: TN-M18-...
mm [Inch]
Fig. 3: TN-Q40...
4.2
Properties and features
Process value in 32-byte IO-Link telegram
n
Operation in SIO mode possible
n
RSSI value output
n
Alarm outputs, parameterizable (e.g. for RSSI threshold value)
n
n
Password function for accessing the tag (separate hardware must be used to activate the
password function)
Operating hours counter
n
Male connector, M12 × 1, 4-pin
n
8
LED ø 16.4
24/4
M18 x 1
8
8
10
63.5
LED
40
[1.57]
40
[1.57]
40 [1.57]
Hans Turck GmbH & Co. KG | T +49 208 4952-0 | F +49 208 4952-264 | more@turck.com | www.turck.com
ø 27.5
LED
M12 x 1
8
13.5
8
Fig. 2: TN-M30-...
M12 × 1
66 [2.60]
Ø 5.5 [0.22]
20 [0.79]
20 [0.79]
36/5
M30 x 1.5
10
63.5
