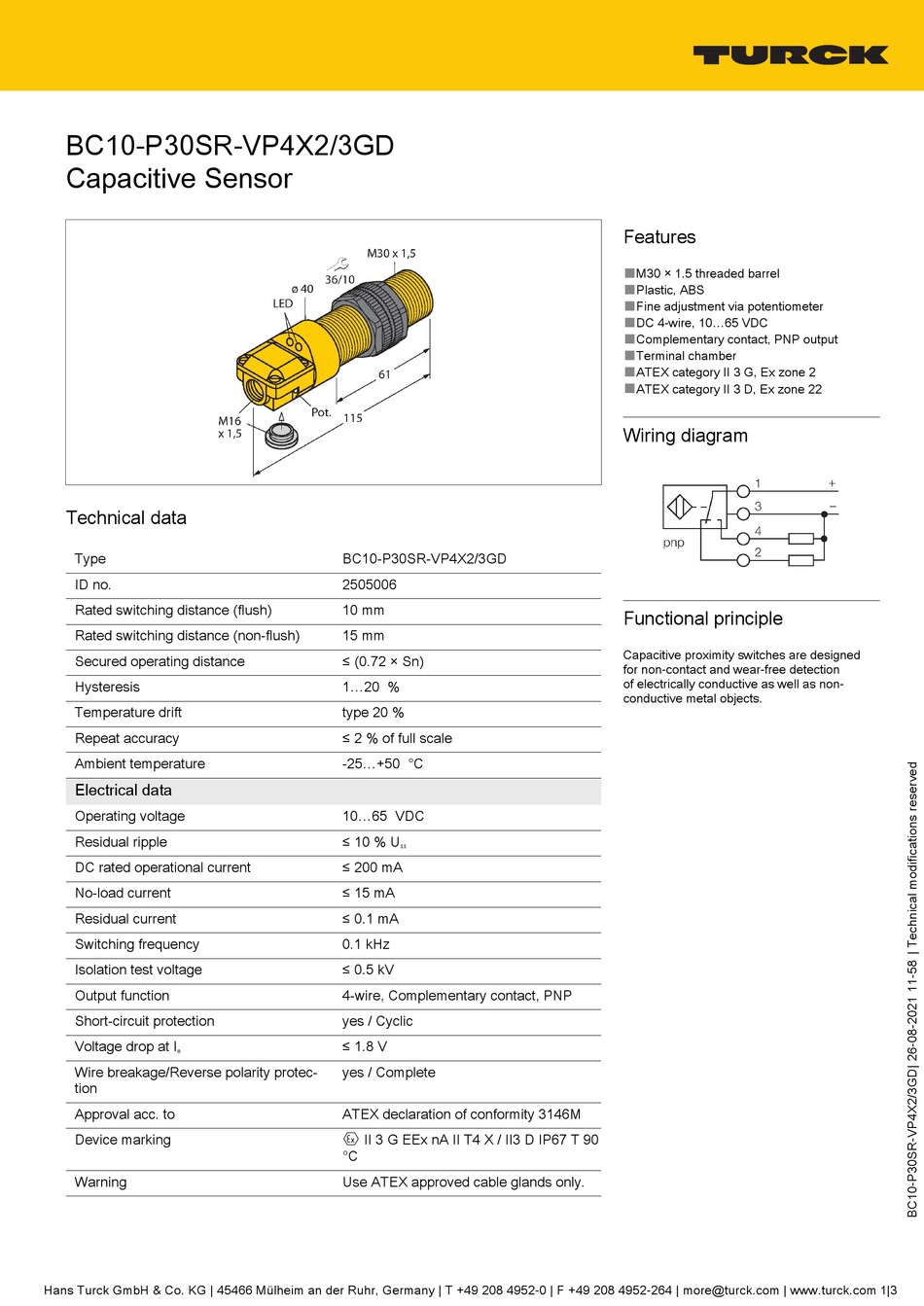

turck BC10-P30SR-VP4X2/3GD Operating Instructions

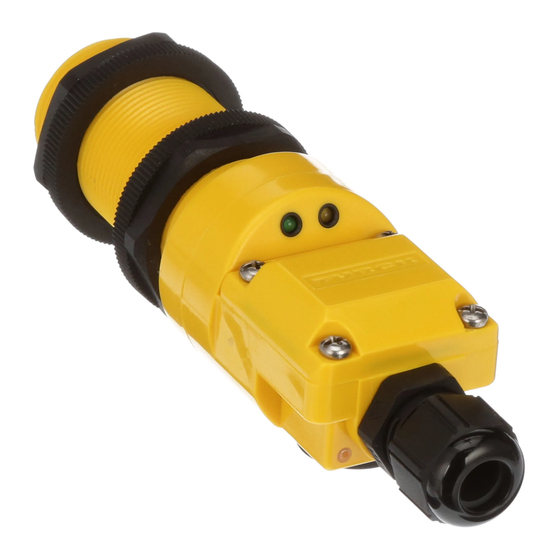

BC10-P30SR-VP4X2/3GD
Capacitive Sensor
Technical data
Type
ID no.
Rated switching distance (flush)
Rated switching distance (non-flush)
Secured operating distance
Hysteresis
Temperature drift
Repeat accuracy
Ambient temperature
Electrical data
Operating voltage
Residual ripple
DC rated operational current
No-load current
Residual current
Switching frequency
Isolation test voltage
Output function
Short-circuit protection
Voltage drop at I
e
Wire breakage/Reverse polarity protec-
tion
Approval acc. to
Device marking
Warning
Hans Turck GmbH & Co. KG | 45466 Mülheim an der Ruhr, Germany | T +49 208 4952-0 | F +49 208 4952-264 | more@turck.com | www.turck.com 1|3
BC10-P30SR-VP4X2/3GD
2505006
10 mm
15 mm
≤ (0.72 × Sn)
1...20 %
type 20 %
≤ 2 % of full scale
-25...+50 °C
10...65 VDC
≤ 10 % U
ss
≤ 200 mA
≤ 15 mA
≤ 0.1 mA
0.1 kHz
≤ 0.5 kV
4-wire, Complementary contact, PNP
yes / Cyclic
≤ 1.8 V
yes / Complete
ATEX declaration of conformity 3146M
É II 3 G EEx nA II T4 X / II3 D IP67 T 90
°C
Use ATEX approved cable glands only.
Features
■
M30 × 1.5 threaded barrel
■
Plastic, ABS
■
Fine adjustment via potentiometer
■
DC 4-wire, 10...65 VDC
■
Complementary contact, PNP output
■
Terminal chamber
■
ATEX category II 3 G, Ex zone 2
■
ATEX category II 3 D, Ex zone 22
Wiring diagram
Functional principle
Capacitive proximity switches are designed
for non-contact and wear-free detection
of electrically conductive as well as non-
conductive metal objects.
