Installing

5.1

Installing cylindrical devices

The maximum tightening torque of the housing nut is 25 Nm (M18 design) and 70 Nm (M30
design).
„ Install the device with the appropriate fixing accessories so that the front cap of the
devices fully protrudes from the surrounding area.
„ Observe the minimum distances between read/write heads.

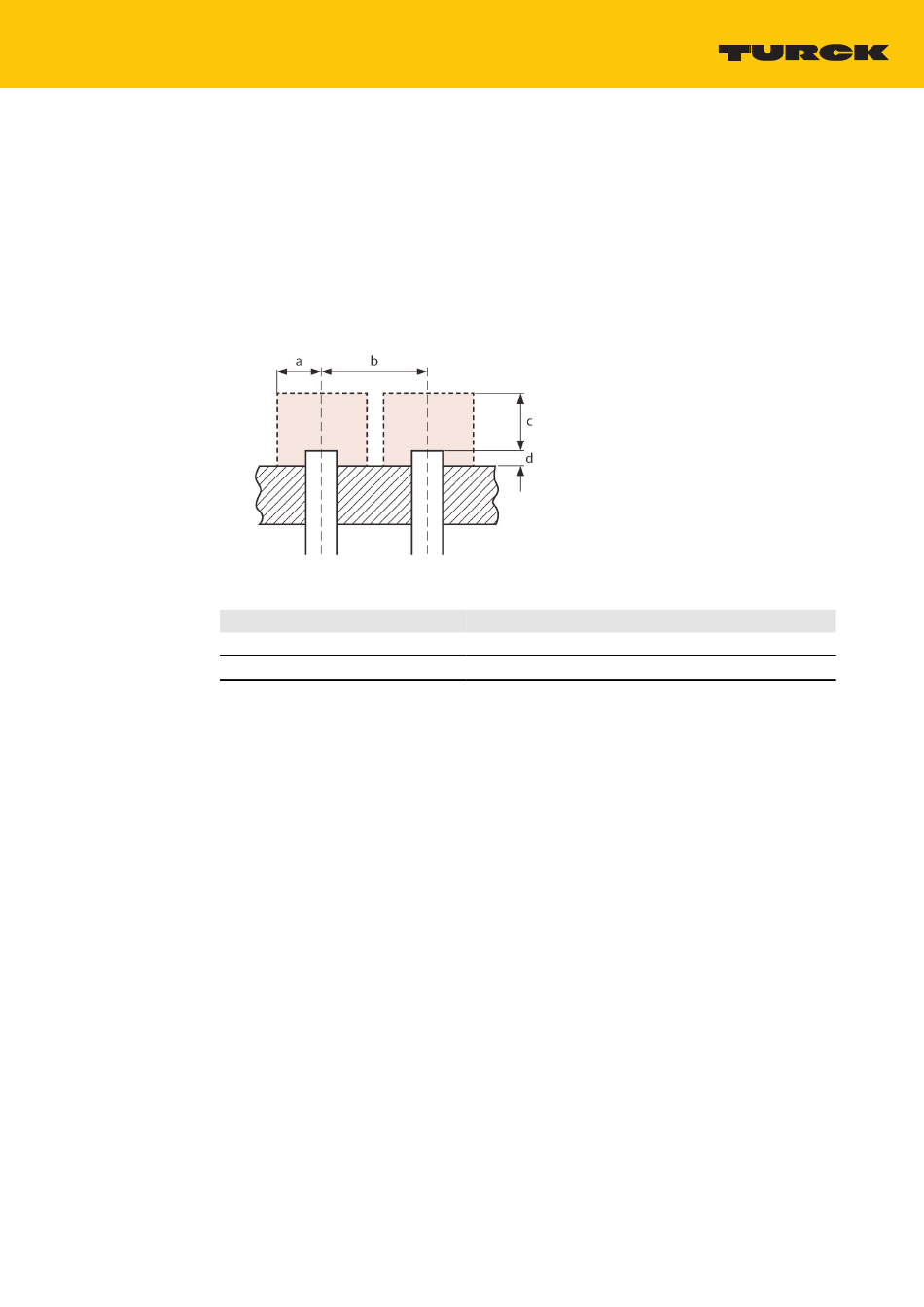

Fig. 5: Mounting distances
M18
M30
„ Avoid metal in the proximity of the read/write head. Metal rails or similar objects must
not intersect the transmission zone.
„ Protect the device from heat radiation, rapid temperature fluctuations, severe contamin-
ation, electrostatic charge and mechanical damage.
V01.00 | 2021/05
a b
30 mm 54 mm
45 mm 90 mm
c d
60 mm 10 mm
90 mm 10 mm
