turck BL ident TW-R50-K2-Ex Operating Manual

Mobile data carrier
TW-R50-K2-Ex
Type code
Ident no.
Data transfer
Operating frequency
Memory type
Chip
Memory
Memory
Freely usable memory
Number of read operations
Number of write operations
Typical read time
Typical write time
Radio communication and protocol standards
Minimum distance to metal
Ambient temperature
Device designation
Approval acc. to
Diameter
Internal diameter
Housing height
Housing material
Material active area
Protection class
Packaged quantity
Special features
1 / 3 Hans Turck GmbH & Co.KG ñ D-45472 Mülheim an der Ruhr ñ Witzlebenstraße 7 ñ Tel. 0208 4952-0 ñ Fax 0208 4952-264 ñ more@turck.com ñ www.turck.com
TW-R50-K2-Ex
7030247
inductive coupling
13.56 MHz
FRAM
Fujitsu MB89R118
2048 byte
read/write
2000 byte
unlimited
10 10
0.5 ms/byte
0.5 ms/byte
ISO 15693
10 mm
-25...+85 °C
in the explosion hazardous area see instruction
leaflet
Ex II 2 G Ex ia IIC T4/T6 II 2D Ex iaD 21 T110°C
BVS 09 ATEX E 036 X

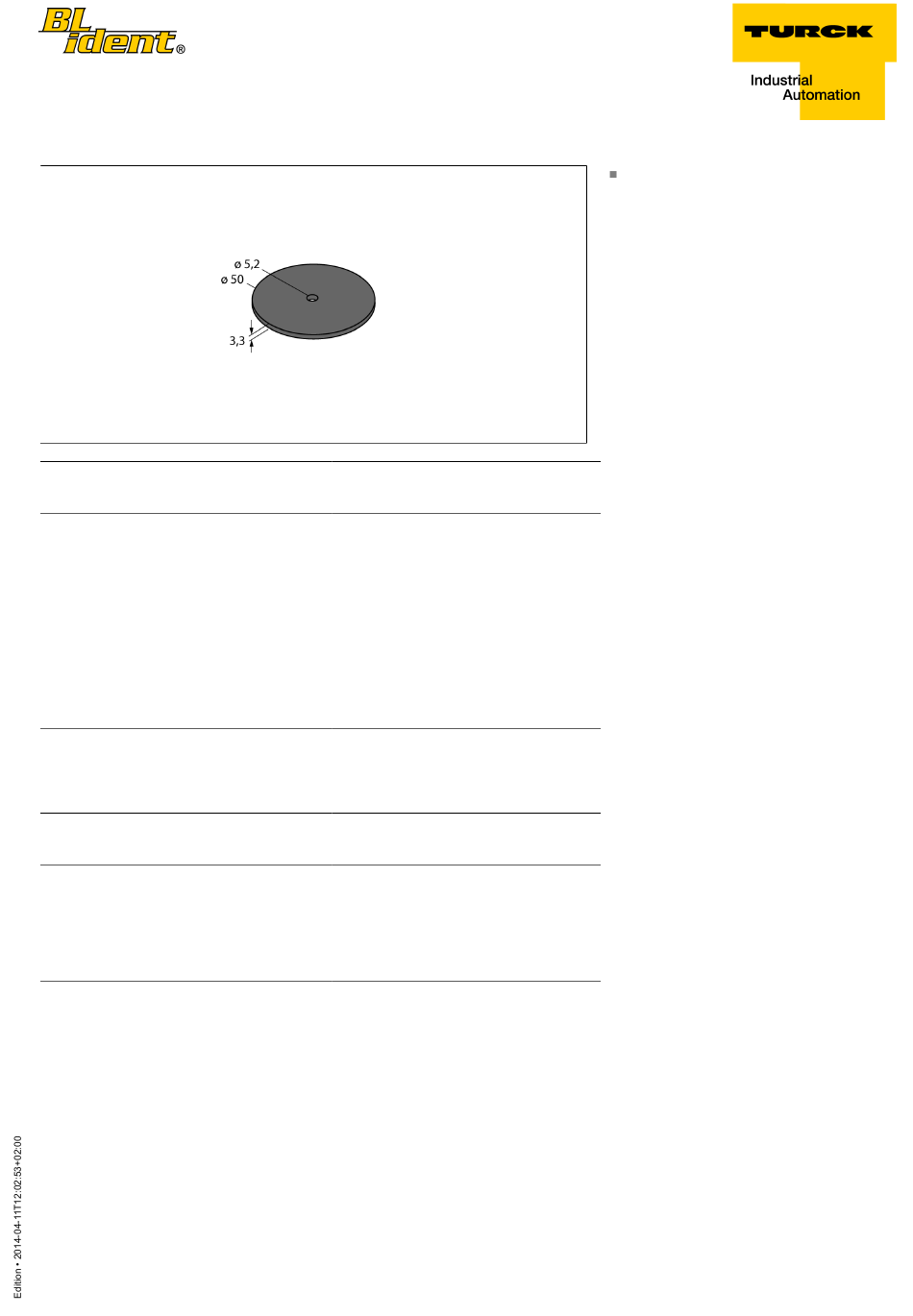

50 mm +/- 0.5 mm mm
5.2 mm +/- 0.3 mm mm
3.3 mm +/- 0.5 mm mm
plastic, PA
Plastic, Black, PA
IP69K
1
ATEX
FRAM memory 2 kbyte
Functional principle
The HF read/write heads operating at a fre-
quency of 13.56 MHz, form a transmission
zone the size of which (0...500 mm) varies,
depending on the combination of read/write
head and data carrier.
The read/write distances mentioned here on-
ly represent standard values measured under
laboratory conditions and free from any influ-
ences caused by materials.
The read/write distances of data carriers suit-
able for mounting in/on metal were deter-
mined in/on metal.
Attainable distances may vary by up to 30 %
due to component tolerances, mounting con-
ditions, ambient conditions and material quali-
ties (especially when mounted in metal)
Testing of the application under real operat-
ing conditions is therefore essential, especial-
ly with read/write on-the-fly!
