MVI69E-LDM-MQTT ♦ MQ Telemetry Transport
CompactLogix® Platform
11 Select the String tag and write multiple 9s(as an example) as indicated in the
following image.
12 Click on the [Write Once] blue button. This will cause the MVI69E-LDM-MQTT to
send the string of 9s to the PLC.
This concludes the MVI69E-LDM-MQTT client publishing and subscribing
functionality within the Ignition environment.
ProSoft Technology, Inc.

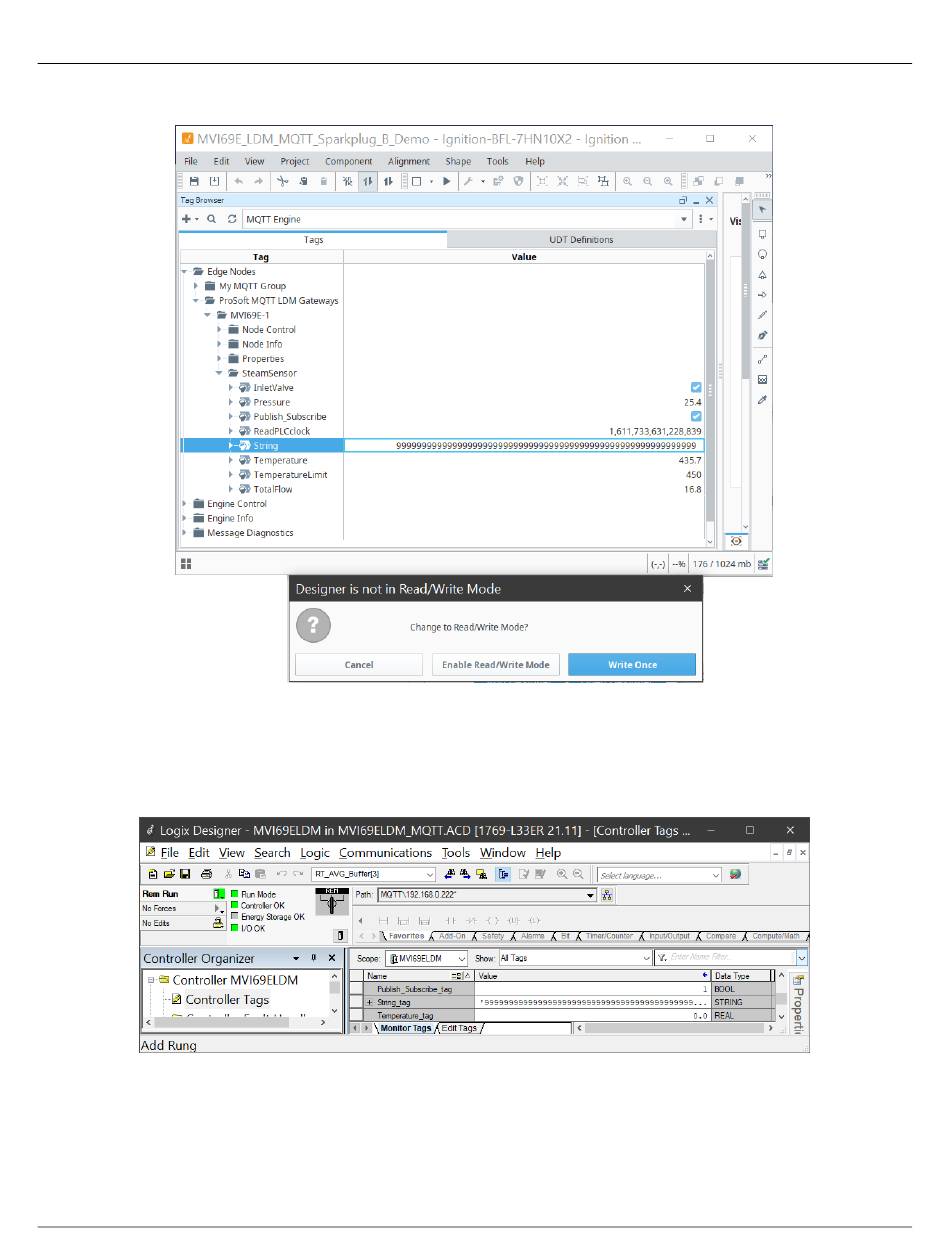

Figure 39: Selecting the String tag
Figure 40: Sending the string to the PLC
MQTT SparkplugB Example
Quick Start Guide
Page 39 of 54
