Connecting to the MVI69E-LDM
3.1
Physical Connections
1
With the MVI69E-LDM in the CompactLogix rack, connect the top Ethernet port to
your local network, and connect to the Windows 10 PC.
2
Use the middle Ethernet port to connect to the network where the MQTT broker is
running.
3
Use the bottom port to connect the Windows 10 PC via USB to a 1756-EN2T
module. This is for debugging purposes using TeraTerm (Open Source Telnet
terminal).

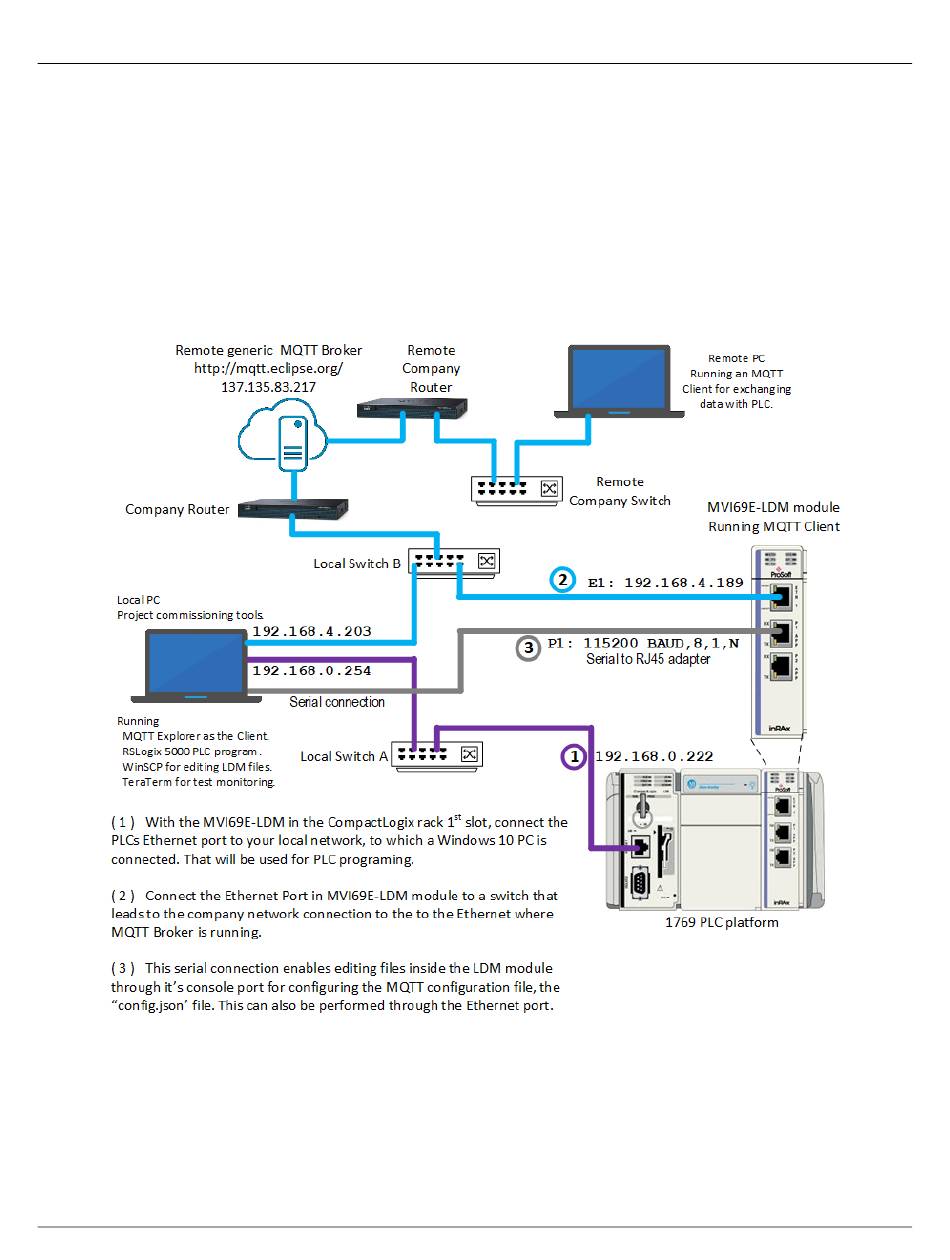

Figure 1: MVI69E-LDM-MQTT Generic Type Communication Topology
