MVI69E-LDM-MQTT ♦ MQ Telemetry Transport
CompactLogix® Platform
5.2
Configuring the CompactLogix PLC
1
Open the MVI69E_LDM_MQTT_SparkplugB_Sample_Ladder.ACD program and
change the appropriate chassis type to match your hardware and firmware.
2
Download MVI69E_LDM_MQTT_SparkplugB_Sample_Ladder.ACD file to the
CompactLogix processor by choosing C
D
OWNLOAD
ProSoft Technology, Inc.

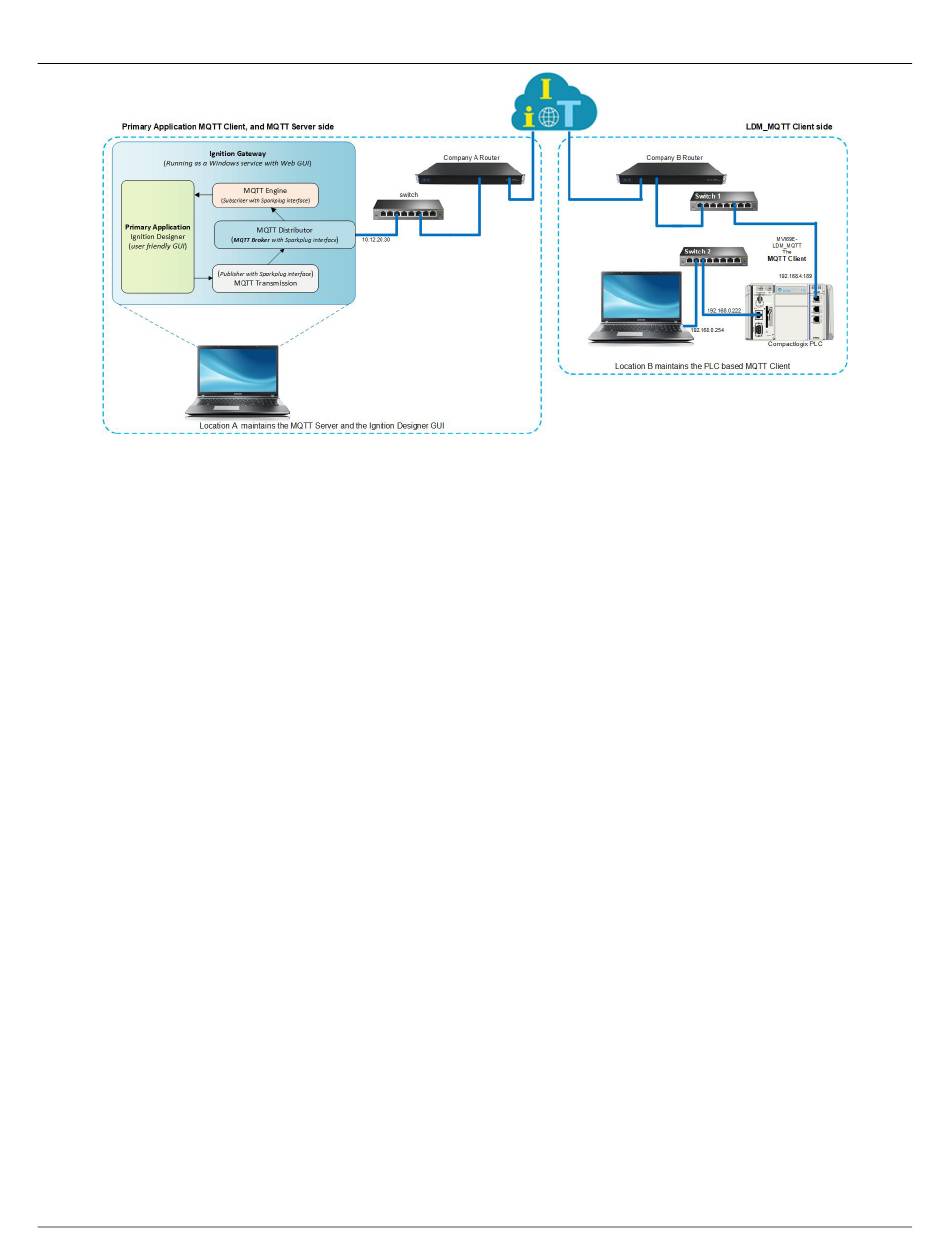

Figure 17: Sparkplug-B Configuration
.
> W
OMMUNICATIONS
HO
MQTT SparkplugB Example
Quick Start Guide
A
>
CTIVE
Page 25 of 54
