5.4.3 Configuring the MQTT Subscribing Client and MQTT Engine Within
Ignition
This section covers the basic configuration for the MQTT Engine file that behaves as the
MQTT subscribing client within the Ignition application.
1 Click on the Config > MQTT Engine Settings button.
2 Enter the indicated values for the specific parameters as displayed in the General
tab, as shown below:

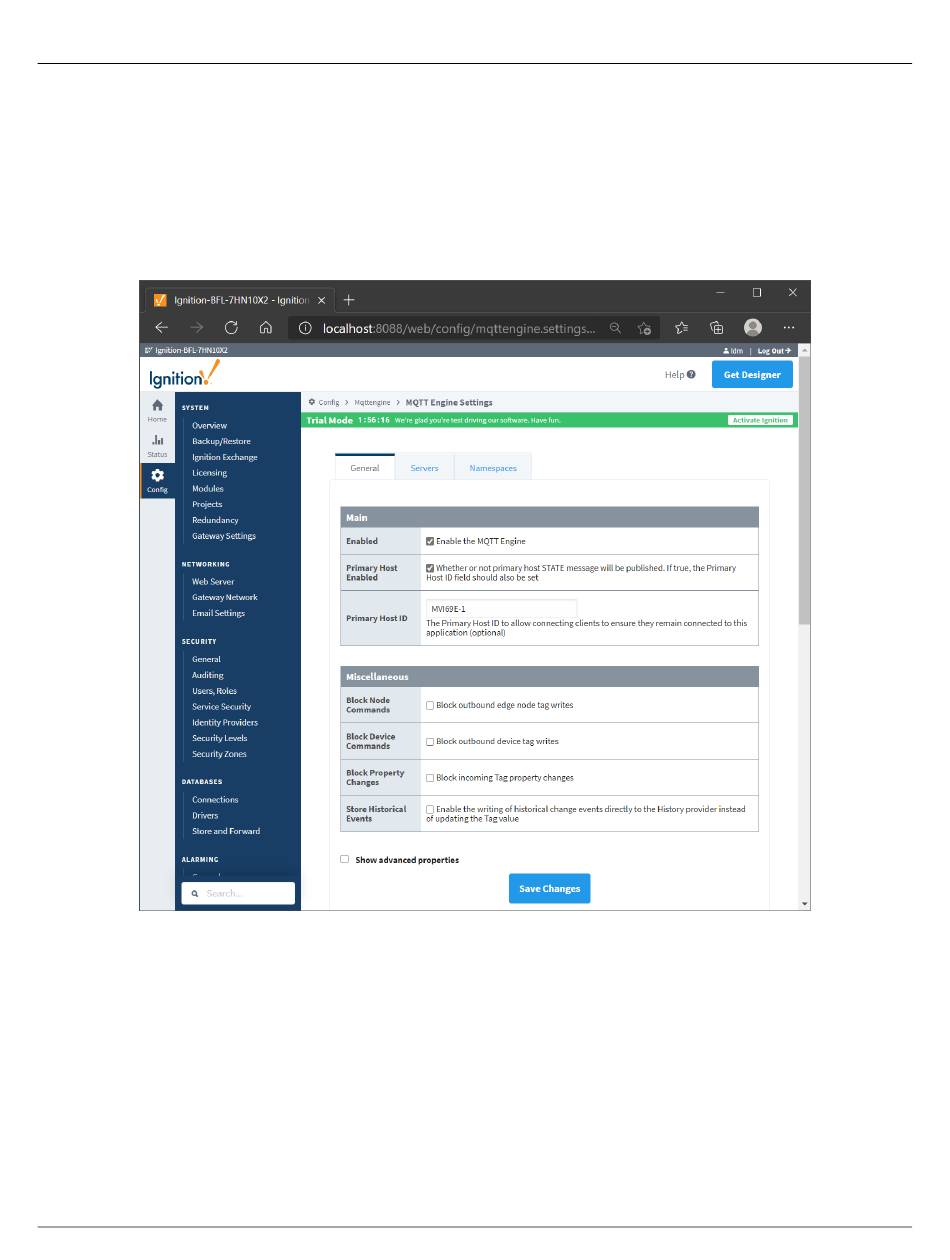

Figure 27: Configuration Parameters for MQTT Engine. This is the MQTT Subscribing Client.
3 Click the S
ProSoft Technology, Inc.
C button.
AVE HANGES
