6 Click on the B
7 Click S
AVE
MQTT Explorer displays the topics entered in step 5.
Expand the Publish section in the center panel, and add "/Set" to end of the topic
8
name (so it will be equal to the value of the "SubscribeTopic":
"SteamSensor/Publish_Subscribe/Set" field, in the config.json file). Select payload
format type raw.
ProSoft Technology, Inc.
button.
ACK
and then the C
ONNECT

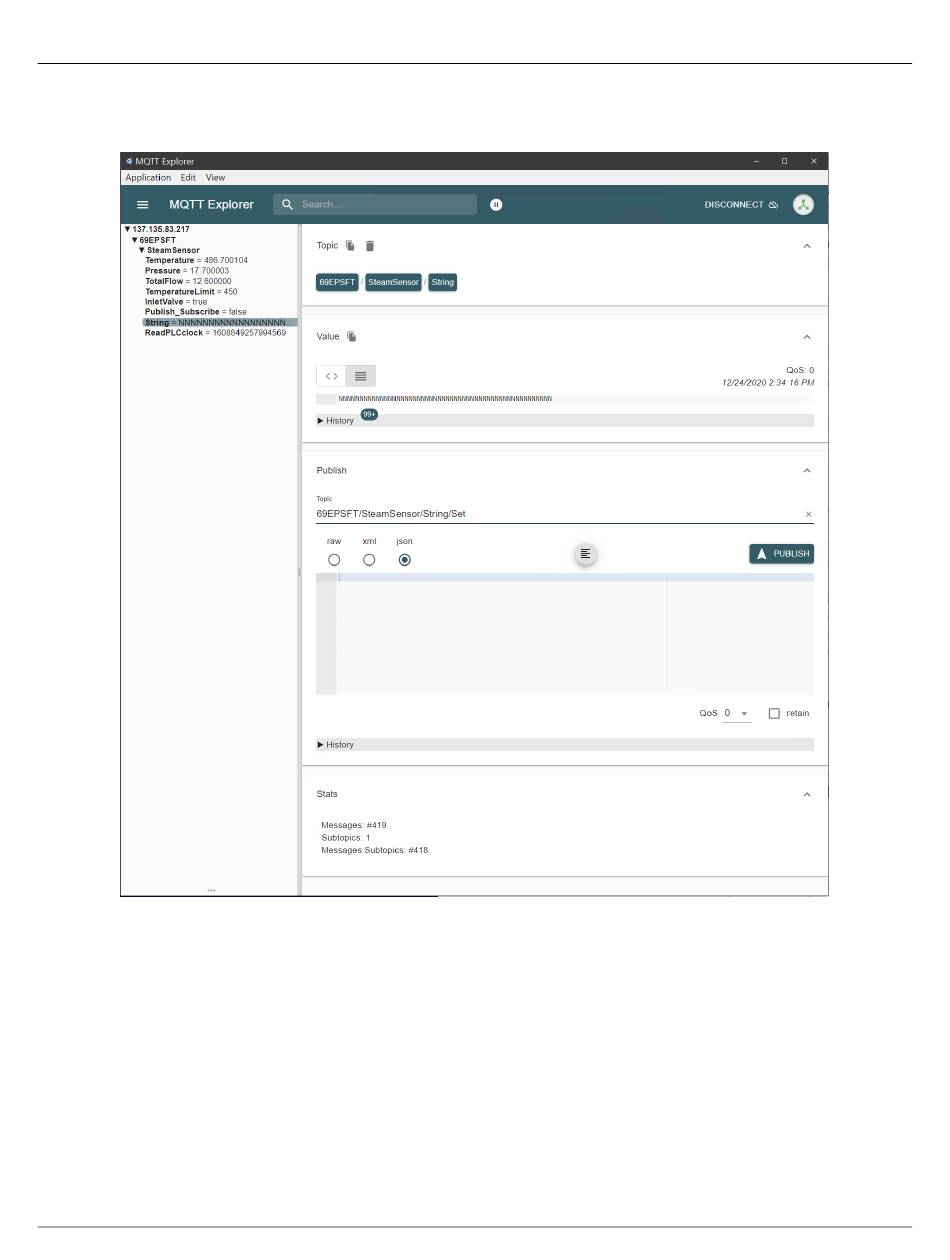

Figure 9: MQTT Explorer Main Display
button.
