MVI69E-LDM-MQTT ♦ MQ Telemetry Transport
CompactLogix® Platform
8

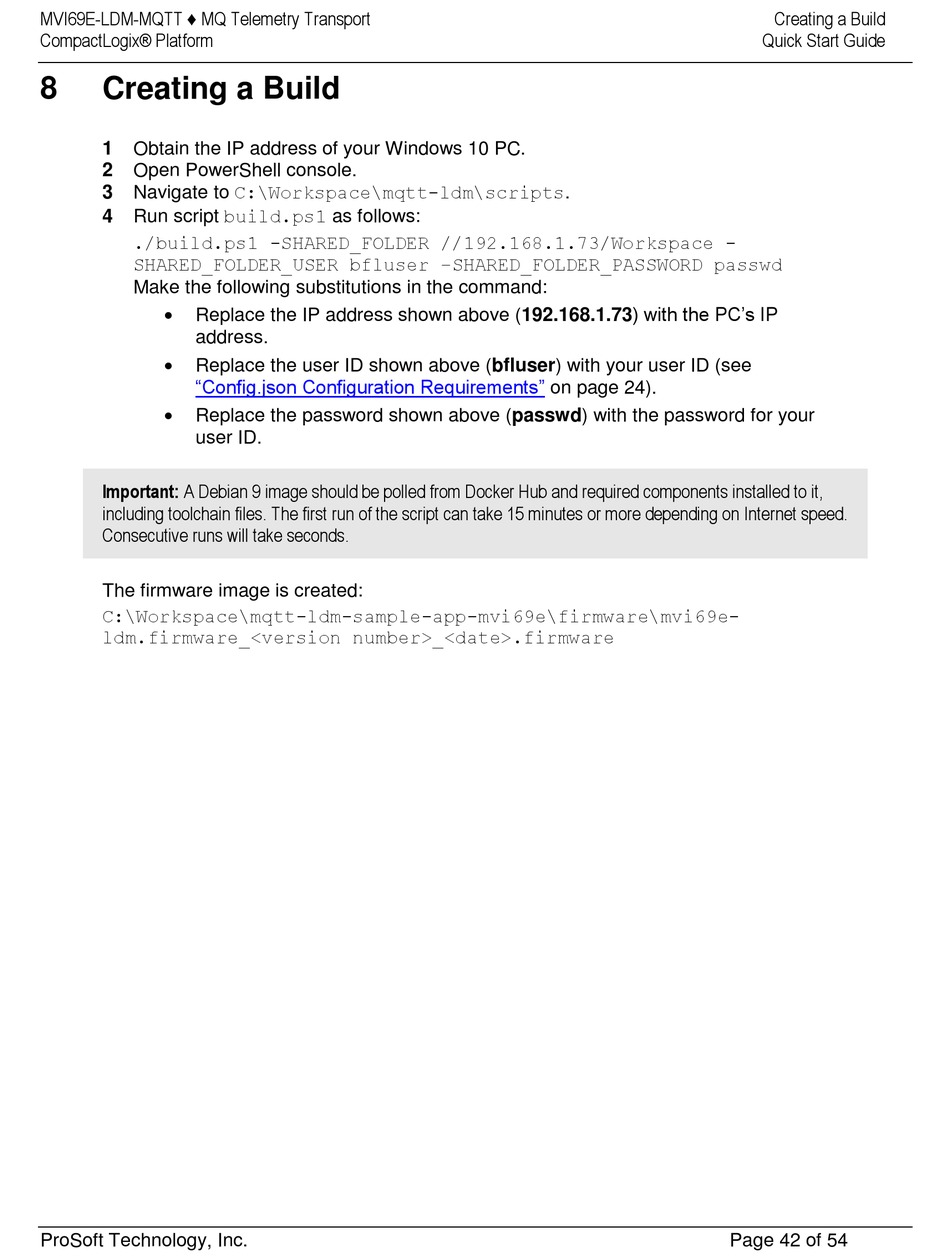

Creating a Build
1
Obtain the IP address of your Windows 10 PC.
2
Open PowerShell console.
Navigate to C:\Workspace\mqtt-ldm\scripts.
3
Run script build.ps1 as follows:
4
./build.ps1 -SHARED_FOLDER //192.168.1.73/Workspace -
SHARED_FOLDER_USER bfluser –SHARED_FOLDER_PASSWORD passwd
Make the following substitutions in the command:
Replace the IP address shown above (192.168.1.73) with the PC's IP
address.
Replace the user ID shown above (bfluser) with your user ID (see
"Config.json Configuration Requirements"
Replace the password shown above (passwd) with the password for your
user ID.
Important: A Debian 9 image should be polled from Docker Hub and required components installed to it,
including toolchain files. The first run of the script can take 15 minutes or more depending on Internet speed.
Consecutive runs will take seconds.
The firmware image is created:
C:\Workspace\mqtt-ldm-sample-app-mvi69e\firmware\mvi69e-
ldm.firmware_<version number>_<date>.firmware
ProSoft Technology, Inc.
on page 24).
Page 42 of 54
Creating a Build
Quick Start Guide
