MVI69E-LDM-MQTT ♦ MQ Telemetry Transport
CompactLogix® Platform

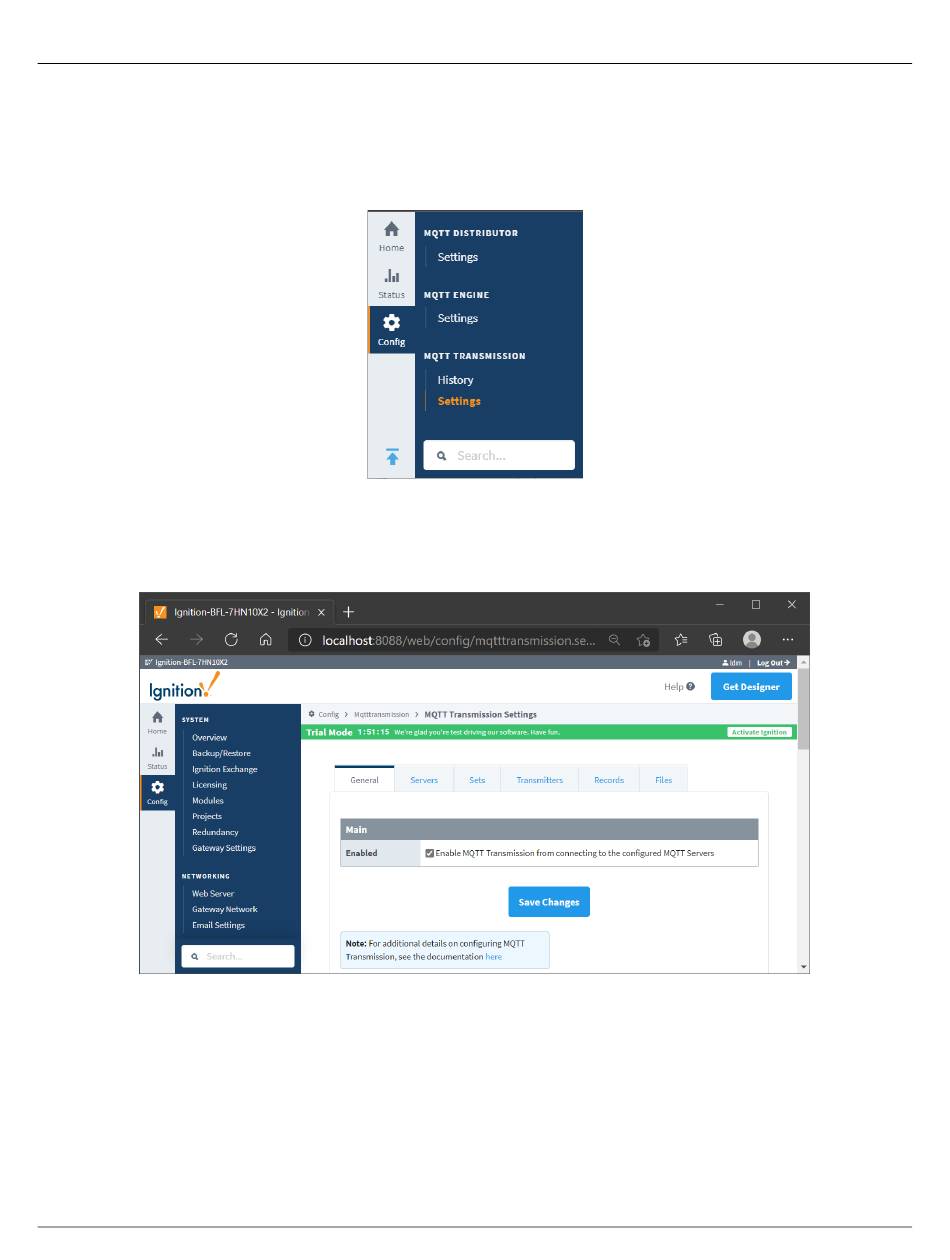

5.4.4 Configuring the MQTT Publishing Client and MQTT Transmission
Within Ignition
This section covers the basic configuration for the MQTT Transmission file that behaves
as the MQTT Publishing Client within the Ignition application.
1
Click on the Config > MQTT Transmission Settings button.
2
Enter the values as indicated below: Enabled check mark required only.
3
Click on the S
ProSoft Technology, Inc.
Figure 28: Engine Settings
Figure 29: MQTT Transmission Parameters
C
button.
AVE
HANGES
MQTT SparkplugB Example
Quick Start Guide
Page 32 of 54
