MVI69E-LDM-MQTT ♦ MQ Telemetry Transport
CompactLogix® Platform
3.2.1 Firmware Update
1
Obtain the .firmware file from the MVI69E-LDM-MQTT zip file, or that was built in the
"Creating a Build"
Download the .firmware file to the module via the module's webpage. Refer to the
2
MVI69E-LDM Developer Manual for details.
3
At the end of the Firmware Update process, the module reboots and connections to
the module are lost during reboot.
4
The sample application starts running automatically after reboot. It still needs to be
configured.
ProSoft Technology, Inc.
section in this document.

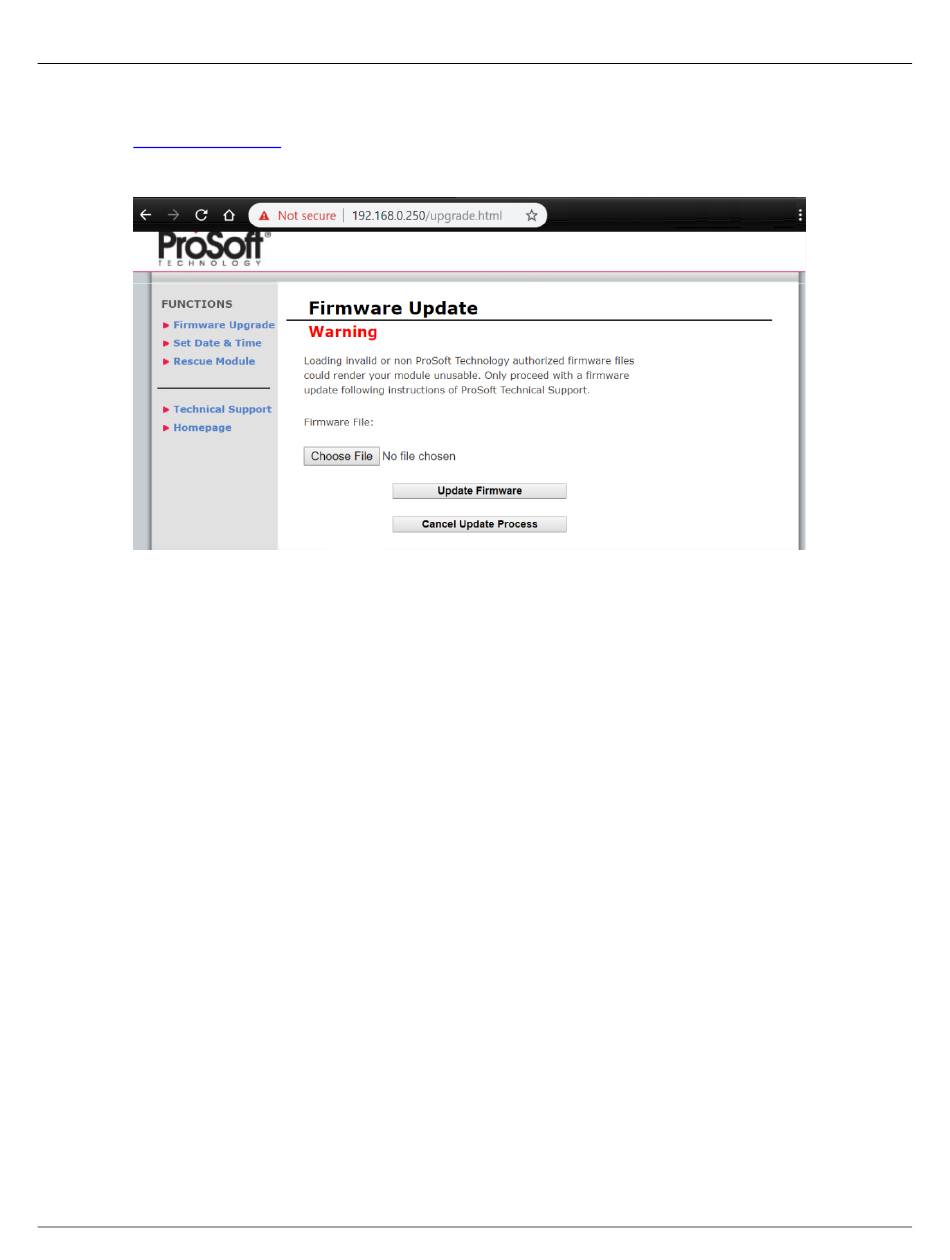

Figure 3: Firmware Update Page
Connecting to the MVI69E-LDM
Quick Start Guide
Page 12 of 54
