MVI56E-LDM-MQTT ♦ MQ Telemetry Transport
ControlLogix® Platform
5.4.3 Configuring the MQTT Publishing Client and MQTT Transmission
Within Ignition
This section covers the basic configuration for the MQTT Transmission file that
behaves as the MQTT Publishing Client within the Ignition application.
1 Click on the C
2 Enter the values as indicated below:
3 The values entered here must match the same parameter values in the
config.json file (located inside the module).
ProSoft Technology, Inc.
> MQTT T
ONFIG RANSMISSION

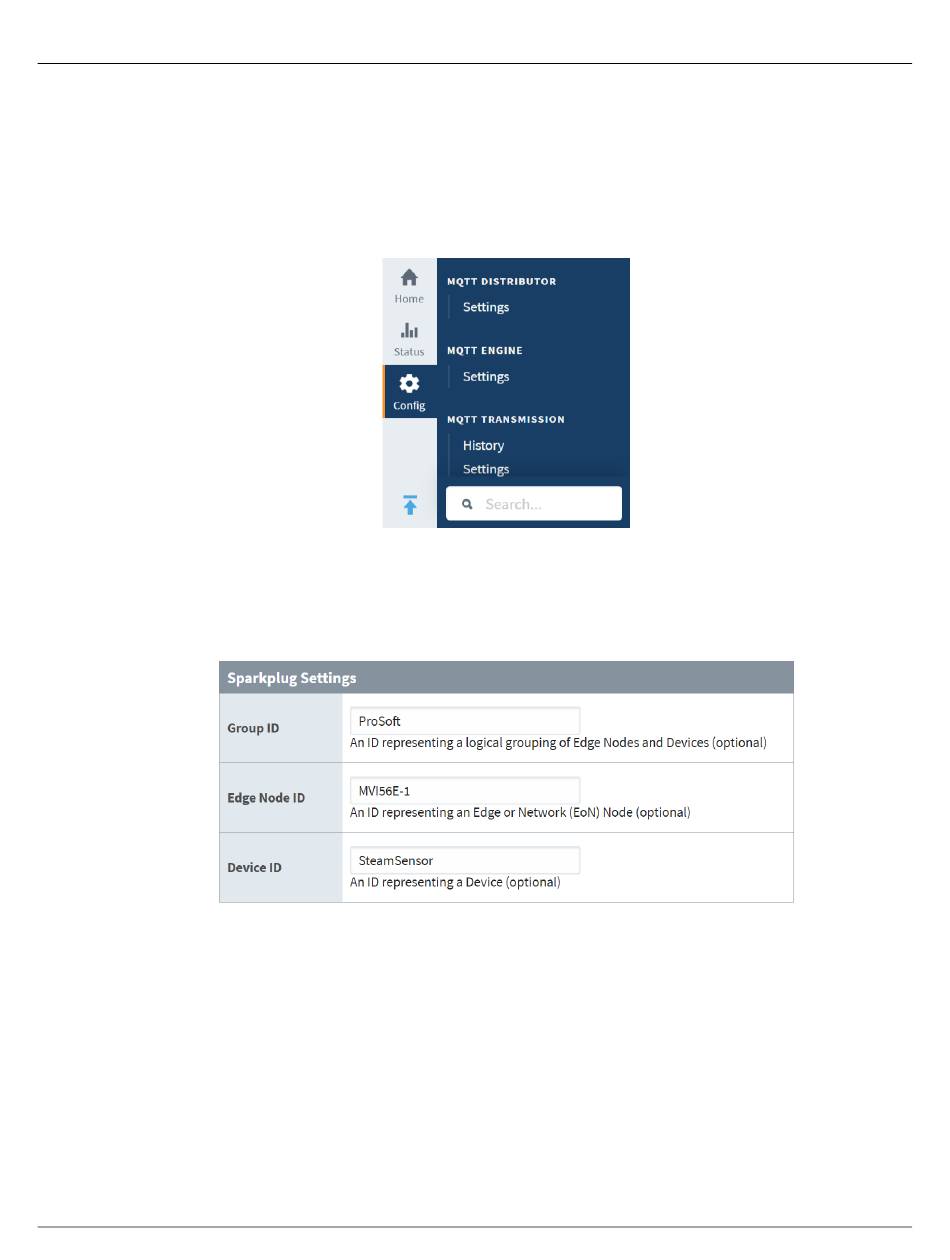

Figure 31: Engine Settings
Figure 32: MQTT Transmission Parameters
MQTT SparkplugB Example
S button.
ETTINGS
Quick Start Guide
Page 32 of 55
