5.4.2 Configuring the MQTT Subscribing Client and MQTT Engine Within
Ignition
This section covers the basic configuration for the MQTT Engine file that behaves as the
MQTT Subscribing Client within the Ignition application.
1 Click on the C
2 Enter the indicated values for the specific parameters as displayed in the General
tab, as shown below:
3 Click the S
ProSoft Technology, Inc.
> MQTT E
ONFIG NGINE

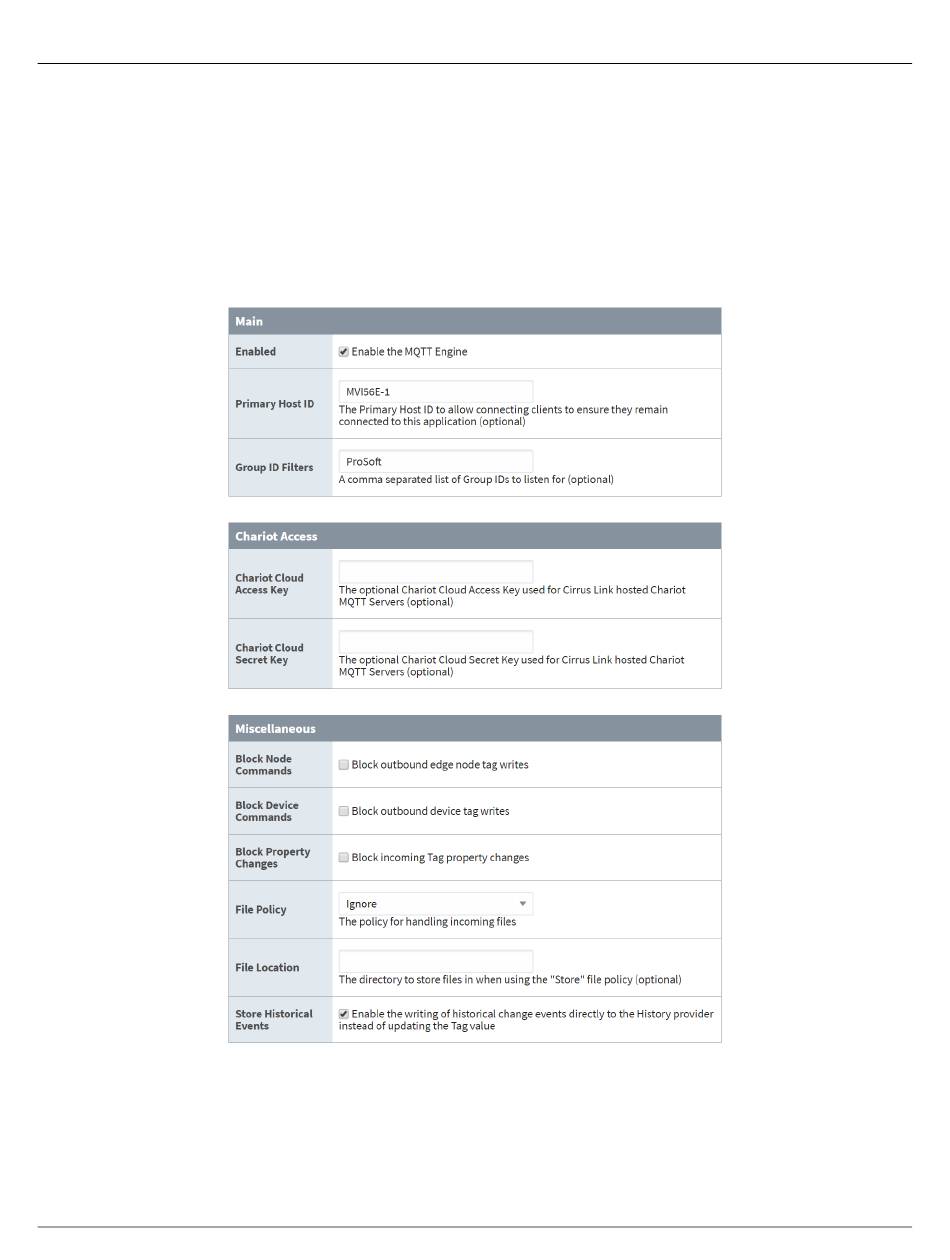

Figure 30: Configuration Parameters
C button.
AVE HANGES
MQTT SparkplugB Example
S button.
