Opening the 6386E/33 WGS
Follow these steps to remove the cover:
1
Be sure the system power is turned OFF, and if any cables have been
connected to the system module, disconnect them.
2
Unlock the cover lock. (A set of keys is packed in a plastic bag in the
carton with the system module.)
3 Remove the top cover (B) of the system by lifting from the rear.
4 Loosen the cover retaining screw (A) as shown in Figure 2-6.
5 Slide the cover off the chassis by moving it forward.

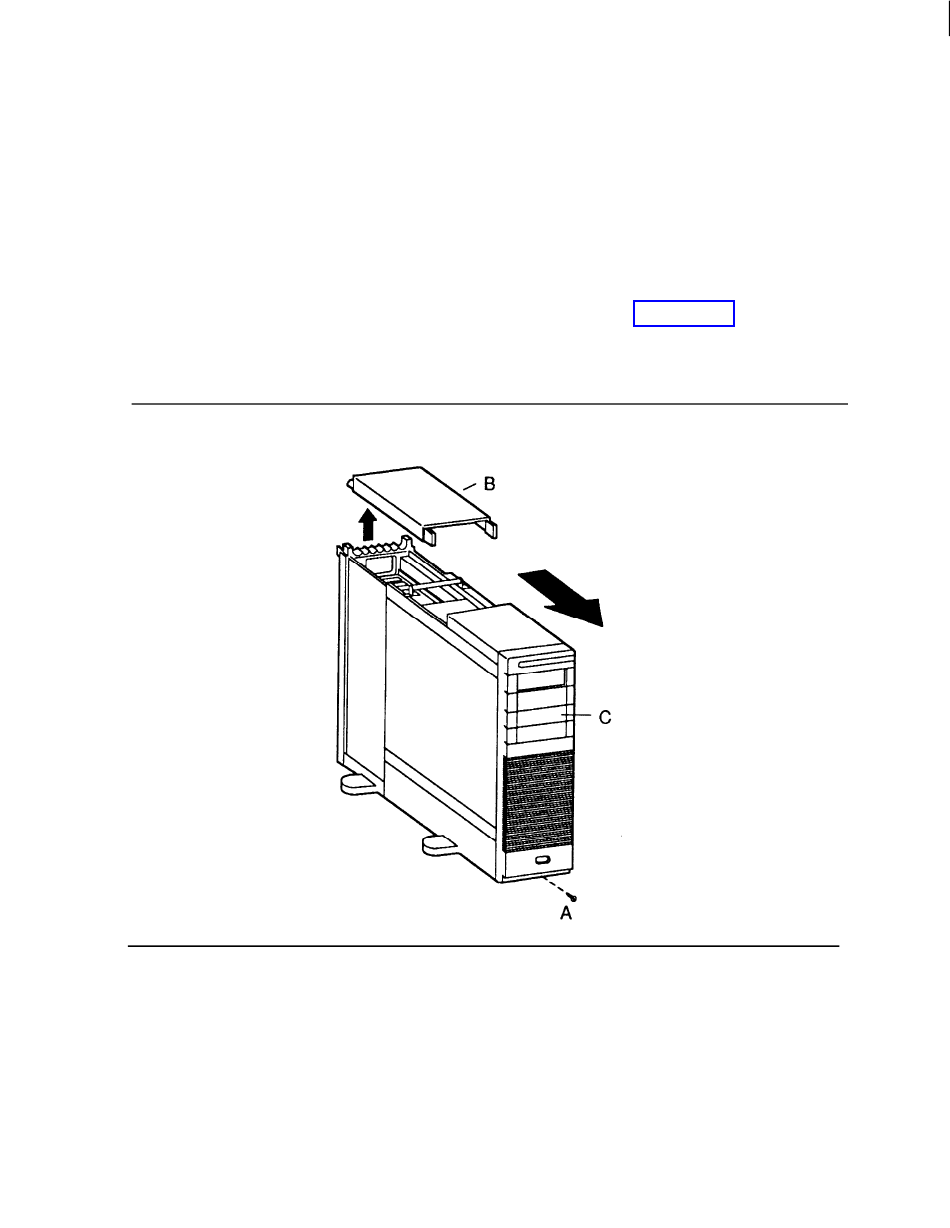

FIGURE 2-6 6386E/33 WGS Removing Outside Cover
Hardware Installation
2-11
