BOOM TRANSPORT, UNLOADING & SET-UP GUIDE
VERSION 4
17. Connect all spray lines (spot, blanket (if applicable)
and fence line) and all WEED-IT / electrical
connections between the main boom and tip sections.
8
BT-OMWEED-TRANS v4

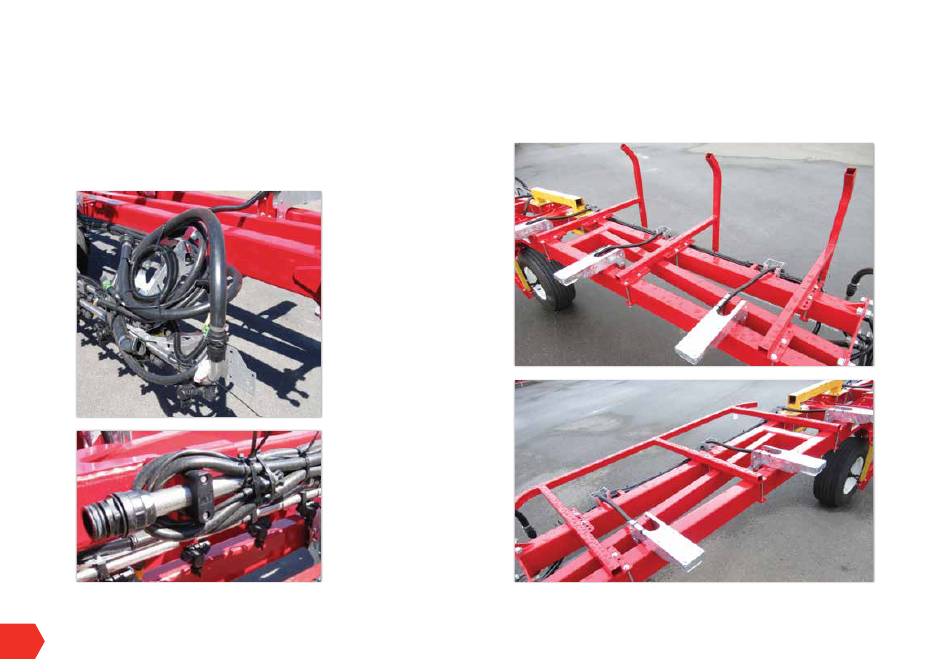

18. Fit boom bumper bars (if not
fitted at the time of delivery).
Normally the one-piece
Horizontal Bump bar is fitted
to the left-hand boom, and the
3 single Vertical Bump arms
are fitted to the right-hand
side. The photos below show
fitment to the opposite sides.
Preferred Bumper bar position
for 36m boom is on the
"intermediate" arm (as shown
at bottom). Shorter booms will
require the bump guards to be
mounting on the inner arm.
