Croplands WEED-IT Setup Manual page 7

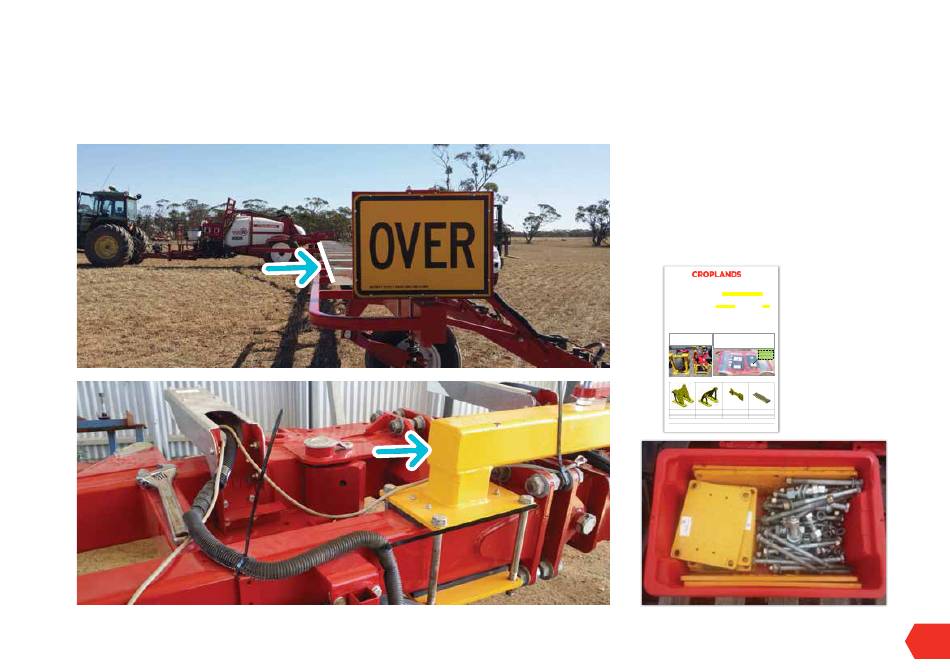

16. Remove yellow inner pivot brace. Remember to return
all "Yellow" Transport kit components, including nuts,
bolts and washers to Croplands for credit.
Place all hardware and plates in the red crate in
preparation for return to Croplands along with all
"Yellow"
items.
"Yellow"
Collect and pack all items for return.
See the transport kit guide, BT-OMWEED-MP375.
WEEDit Transport Kit, (MP-375) – version 4
WEEDit Transport Brackets & Frames:
Return to Croplands after delivery.
WEEDit Sprayers with booms longer than 28 metres are shipped double tiered with the outer castor wheels supplied
in separate frames. This requires a variety of brackets, braces & hardware, as per this document.
Customers are billed for the transport kit – which is refunded upon return of all components – all larger YELLOW
items on a pallet along with smaller items, plates and hardware in the spare red crate.
• Note: From time to time items supplied will vary from the standard transport kit.
• Use these pages to check off supplied & returned components.
• Steer (main) wheel shock absorbers are exchanged with rigid bars (HP-379-1) for truck transporting.
Delivery will include the caster wheels bolted Delivery includes shocks, controllers, manuals etc all wrapped to a
to the MP-379 frames, and then used to pallet along with a spare crate. Please use the pallet & spare crate
support the boom to the truck's trailer. to ship the transport kit components back to Croplands. Boom
protection bars (pictured below) are usually fitted to the sprayer.
Versions shown below are for "RED" tech. QUADRO "BLUE" tech versions have some modification to the original parts.
extra pads used on Quadro
MP-371-1L MP-371-1R MP-371-3 MP-371-2
QTY: 1 QTY: 1 QTY: 2 QTY: 4
Mount to MP371-1L / 1R Use with MP371-1L / 1R
Use plate MP-371-2 Use plate MP-371-2
BT-OMWEED-MP375,
