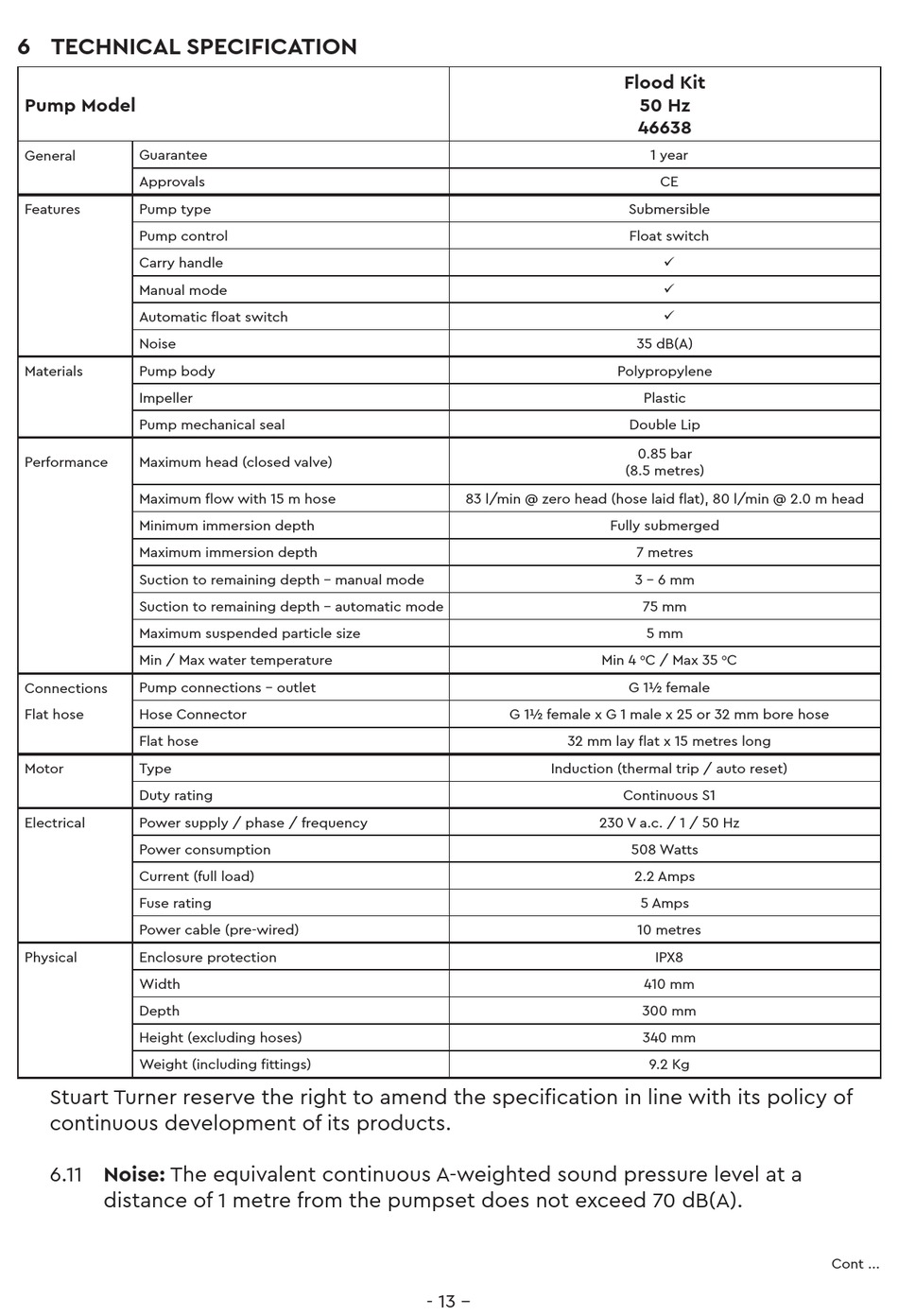

6 TECHNICAL SPECIFICATION

Pump Model
General Guarantee
Approvals
Pump type
Features
Pump control
Carry handle
Manual mode
Automatic float switch
Noise
Materials Pump body
Impeller
Pump mechanical seal
Performance Maximum head (closed valve)
Maximum flow with 15 m hose
Minimum immersion depth
Maximum immersion depth
Suction to remaining depth - manual mode
Suction to remaining depth - automatic mode
Maximum suspended particle size
Min / Max water temperature
Connections Pump connections - outlet
Flat hose Hose Connector
Flat hose
Type
Motor
Duty rating
Power supply / phase / frequency
Electrical
Power consumption
Current (full load)
Fuse rating
Power cable (pre-wired)
Physical Enclosure protection
Width
Depth
Height (excluding hoses)
Weight (including fittings)
Stuart Turner reserve the right to amend the specification in line with its policy of
continuous development of its products.
6.11 Noise: The equivalent continuous A-weighted sound pressure level at a
distance of 1 metre from the pumpset does not exceed 70 dB(A).
83 l/min @ zero head (hose laid flat), 80 l/min @ 2.0 m head
G 1½ female x G 1 male x 25 or 32 mm bore hose
32 mm lay flat x 15 metres long
Induction (thermal trip / auto reset)
- 13 -
Flood Kit
50 Hz
46638
1 year
CE
Submersible
Float switch
ü
ü
ü
35 dB(A)
Polypropylene
Plastic
Double Lip
0.85 bar
(8.5 metres)
Fully submerged
7 metres
3 - 6 mm
75 mm
5 mm
Min 4 C / Max 35 C
o o
G 1½ female
Continuous S1
230 V a.c. / 1 / 50 Hz
508 Watts
2.2 Amps
5 Amps
10 metres
IPX8
410 mm
300 mm
340 mm
9.2 Kg
Cont ...
