Installation, Operation & Maintenance
Instructions
Please leave this instruction booklet with the owner as it contains
important guarantee, maintenance and safety information
Read this manual carefully before commencing installation.
This manual covers the following products:

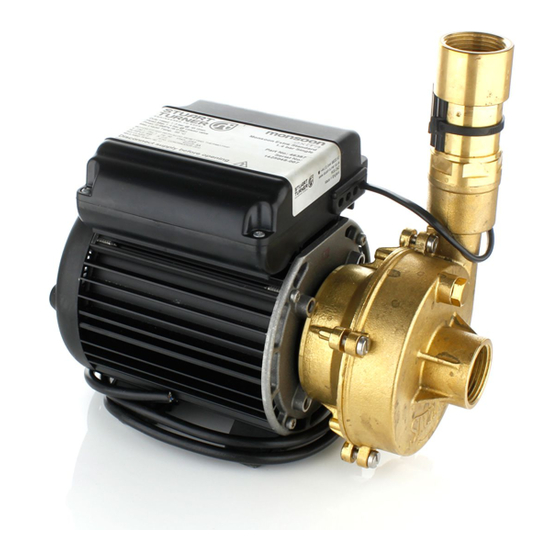

Monsoon Extra S1.4 bar
Pt. No. 46387
FOR POSITIVE HEAD APPLICATIONS ONLY
CE compliant product
Advertisement
Table of Contents
Related Manuals for Stuart Turner Monsoon Extra S1.4 bar
Summary of Contents for Stuart Turner Monsoon Extra S1.4 bar

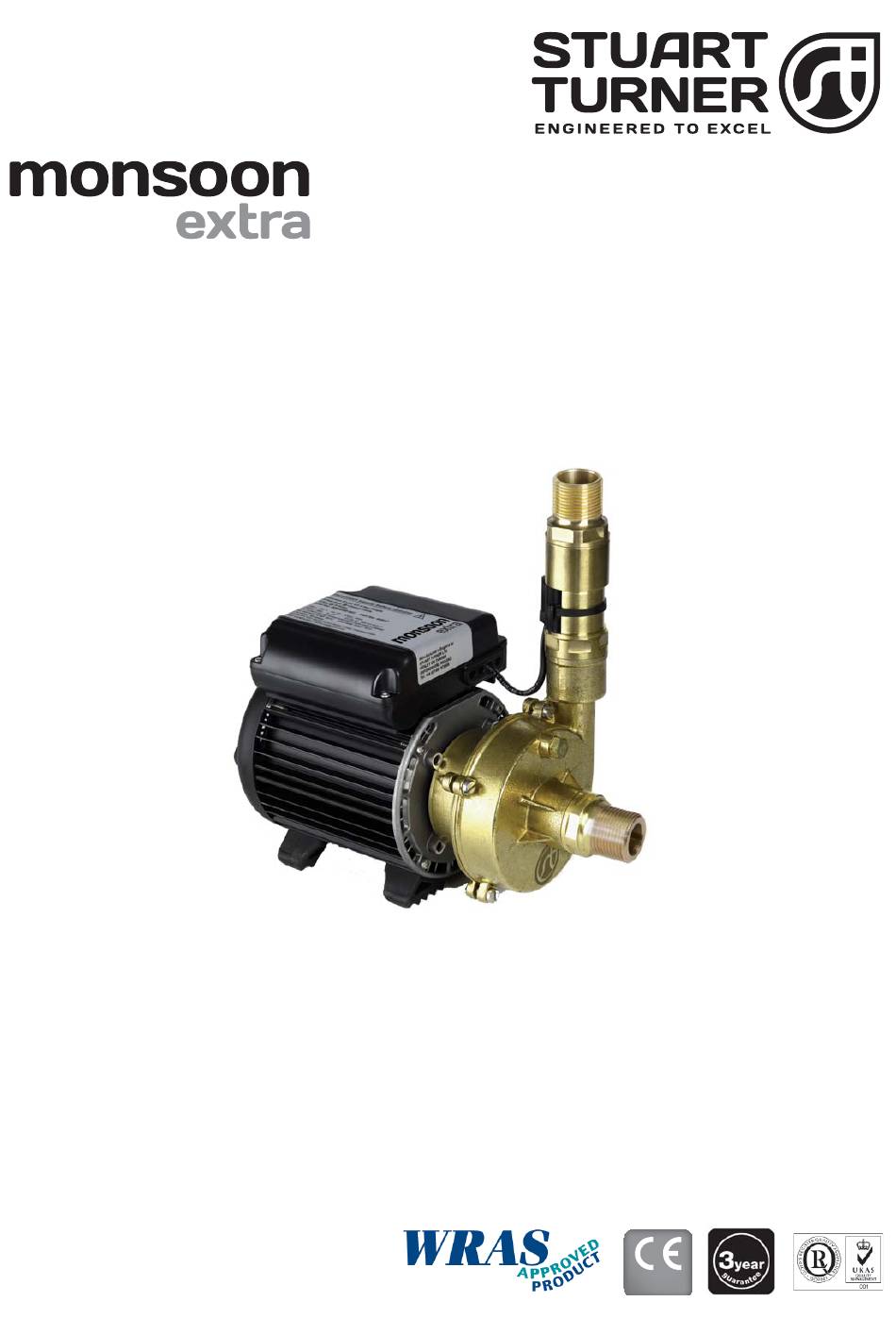

- Page 1 Please leave this instruction booklet with the owner as it contains important guarantee, maintenance and safety information Read this manual carefully before commencing installation. This manual covers the following products: Monsoon Extra S1.4 bar Pt. No. 46387 FOR POSITIVE HEAD APPLICATIONS ONLY CE compliant product...
-
Page 2: Table Of Contents
This pump set must not be used for any other application without the written consent of Stuart Turner Limited and in particular, must not be connected directly to the mains water supply. This appliance can be used by children aged from 8 years and ... -
Page 3: Checklist
(1 “ BSP) adaptor or fitting. IMPORTANT: With the pump removed from its packaging check for any damage prior to installation. If any damage is found contact Stuart Turner Ltd within 24 hours of receipt. 28 mm copper inlet pipework (suction). -
Page 4: Important Facts - Read Before Commencing Installation
1 READ BEFORE COMMENCING PUMP INSTALLATION A. Water storage capacity. 1.11 The stored water storage capacity to be pumped, must be sufficient to meet the flow rates required by the pumped equipment and any other water using fittings and appliances, which may be operated simultaneously. 1.12 Ensure the pump is primed as described in the priming section before starting, damage to the shaft seal will result otherwise. -
Page 5: Location
2.21 Direction of flow: Ensure the water flow is in the direction of the arrow marked on the flow switch reed clamp (vertically upwards). 2.22 Flexible hoses: Use only Stuart Turner supplied hoses. 2.23 Isolating valves: Separate isolating valves (non restrictive) must be fitted to allow easy pump service. - Page 6 2 LOCATION - BLENDED WATER INSTALLATION Outlet head must be below bottom of cold water tank and able to pass a minimum of 1 l/min of gravity flow Fig. 2 2 LOCATION - COLD WATER INSTALLATION Outlet head must be below bottom of cold water tank and able to pass a minimum of...
- Page 7 2 LOCATION - HOT WATER INSTALLATION Outlet head must be below bottom of cold water tank and able to pass a minimum of 1 l/min of gravity flow Fig. 4 2.26 Hot water supply: The pump must be supplied with a dedicated feed direct from the hot water cylinder or storage tank which should be via a secondary dedicated tapping (see Fig.
-
Page 8: Pump Connections
2.27 Non-Preferred Pump Location: The pump must be located with at least 1 metre flooded suction at all times. If it is not possible to locate the pump in the preferred area due to site limitations and it is necessary to position the unit in the loft, or in a position above the secondary tapping that feeds the pump, then there is an increased risk of air locks. -
Page 9: Electrical Installation
4 ELECTRICAL INSTALLATION / EARTHING 4.11 Regulations: The electrical installation must be carried out in accordance with the current national electrical regulations and installed by a qualified person. 4.12 Safety: In the interests of electrical safety a 30 mA residual current device (R.C.D. - Page 10 If the supply cord is to be changed or is damaged, it must be replaced with a special cord assembly available from Stuart Turner or one of their approved repairers. On disassembly note the cord retention and routing system. Re-assemble to the same pattern.
-
Page 11: Commissioning
Carefully check pump and pipework for leaks whilst pump running and stationary before leaving the installation unattended. 5.15 For Further Technical Support: Phone the Stuart Turner PumpAssist team on +44 (0) 844 98 000 97. Our staff are trained to help and advise you over the phone. -
Page 12: Maintenance
6 MAINTENANCE 6.11 Turn off water supplies to the pump and release pressure by opening water outlets before attempting maintenance. 6.12 Inlet strainer: Incorporated in the strainer is a removable gauze filter which may require periodic cleaning. The frequency of this operation is dependent upon installation conditions. -
Page 13: Technical Specifi Cation
264 mm Weight (including fittings) 7.7 Kg Stuart Turner reserve the right to amend the specification in line with its policy of continuous development of its products. *Note: The maximum pressure that can be applied to the pump under any installation conditions. -
Page 14: Trouble Shooting
Check fuse (see fuse section). Check circuit breaker is set. Check wiring connections. Pump jammed. If motor ‘Buzzes’ switch off power and contact Stuart Turner. Integral motor thermotrip Wait for thermotrip to auto-reset and check that duty activated. point and run time is within specification (see technical specification). -
Page 15: Guarantee
Proof of purchase should accompany the returned unit to avoid delay in investigation and dealing with your claim. You should obtain appropriate insurance cover for any loss or damage which is not covered by Stuart Turner Ltd in this provision. Please record here for your records. TYPE NO. - Page 16 Installers – Register with Stuart Turner and move up to Approved Installer status We receive thousands of enquiries every month from people seeking a Stuart Turner installer and by registering your details with us, we can offer consumers the opportunity to quickly locate an installer in their area.
