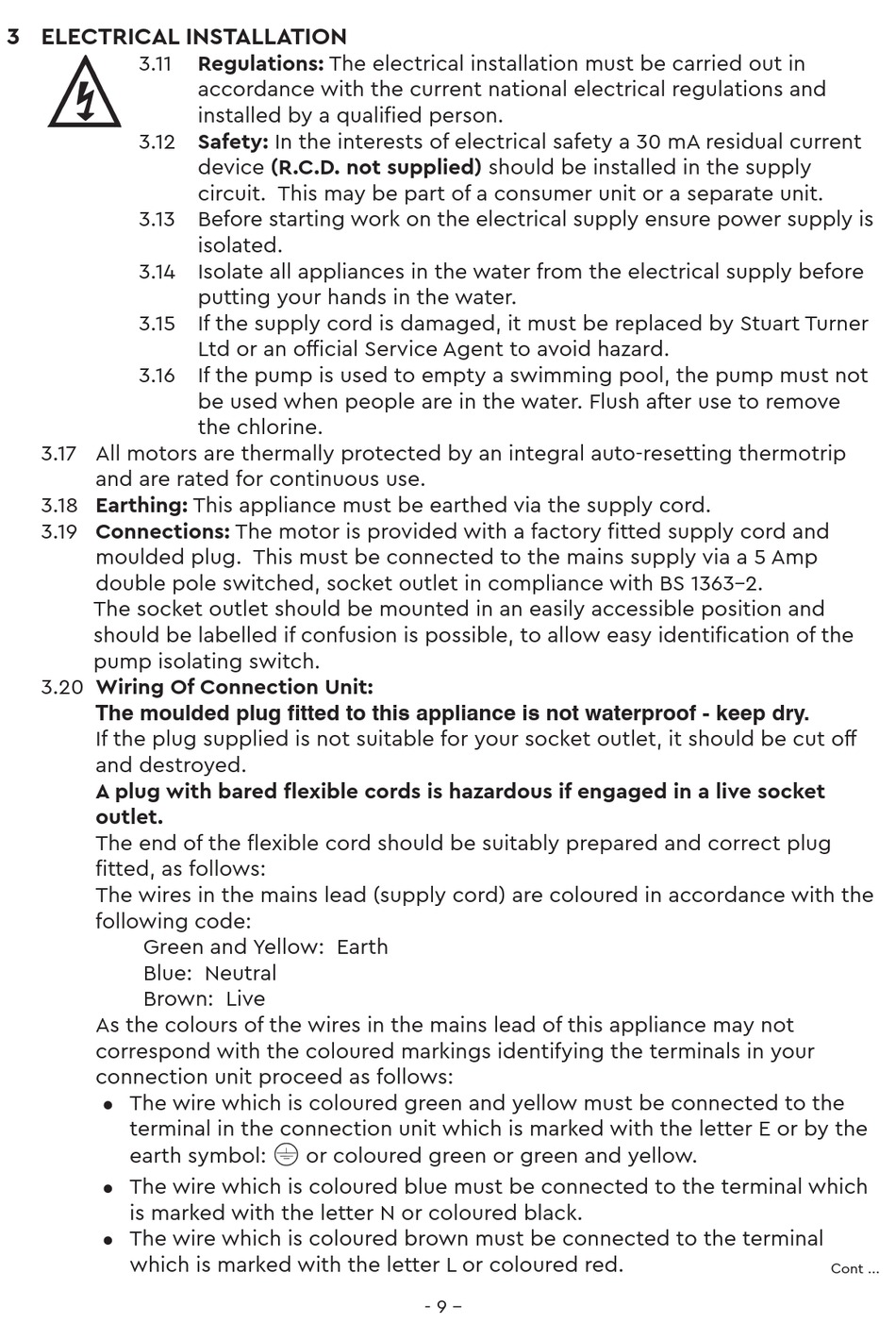

3 ELECTRICAL INSTALLATION

3.11
3.12 Safety: In the interests of electrical safety a 30 mA residual current
3.13 Before starting work on the electrical supply ensure power supply is
3.14 Isolate all appliances in the water from the electrical supply before
3.15 If the supply cord is damaged, it must be replaced by Stuart Turner
3.16 If the pump is used to empty a swimming pool, the pump must not
3.17 All motors are thermally protected by an integral auto-resetting thermotrip
and are rated for continuous use.
3.18 Earthing: This appliance must be earthed via the supply cord.
3.19 Connections: The motor is provided with a factory fitted supply cord and
moulded plug. This must be connected to the mains supply via a 5 Amp
double pole switched, socket outlet in compliance with BS 1363-2.
The socket outlet should be mounted in an easily accessible position and
should be labelled if confusion is possible, to allow easy identification of the
pump isolating switch.
3.20 Wiring Of Connection Unit:
The moulded plug fitted to this appliance is not waterproof - keep dry.
If the plug supplied is not suitable for your socket outlet, it should be cut off
and destroyed.
A plug with bared flexible cords is hazardous if engaged in a live socket
outlet.
The end of the flexible cord should be suitably prepared and correct plug
fitted, as follows:
The wires in the mains lead (supply cord) are coloured in accordance with the
following code:
Green and Yellow: Earth
Blue: Neutral
Brown: Live
As the colours of the wires in the mains lead of this appliance may not
correspond with the coloured markings identifying the terminals in your
connection unit proceed as follows:
The wire which is coloured green and yellow must be connected to the
z
terminal in the connection unit which is marked with the letter E or by the
earth symbol:
The wire which is coloured blue must be connected to the terminal which
z
is marked with the letter N or coloured black.
The wire which is coloured brown must be connected to the terminal
z
which is marked with the letter L or coloured red.
Regulations: The electrical installation must be carried out in
accordance with the current national electrical regulations and
installed by a qualified person.
device (R.C.D. not supplied) should be installed in the supply
circuit. This may be part of a consumer unit or a separate unit.
isolated.
putting your hands in the water.
Ltd or an official Service Agent to avoid hazard.
be used when people are in the water. Flush after use to remove
the chlorine.
or coloured green or green and yellow.
- 9 -
Cont ...
