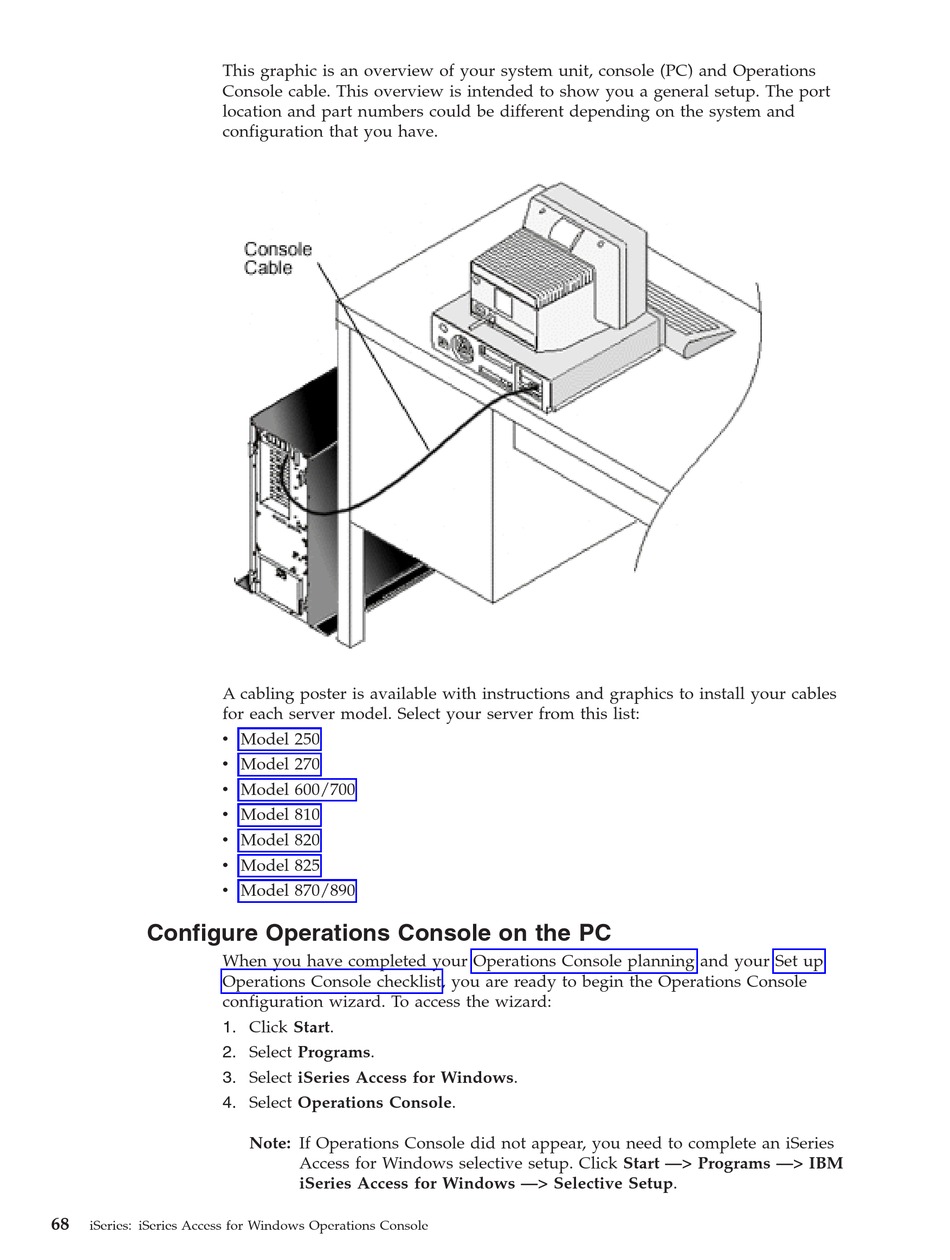

This graphic is an overview of your system unit, console (PC) and Operations
Console cable. This overview is intended to show you a general setup. The port
location and part numbers could be different depending on the system and
configuration that you have.
A cabling poster is available with instructions and graphics to install your cables
for each server model. Select your server from this list:
v Model 250
v Model 270
v Model 600/700
v Model 810
v Model 820
v Model 825
v Model 870/890

Configure Operations Console on the PC

When you have completed your Operations Console planning and your Set up
Operations Console checklist, you are ready to begin the Operations Console
configuration wizard. To access the wizard:
1. Click Start.
2. Select Programs.
3. Select iSeries Access for Windows.
4. Select Operations Console.
68
iSeries: iSeries Access for Windows Operations Console
Note: If Operations Console did not appear, you need to complete an iSeries
Access for Windows selective setup. Click Start —> Programs —> IBM
iSeries Access for Windows —> Selective Setup.
