3-4. Connecting to Antennas - Round Dish (Satellite A)
Antenna
Cable TV
wall jack
Receiving Signals

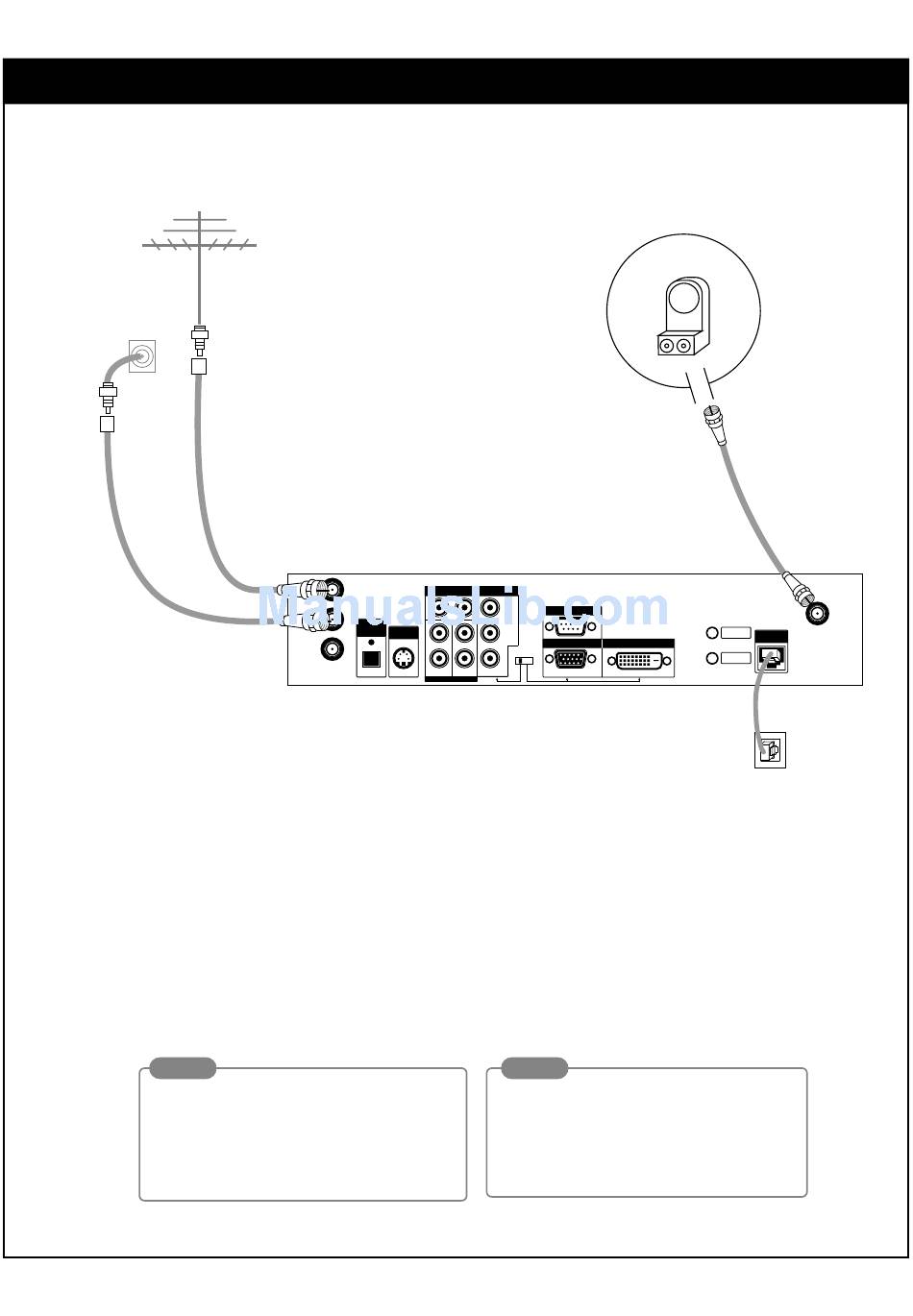

1. Connect the "Antenna" to the "ANT IN" jack on the DIRECTV
2. Connect the cable TV signal to the "CABLE IN" jack on the DIRECTV HD Receiver using a coaxial RF
cable.
3. Connect the "Jack 1" of the dish antenna to the "SATELLITE IN" jack on the DIRECTV HD Receiver using
a coaxial RF cable. (For proper dish installation, refer to the "Installer's Guide" provided with your satel-
lite dish antenna.)
4. Connect the "Phone Wall Jack" to "PHONE JACK" on the DIRECTV HD Receiver using a phone cable.
NOTE
While you are subscribing to a DIRECTV
gramming package, you can still view over-the-
air and cable TV programs, if you make con-
nections to the over-the-air and/or cable jacks.
