3. SETUP AND CONNECTIONS

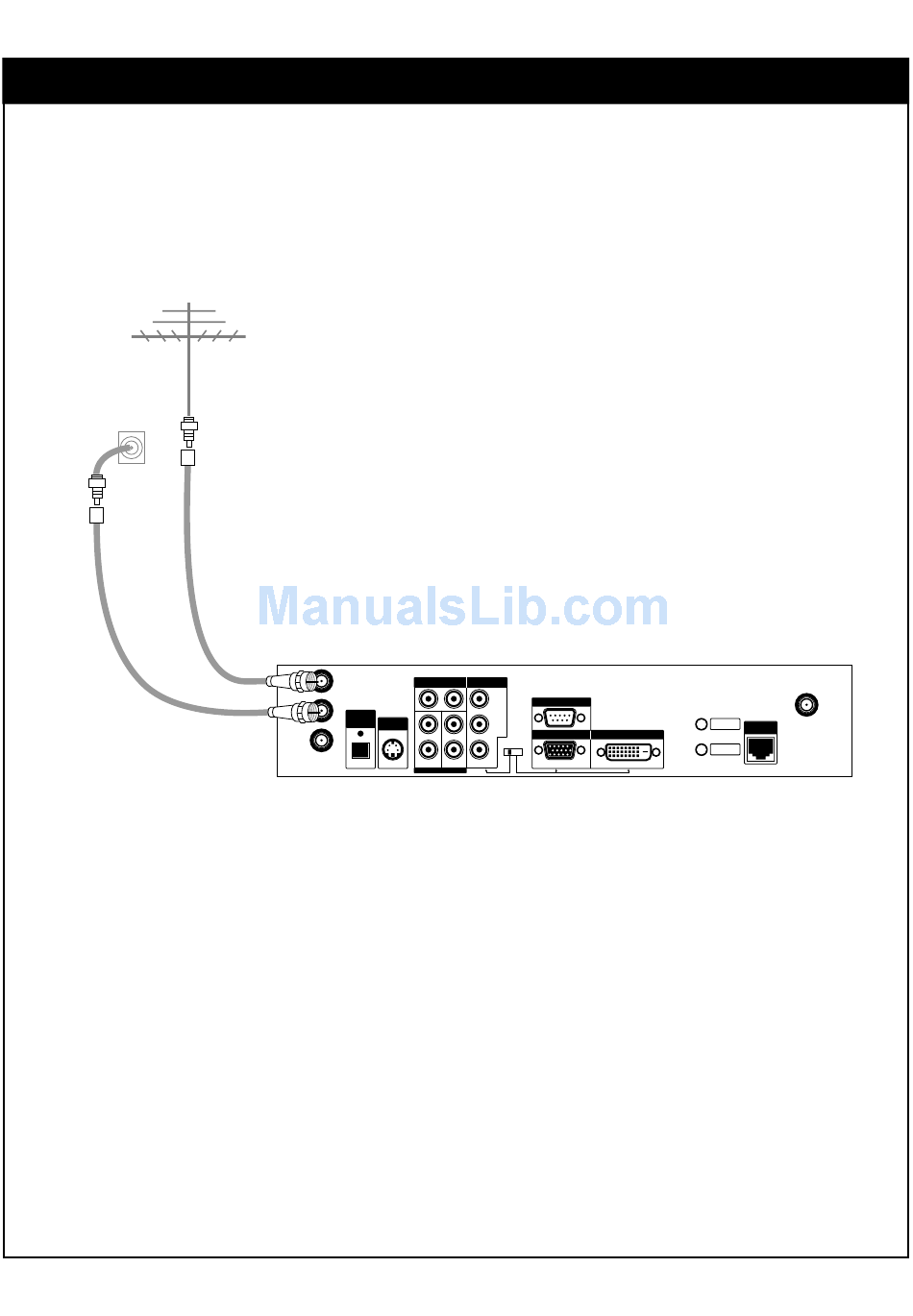

3-4. Connecting to Antennas - Non-Satellite Sources
Antenna
Cable TV
wall jack

Receiving Signals

1. Connect the "Antenna" to the "ANT IN" jack on the DIRECTV
RF cable.
2. Connect the cable TV signal to the "CABLE IN" jack on the DIRECTV HD Receiver using a
coaxial RF cable.
23
COMPONENT OUT
VIDEO OUT
(1080i i /720p/480p/480i i )
ANT IN
1 2
DIGITAL
AUDIO
S VIDEO
OUT
CABLE IN
OUT
L1 L2
OUT TO TV
R1 R2
OPTICAL
AUDIO OUT
DATA PORT
Y
RGB OUT DVI-HDTV OUT
Pb
TYPE
Pr
(1080i/720p/480p) (1080i/720p/480p) (1080i i /720p/480p/480i i )
® HD Receiver using a coaxial
SATELLITE
RF
PHONE IN
REMOTE
JACK
VCR
CONTROL
