3-6. VCR Connection - VCR Controller
VIDEO OUT
ANT IN
1
DIGITAL
AUDIO
S VIDEO
OUT
CABLE IN
OUT
L1
OUT TO TV
R1
OPTICAL
AUDIO OUT
VCR (front view)

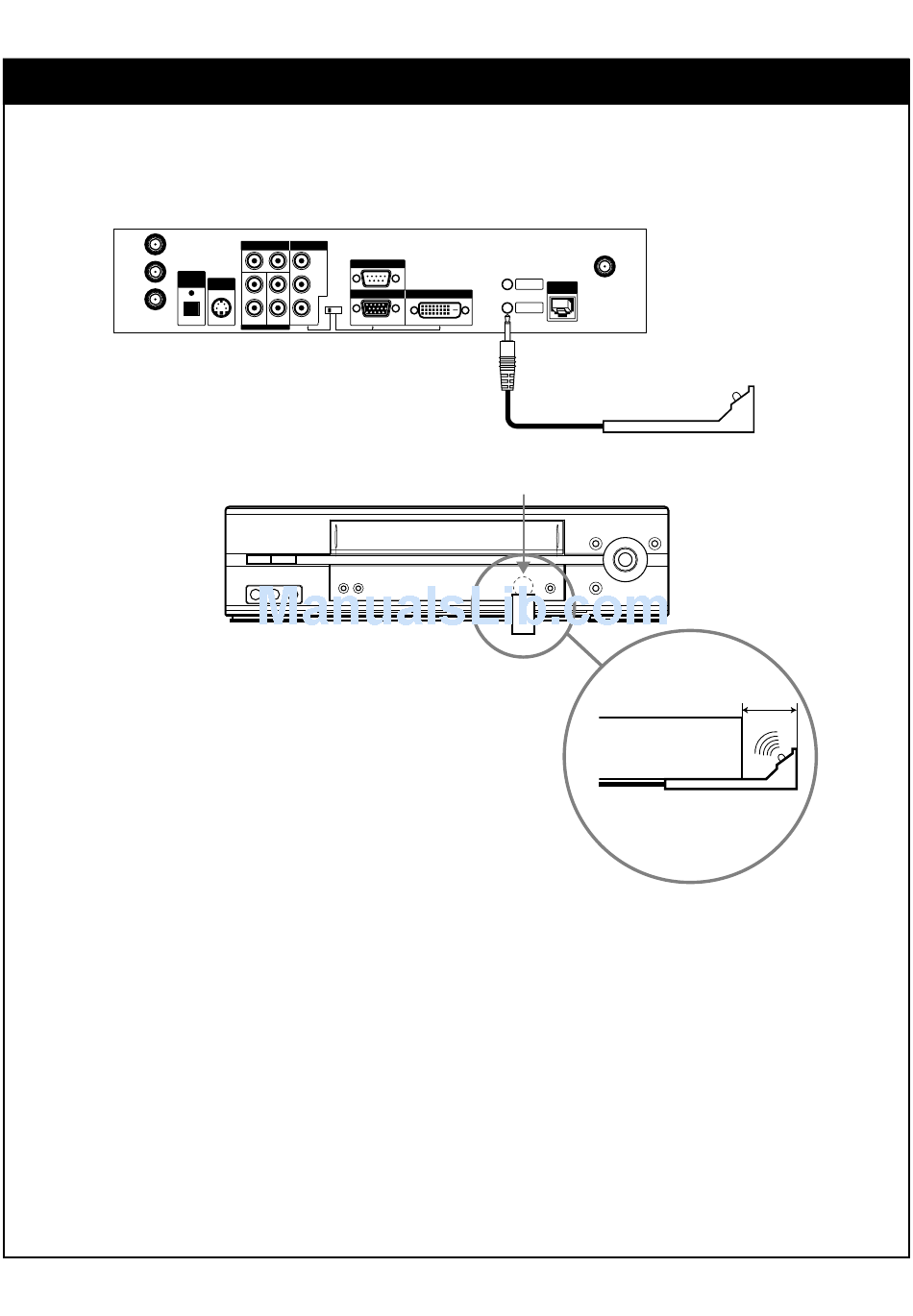

Connect the VCR Controller to allow the Timer and Rec feature to automatically operate your VCR. See "VCR Control
Setup " on page 111 for information about setting up the Digital Satellite Receiver to work with your VCR.
1. Connect the VCR Controller to the VCR CONTROL jack on the DIRECTV
2. Place the VCR Controller under and in front of the VCR. The VCR controller must extend just in front of the
infrared sensor of the VCR.
Note: If the infrared sensor is not marked on your VCR, shine a flashlight into the front panel of the VCR to
locate the sensor.
COMPONENT OUT
(1080i i /720p/480p/480i i )
2
DATA PORT
Y
RGB OUT DVI-HDTV OUT
L2 Pb
TYPE
R2 Pr
(1080i i /720p/480p/480i i )
(1080i/720p/480p) (1080i/720p/480p)
RF SATELLITE
REMOTE PHONE IN
JACK
VCR
CONTROL
VCR Controller
IR Sensor
VCR (side view)
HD Receiver.
®
1/2" to 1"
32
