SmartIntego Cylinder AX Modularity
(Manual)

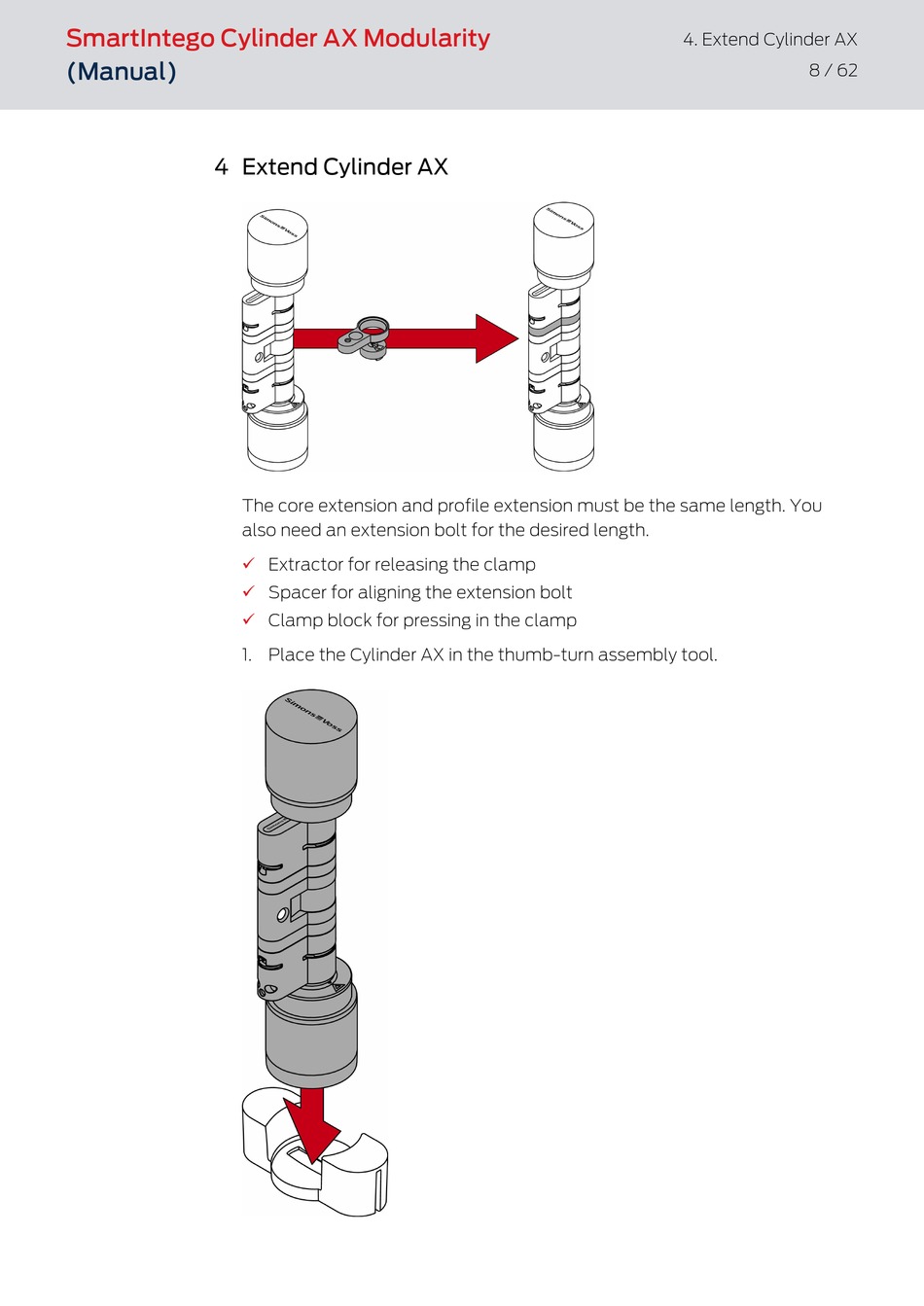

4 Extend Cylinder AX

The core extension and profile extension must be the same length. You
also need an extension bolt for the desired length.
ü Extractor for releasing the clamp
Spacer for aligning the extension bolt
ü
ü Clamp block for pressing in the clamp
1. Place the Cylinder AX in the thumb-turn assembly tool.
4. Extend Cylinder AX
8 / 62
