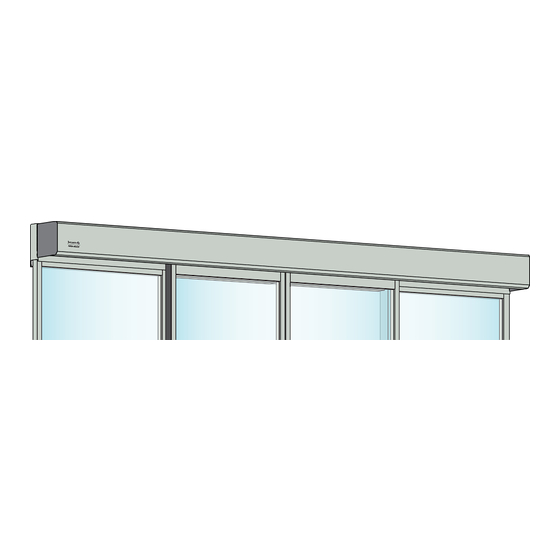

Assa Abloy Besam SL500 User Manual
Sliding door operator
Hide thumbs
Also See for Besam SL500:
- Manual (416 pages) ,
- User manual (214 pages) ,
- Owner's manual (24 pages)
Related Manuals for Assa Abloy Besam SL500
Summary of Contents for Assa Abloy Besam SL500
- Page 1 Original instructions User Manual Sliding Door Operator Besam SL500, SL500 T, SL500 SL ASSA ABLOY Entrance Systems...
-
Page 2: Table Of Contents
Warranty ..............................Service ..............................Intended use ........................................................Technical specification ........................How the Besam SL500, Besam SL500 T and Besam SL500 SL work ........Locking ..............................Unlocking ............................... Operation mode selectors ....................... Functions ........................Access codes and flashing light ................ - Page 3 ASSA ABLOY Entrance Systems or companies within the ASSA ABLOY Group. © All rights in and to this material are the sole property of ASSA ABLOY Entrance Systems AB. Copying, scanning, alterations or modifications are expressly forbidden without the prior written consent of the applicable company within ASSA ABLOY Entrance Systems AB.
-
Page 4: Instructions For Safe Operation
Instructions for safe operation Failure to observe the information in this manual may result in personal injury or damage to equipment. To reduce the risk of injury of persons - use this oper- ator only with pedestrian doors. Do not use the equipment if repair or adjustment is necessary. -
Page 5: Congratulations On Your New Automatic Door
Your local ASSA ABLOY Entrance Systems-authorized representative is familiar with these standards, as well as all applicable local codes and ASSA ABLOY Entrance Systems recommendations for power- operated pedestrian doors. Service and adjustments performed by your ASSA ABLOY Entrance Sys- tems-authorized representative, will ensure safe and proper operation of your automatic door unit. -
Page 6: Warranty
ASSA ABLOY Entrance Systems-authorized resellers shall extend this warranty to end-users only, but have no authority to extend a greater or different warranty on behalf of ASSA ABLOY Entrance Systems. A service agreement with ASSA ABLOY Entrance Systems will help secure the availability of a fully operational system and will give priority at call-out, thus minimizing the time that the equipment is unusable. -
Page 7: Intended Use
The closing starts when no OPENING IMPULSE is received and the HOLD OPEN TIME has expired. The Besam SL500, Besam SL500 T and Besam SL500 SL user can select five different modes of oper- ation if a programme selector is installed. See Operation mode selectors on page 9. -
Page 8: Locking
Locking Doors used for emergency escape in buildings such as hospitals and homes for elderly people may not be locked or put in programme selection OFF mode. In other buildings emergency escape doors may be locked or put in programme selection OFF mode after it has been secured and all people have left the building. -
Page 9: Operation Mode Selectors
Operation mode selectors The door functions are set with different operate mode selectors. The operation mode selector is available with 5 buttons (plus RESET). The key on the PSK-6U mode selector must always be removed on emergency escape doors after changing settings. -
Page 10: Access Codes And Flashing Light
CM-No. Done Date 12-553 2012-11-06 Access codes and flashing light Codes Three alternative selectable codes are used. Flashing The default access is obtained by pushing the arrow symbol light pointing up or down for 2 seconds. An optional access code can be selected where the access is obtained by briefly pushing in turn the arrow up symbol, followed by the arrow down symbol, followed by the arrow down symbol again and at last the arrow up. -
Page 11: Safety System With Presence Sensors
Safety system with presence sensors Usually the safety system incorporates presence sensors installed above the door opening. A presence sensor detects an object in the doorway, while the doors are closing, the doors reverse immediately. They then resume their interrupted movement as soon as the object is removed. 1009216-EI-4.0 Issue 2015-10-23... -
Page 12: Technologically Advanced Sensors
Technologically advanced sensors The ASSA ABLOY Entrance Systems sensors have been tested and approved by the ASSA ABLOY En- trance Systems test laboratory for use on ASSA ABLOY Entrance Systems's automatic sliding doors. These presence sensors further improve the already high obstruction detection obtained with the built in self-monitored crush force limitation. -
Page 13: How To Check Your Side Presence Detector(S)
Open the door and move your hand from one side (right/left) into the inner door face presence field. Keep it motionless for several seconds at about 30 cm over the floor level. The door should remain open as long as you are within the detection area. Repeat the same procedure on the outer door face. -
Page 14: Safety System With Photocells
Safety system with photocells Alternatively the safety system can incorporate presence photocells in the door opening. If an object is breaking the infrared – – – – (invisible) beam between the photocell units, while the doors are closing, the doors reverse immediately. They then resume their interrupted movement as soon as the object is removed. -
Page 15: Emergency Escape
Emergency escape The operator can be fitted with different emergency escape units to ensure a safe evacuation of the building. Break-out unit PSB The door leaves and the side screens are swung outwards when a defined pressure is applied. The break-out function can also be used to create a wider opening. From the fully swung out position, the door leaves can be manually slid sideways, offering the possibility to transport wide objects through the opening, or to make a shop entrance more inviting during good weather. -
Page 16: Regular Safety Checks
Check the safety sensors if any. See page 12. If you are unsure of which type of sensor you have, please contact your ASSA ABLOY Entrance Systems representative. If the operator is equipped with break-out system, set the programme se- lector to AUTO mode. - Page 17 ≥ 25 CLEANING The best way to remove dust and dirt from the Besam SL500, Besam SL500 T and Besam SL500 SL is to use water and a soft cloth or a sponge. A gentle detergent may be used. To maintain the quality of the enamel layer, the surfaces should be cleaned once/four months period.
- Page 18 Activation by disabled people: Recommended, if applicable. No entry, identifying one-way traffic: Mandatory in GB and US, if applicable Automatic door Keep clear Contact your ASSA ABLOY Entrance Systems service representative. For contact information, see last page. Issue 2015-10-23 1009216-EI-4.0...
-
Page 19: Safety Accessories
Safety accessories Even though the Besam SL500, Besam SL500 T and Besam SL500 SL are installed to comply with all applicable safety regulations, it is possible to enhance safety/comfort with the following add-ons (please contact your local ASSA ABLOY Entrance Systems company for detailed description). -
Page 20: Micro Switch Kit
See separate installation drawing 1013736. Micro switch kit For indication of door and lock position. Old version of LSK. Locked door indicator For indication of locked lock and closed door for connection to alarm system. Electrical emergency unit with batteries Used if a door is required to be opened or closed by means of a rechargeable battery unit and remain in this position in the event of power failure. -
Page 21: Push Button
Push button Used to give opening impulse to the door. See separate installation drawing 656005. Synchronization Used between the operators of two single sliding doors, working together in very large openings. Interconnecting cable required. Open / Close function One button impulse, will alternate between Open and Close. The door will stand open until next impulse or can after an adjustable time delay automatically start to close even if a new impulse is not received. -
Page 22: Troubleshooting
Allow the operator to control the closed position without interruption. If the problem continues, please contact your ASSA ABLOY Entrance Systems representative. Issue 2015-10-23 1009216-EI-4.0... -
Page 23: Service/Maintenance
(PRA-0005) available. These are used together. The table below shows the recommended interval in months, when to replace parts during preventive maintenance. Talk to your ASSA ABLOY Entrance Systems representative to learn more about our service offering. Cycles/hour in operation <10... -
Page 24: Declaration Of Conformity
Sweden declare under our sole responsibility that the type of equipment: Besam SL500, Besam SL500 T, Besam SL500 SL, Besam SL500 ADS, Besam SL500 T ADS, Besam SL500 SL ADS. With or without emergency unit complies with the following directives:... - Page 26 ASSA ABLOY Entrance Systems is a leading supplier of entrance automation solutions for efficient flow of goods and people. With our globally recognized product brands Besam, Crawford, Megadoor and Albany, we offer products and services dedicated to satisfying end-user needs for safe, secure, convenient and sustainable operations.
