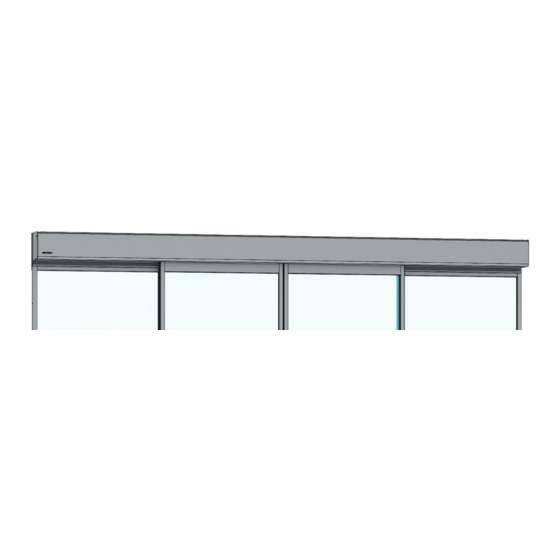

Assa Abloy SL500 User Manual

Sliding door operator
Hide thumbs Also See for SL500:
Table of Contents

Advertisement

Quick Links

Original instructions
User Manual
Entrance Systems
Sliding Door Operator
ASSA ABLOY SL500, SL510, SL520, SL521

Advertisement

Table of Contents
loading

Related Manuals for Assa Abloy SL500

Summary of Contents for Assa Abloy SL500

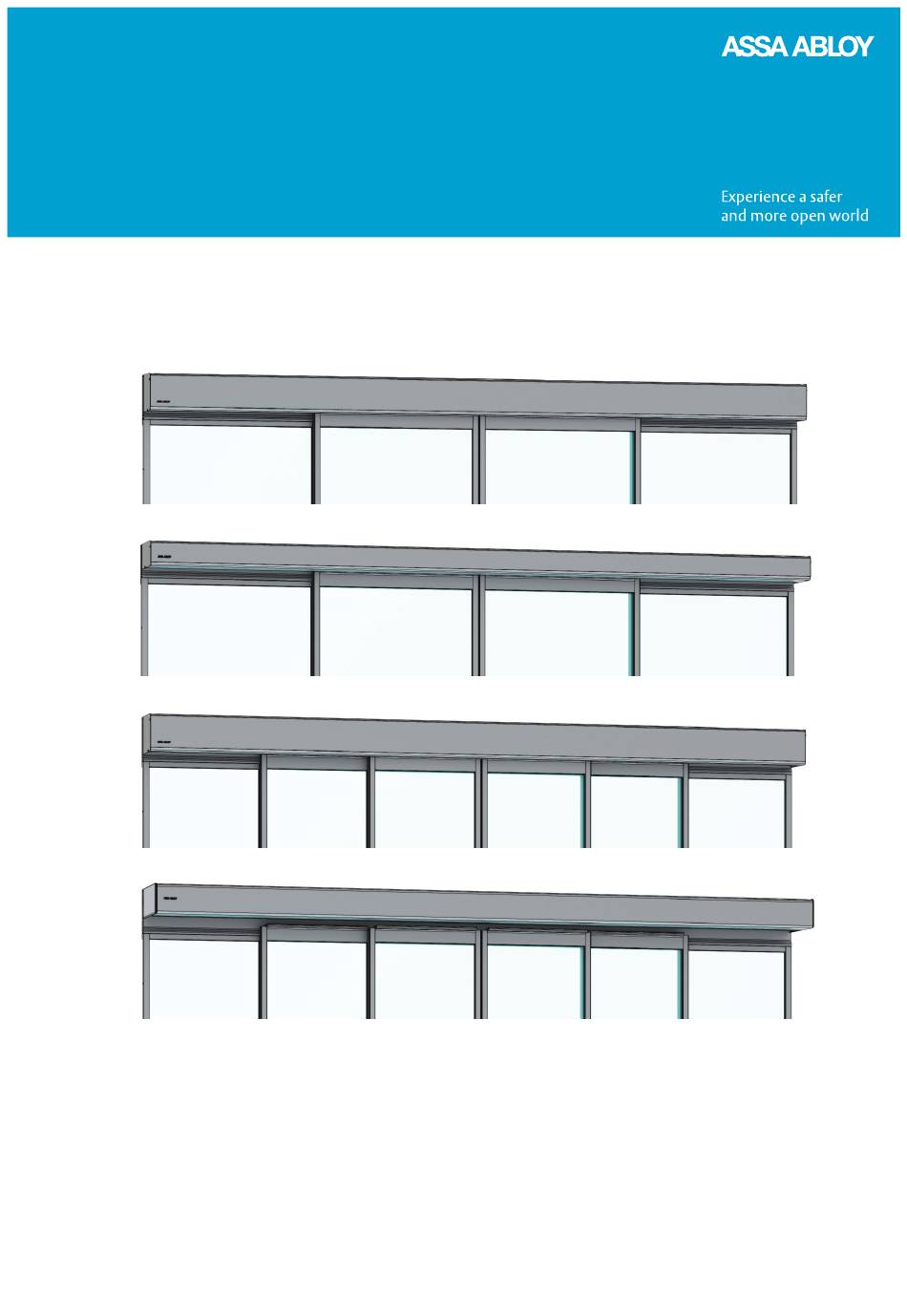

  • Page 1 Original instructions User Manual Entrance Systems Sliding Door Operator ASSA ABLOY SL500, SL510, SL520, SL521...

  • Page 2: Table Of Contents

    Warranty ..............................Service ..............................Intended use ........................................................Technical specification ........................How the ASSA ABLOY SL500, ASSA ABLOY SL510, ASSA ABLOY SL520 and ASSA ABLOY SL521 work ............................Locking ..............................Unlocking ............................... ASSA ABLOY Sliding Door Manager ....................Operation mode selectors .......................
  • Page 3 ................................................................................... Declaration of conformity ........................................................................................................... ASSA ABLOY as word and logo are trademarks owned by the ASSA ABLOY Group © ASSA ABLOY Entrance Systems, 2021 Technical data subject to change without notice. 1009216-en-21.0 Issue 2021-11-19...
  • Page 4 Backtrack information: folder:Workspace Main, version:a701, Date:2021-11-19 time:12:22:55, state: Frozen Issue 2021-11-19 1009216-en-21.0...

  • Page 5: Presentation Of Notes And Warning Signs

    Presentation of notes and warning signs Various symbols and texts are used in this manual for easier understanding and identification. Note! When you see Note! it contains useful advice and information to ensure correct and compliant usage of the system. Potential hazardous situation that can lead to either minor or severe injuries or death and cause either minor or substantial property damage.
  • Page 6 Do not use the equipment if repair or adjustment is necessary. WARNING: the drive shall be disconnected from its power source during cleaning, maintenance and when replacing parts. The operator can be used by children over 8 years of age if they have been instructed by a person in charge of their safety concerning use of the appliance in a safe way and understand the hazards involved.
  • Page 7 Ensure that controls that can be set for a locked posi- tion are only activated when there are no other per- sons in the room. 1009216-en-21.0 Issue 2021-11-19...

  • Page 8: Congratulations On Your New Automatic Door

    Congratulations on your new automatic door! ASSA ABLOY Entrance Systems AB has developed automatic doors for more than 50 years. State-of- the-art technology and carefully tested materials and components provide you with a superior product. As with all other technical products, your automatic door requires periodic maintenance and service.

  • Page 9: Warranty

    Warranty ASSA ABLOY Entrance Systems warrants its products to be free from defects in material and work- manship under intended use and service for a warranty time of 12 months, beginning at time of delivery. This warranty extends only to the original buyer of the equipment.

  • Page 10: Intended Use

    It is to be used indoors where it is suitable for almost all types of external and internal sliding doors. For installation and maintenance see Installation and Service manual 1009203 (ASSA ABLOY SL500), 1013523 (ASSA ABLOY SL510), 1011076 (ASSA ABLOY SL520), 1020148 (ASSA ABLOY SL521) or 1016068 (ASSA ABLOY M SL).

  • Page 11: Unlocking

    ASSA ABLOY Sliding Door Manager. Installation of the app Download the app ASSA ABLOY Sliding Door Manager, at App Store or Google Play. Make sure to have your value document ready. Tap the button "+ Add Door " in the app, and follow the door setup wizard. The setup wizard will guide you how to pair the smartphone with the door.

  • Page 12: Operation Mode Selectors

    Operation mode selectors The door functions are set with different operation mode selectors. The operation mode selector is available with 5 positions (plus RESET). The key on the PSK-6U, OMS Standard and OMS BLE mode selectors must always be removed on emergency escape doors after changing settings.

  • Page 13: Oms Standard And Oms Ble - Access Codes And Flashing Light Description

    A green light will flash four times per second when a new operation mode has been selected but not yet confirmed. Bluetooth LED (For OMS BLE) No light Bluetooth is disabled Bluetooth is active Flashing light OMS BLE module is paring with the app ASSA ABLOY Sliding Door Manager 1009216-en-21.0 Issue 2021-11-19...

  • Page 14: Oms Basic And Psk-6U - Modes

    OMS Basic and PSK-6U - Modes OPEN, AUTO PARTIAL, AUTO, EXIT and OFF modes can be obtained. Symbol Text Mode The door is permanently open. The door can be moved by hand OPEN e.g. for window cleaning. All activation units except for the emergency push button (if fitted) are disconnected.

  • Page 15: Oms Basic - Access Codes And Flashing Light Description

    Note! If monitored emergency unit is a demand, a test of the emergency unit is performed when the operation mode selector is set from OFF or OPEN to any other operation mode. OMS Basic - Access codes and flashing light description Codes Three alternative selectable codes are used.

  • Page 16: Safety System With Presence Sensors

    Safety system with presence sensors Usually the safety system incorporates presence sensors installed above the door opening. A presence sensor detects an object in the doorway, while the doors are closing, the doors reverse immediately. The doors will start to close when the object is removed. Issue 2021-11-19 1009216-en-21.0...

  • Page 17: Technologically Advanced Sensors

    The ASSA ABLOY Entrance Systems sensors have been tested and approved by the ASSA ABLOY Entrance Systems test laboratory for use on ASSA ABLOY Entrance Systems's automatic sliding doors. These presence sensors further improve the already high obstruction detection obtained with the built in self-monitored crush force limitation.

  • Page 18: How To Check Inner And Outer Combined Motion And Presence Detection Sensors

    How to check inner and outer combined motion and presence detection sensors Combined sensors are used when you want both a motion sensor and a presence sensor integrated into the same unit. Walk towards the door opening, the door shall start to open when you are about 1.5 meter from the door and the door shall stop in open position.

  • Page 19: How To Check Side Presence Detector(S)

    How to check side presence detector(s) Side presence sensors can be used for example if higher door speed is required or for installations in homes for elderly/disabled or childcare centres, to protect users from being struck by the doors during their opening cycle. When a side presence sensor detects an obstacle the door operator will not stop, but slow down the door movement to a safe speed.

  • Page 20: Safety System With Photocells

    Safety system with photocells Alternatively the safety system can incorporate presence photocells in the door opening. If an object is breaking the infrared – – – – (invisible) beam between the photocell units, while the doors are closing, the doors reverse immediately. The door will close when the object is removed. Issue 2021-11-19 1009216-en-21.0...

  • Page 21: Emergency Escape

    Emergency escape The operator can be fitted with different emergency escape units to ensure a safe evacuation of the building. Break-out unit PSB The door leaves and the side screens are swung outwards when a defined pressure is applied. The break-out function can also be used to create a wider opening. From the fully swung out position, the door leaves can be manually slid sideways, offering the possibility to transport wide objects through the opening, or to make a shop entrance more inviting during good weather.

  • Page 22: Regular Safety Checks

    Check the safety sensors if any. page If you are unsure of which type of sensor you have, please contact your ASSA ABLOY Entrance Systems representative. If the operator is equipped with break-out system, set the mode selector to AUTO mode. Push the door(s) manually in the escape direction to ensure that nothing prevents the door(s) from being open.
  • Page 23 FUNCTION AND VISUAL INSPECTION 10 11 Click! ≥ 25 CLEANING A gentle detergent may be used. To maintain the quality of the surface treatment, the surfaces should be cleaned once/four months period. The cleaning should be documented. To avoid damages to the profiles the brushes/weather stripping must be vacuum-cleaned weekly.
  • Page 24 Product label: Mandatory Emergency break-out: Mandatory, if approved for escape route. ASSA ABLOY Entrance Systems door sticker: Mandatory, if applicable to highlight the presence of the glass (applied to all glass sections that are moving). Supervision of child (applied to both sides of the door): Mandatory according to national regulations.

  • Page 25: Safety Accessories

    Separate presence sensors (presence in the door opening or side presence for the trailing edge of the door) General accessories Your ASSA ABLOY SL500, ASSA ABLOY SL510, ASSA ABLOY SL520 and ASSA ABLOY SL521 can be further improved with the following add-ons (please contact your local ASSA ABLOY Entrance Systems dealer for detailed description).

  • Page 26: Electrical Emergency Unit (Eeu)

    (the doors will not slam into the door stops). If the operator does not decrease the speed of the door, the battery needs to be replaced by an ASSA ABLOY Entrance Systems-authorized representative. Electrical Emergency Unit (EEU) EEU consist of rechargeable batteries.

  • Page 27: Push Button

    The PASS function enables the operator to count how many people that pass through the door, in and out. The value can be presented in the ASSA ABLOY Sliding Door Manager app. The PASS function aids in controlling the amount of people that can enter the building. The max restriction limit is 1 000 persons.

  • Page 28: Troubleshooting

    The door moves slowly Prevent traffic from using the door and allow it to close completely. Reset the operator by briefly pushing the reset button (see page 12). If the problem continues, please contact your ASSA ABLOY Entrance Systems representative. Issue 2021-11-19 1009216-en-21.0...

  • Page 29: Service/Maintenance

    (PRA-0005) available. These are used together. The table below shows the recommended interval in months, when to replace parts during preventive maintenance. Talk to your ASSA ABLOY Entrance Systems representative to learn more about our service offering. Cycles/hour in operation <10...
  • Page 30 Service such as preventive maintenance and upgrade programs, emergency repairs, service advice and door management Issue 2021-11-19 1009216-en-21.0...

  • Page 31: Declaration Of Conformity

    Sweden declare under our sole responsibility that the type of equipment: SL500, SL500 T, SL500 SL, SL510, SL520, SL500 ADS, SL500 T ADS, SL500 SL ADS, SL510 ADS, SL520 ADS. With or without emergency unit complies with the following directives:...

  • Page 32: Declaration Of Conformity

    AutSchR:1997 EN 301 489-1 V 2.2.0 EN 301 489-1 V 2.2.0 Certificate issued by a notified or competent body (for full address, please contact ASSA ABLOY Entrance Systems AB) concerning the equipment: B 058029 0048 The manufacturing process ensures the compliance of the equipment with the technical file. The manufacturing process is regularly assessed by 3rd party.
  • Page 34 Building on the long-term success of the Besam, Crawford, Albany and Megadoor brands, we offer our solutions under the ASSA ABLOY brand. Our products and services are dedicated to satisfying end-user needs for safe, secure, convenient and sustainable operations.
