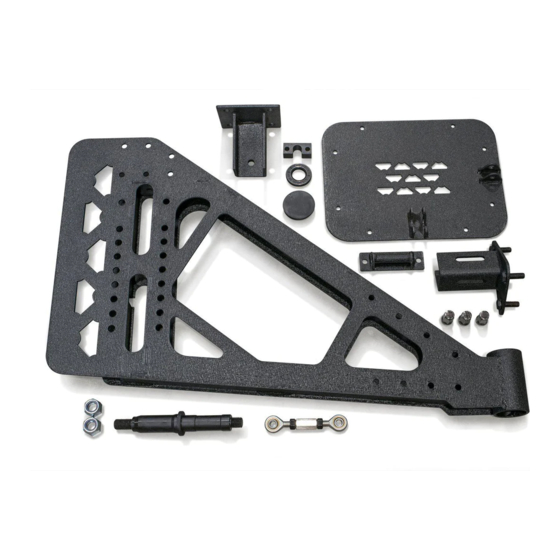

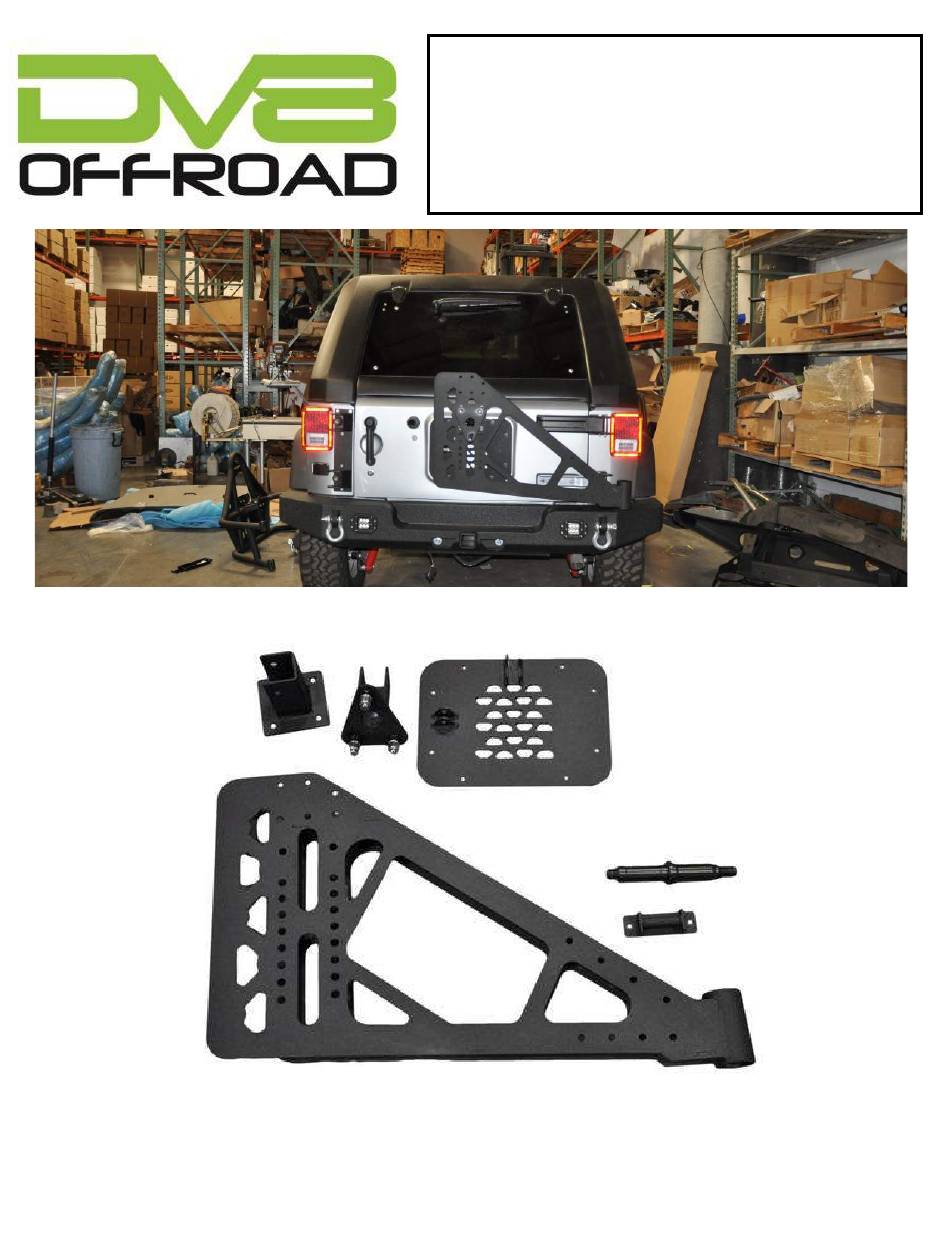

TC-6 TIRE CARRIER
Install Manual
Patent Pending
Estimated install time - Approx. 30min -1 hour. Difficulty Level: EASY

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TC-6 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for DV8 TC-6

Summary of Contents for DV8 TC-6

  • Page 1 TC-6 TIRE CARRIER Install Manual Patent Pending Estimated install time - Approx. 30min -1 hour. Difficulty Level: EASY...
  • Page 2 1. Start from inside the tailgate door, remove the vent. The vent is held on by two snap-in clips on the left side. Pull out, on the left side, using your hand or a tool to pry. Disconnect the plug directly inside. 2.
  • Page 3 4. Pry out the rubber plug from the top of the passenger side (right) of the RS- 10 or RS-11 bumper. Drop in the new axle, tapered side down thru the hole. Spin on one of the new large nylock nuts with one of the large washers be- tween it.
  • Page 4 8. Locate the bracket and hardware shown in the picture. 9. Install bracket on to the tire carrier. This bracket will line up with the “U” shaped spot on the tailgate plate. To line up, loosely bolt up the bracket and close tailgate. Tighten the bracket once you aligned it with the “U”...
  • Page 5 12. Install the new rubber cap over the axle bolt bearing area on tire carrier. This piece will help keep the bearing clean and smooth. 13. Locate the spare tire inner mounting bracket and nuts and bolts for it. See picture. 14.
  • Page 6 16. Open and close and tighten the heim in 1/2 increments to get the snug fit you’re looking for. Note: You may use your lug nuts as long as you verify that they are the same thread pitch as the mounting brack- 17.
