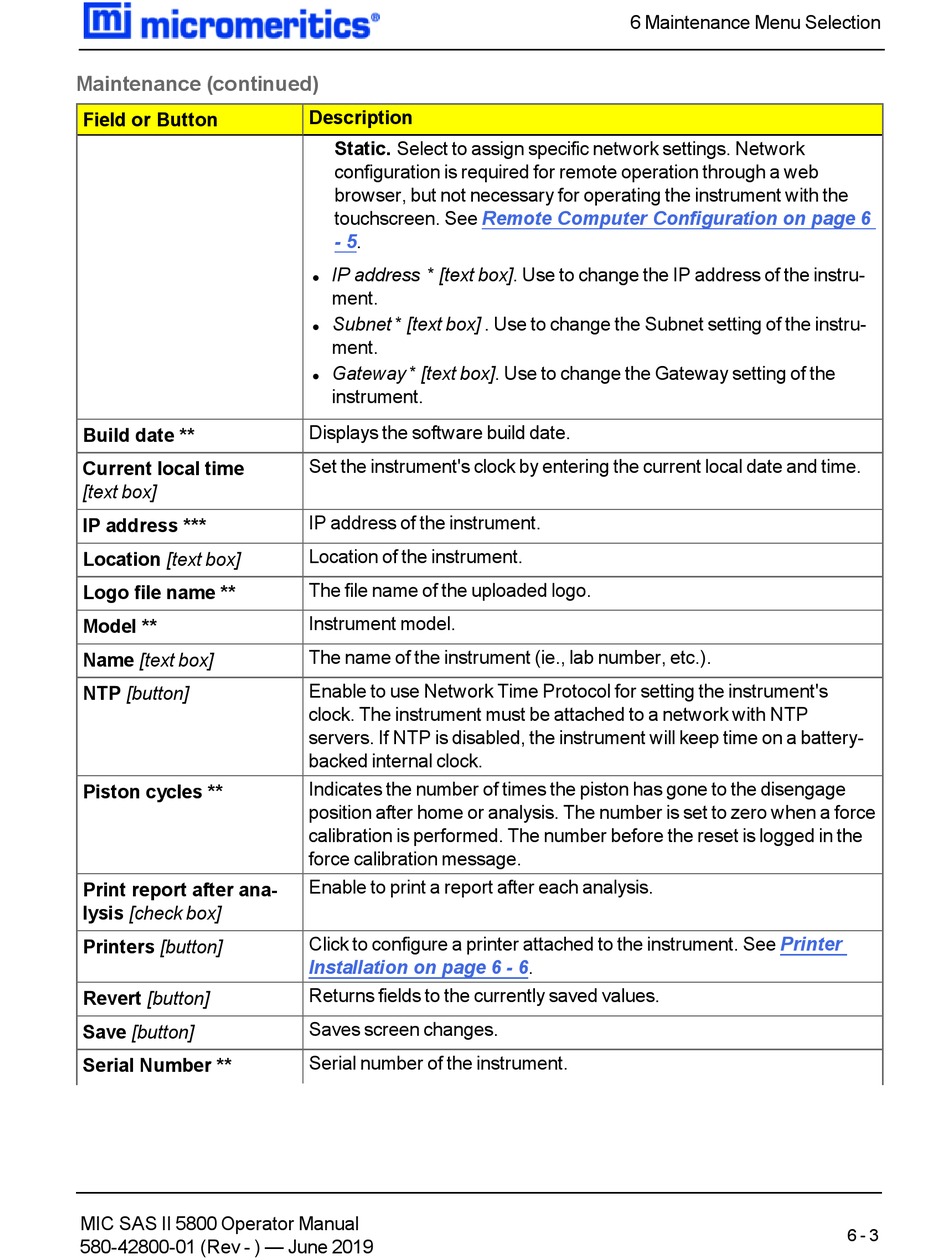

Maintenance (continued)
Field or Button
Build date **
Current local time
[text box]
IP address ***
Location [text box]
Logo file name **
Model **
Name [text box]
NTP [button]
Piston cycles **
Print report after ana-
lysis [check box]
Printers [button]
Revert [button]
Save [button]
Serial Number **
MIC SAS II 5800 Operator Manual
580-42800-01 (Rev - ) — June 2019
Description
Static. Select to assign specific network settings. Network
configuration is required for remote operation through a web
browser, but not necessary for operating the instrument with the
touchscreen. See Remote Computer Configuration on page 6
- 5.
IP address * [text box]. Use to change the IP address of the instru-
l
ment.
Subnet * [text box] . Use to change the Subnet setting of the instru-
l
ment.
Gateway * [text box]. Use to change the Gateway setting of the
l
instrument.
Displays the software build date.
Set the instrument's clock by entering the current local date and time.
IP address of the instrument.
Location of the instrument.
The file name of the uploaded logo.
Instrument model.
The name of the instrument (ie., lab number, etc.).
Enable to use Network Time Protocol for setting the instrument's
clock. The instrument must be attached to a network with NTP
servers. If NTP is disabled, the instrument will keep time on a battery-
backed internal clock.
Indicates the number of times the piston has gone to the disengage
position after home or analysis. The number is set to zero when a force
calibration is performed. The number before the reset is logged in the
force calibration message.
Enable to print a report after each analysis.
Click to configure a printer attached to the instrument. See
Installation on page 6 -
Returns fields to the currently saved values.
Saves screen changes.
Serial number of the instrument.
6 Maintenance Menu Selection
6.
Printer
6 - 3
