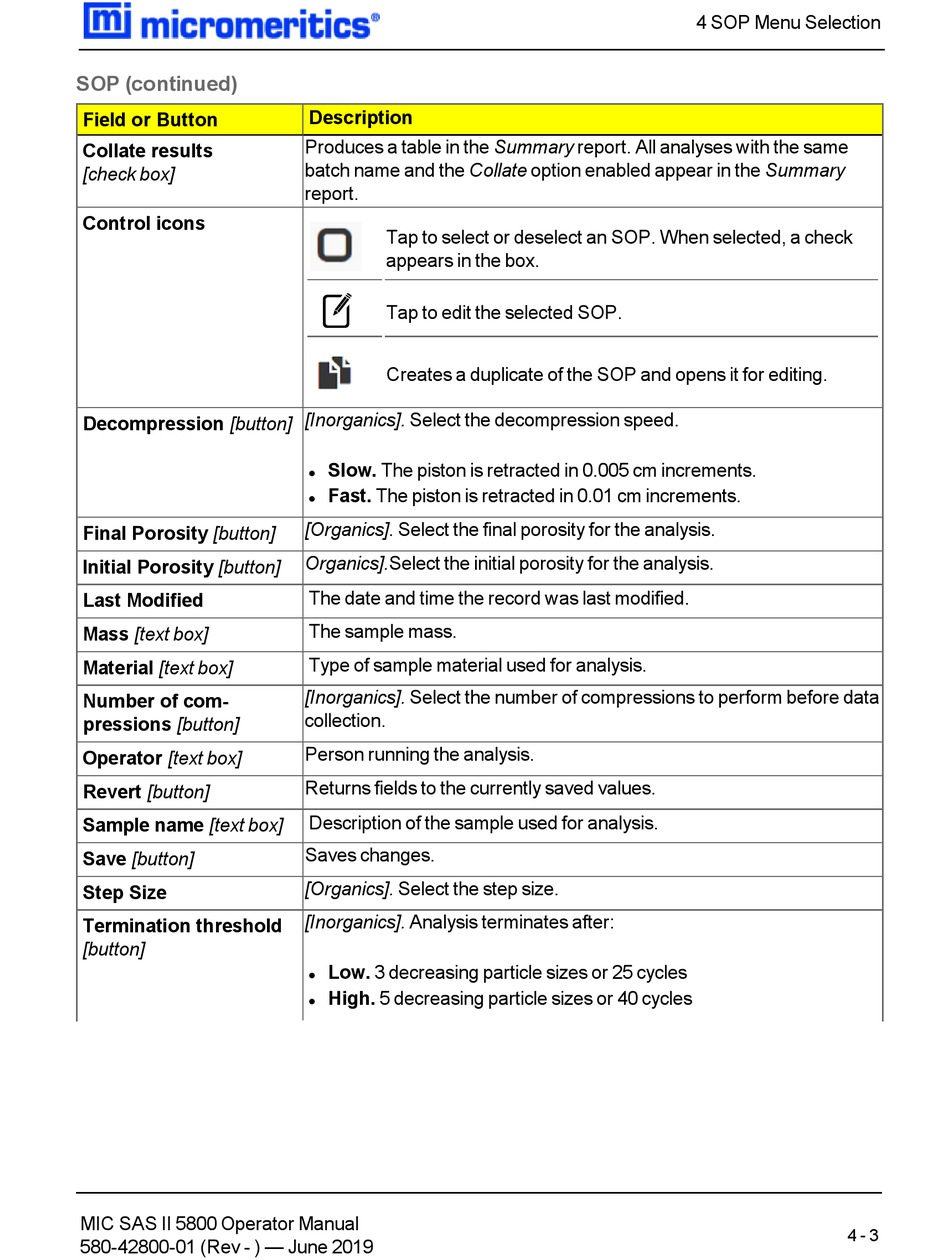

Micromeritics MIC SAS II 5800 Operator's Manual page 33

SOP (continued)
Field or Button
Collate results
[check box]
Control icons
Decompression [button] [Inorganics]. Select the decompression speed.
Final Porosity [button]
Initial Porosity [button]
Last Modified
Mass [text box]
Material [text box]
Number of com-
pressions [button]
Operator [text box]
Revert [button]
Sample name [text box]
Save [button]
Step Size
Termination threshold
[button]
MIC SAS II 5800 Operator Manual
580-42800-01 (Rev - ) — June 2019
Description
Produces a table in the Summary report. All analyses with the same
batch name and the Collate option enabled appear in the Summary
report.
Tap to select or deselect an SOP. When selected, a check
appears in the box.
Tap to edit the selected SOP.
Creates a duplicate of the SOP and opens it for editing.
Slow. The piston is retracted in 0.005 cm increments.
l
Fast. The piston is retracted in 0.01 cm increments.
l
[Organics]. Select the final porosity for the analysis.
Organics].Select the initial porosity for the analysis.
The date and time the record was last modified.
The sample mass.
Type of sample material used for analysis.
[Inorganics]. Select the number of compressions to perform before data
collection.
Person running the analysis.
Returns fields to the currently saved values.
Description of the sample used for analysis.
Saves changes.
[Organics]. Select the step size.
[Inorganics]. Analysis terminates after:
Low. 3 decreasing particle sizes or 25 cycles
l
High. 5 decreasing particle sizes or 40 cycles
l
4 SOP Menu Selection
4 - 3
