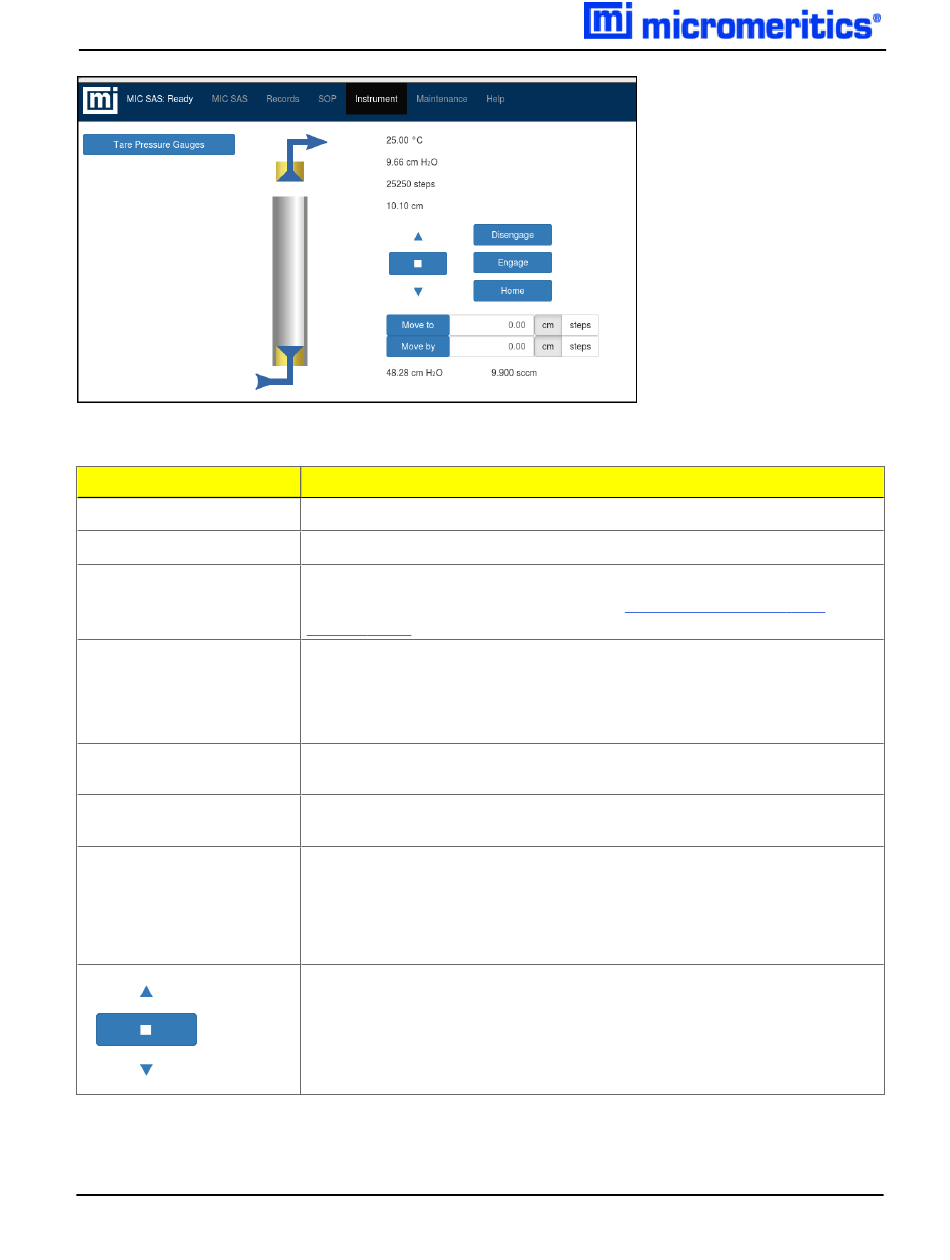

5 Instrument Menu Selection
Piston Controls
Field or Button
Disengage [button]
Engage [button]
Home [button]
Move to
[button] and [text box]
Move by
[button] and [text box]
Power Off
Shield Off
Tare Pressure Gauges
[button]
5 - 2
Description
Tap to raise the piston head above the sample tube.
Tap to lower the piston head to inside the sample tube.
Tap to lower the piston to the home position. Home position is where
there is no gap between the plugs. See
facing page.
Select units of steps or cm. Enter a position or increment. The piston
moves when the Move to
On-screen message that displays when power to the stepper motor
has been powered off.
On-screen message that displays when the safety shield is not in place.
All buttons are disabled until the safety shield is in place.
Use if either pressure reading is not close to zero when a sample tube
is not installed and no gas is flowing.
Tap to adjust the pressure offset. This button is disabled if gas is being
flowed or the piston is not in the disengage position.
Up arrow. Tap to move the piston up in increments.
Stop button. Tap to stop the piston movement.
Down arrow. Tap to move the piston down in increments.
Home Position on the
or Move by button is tapped.
