SiUS331708EA
2.2

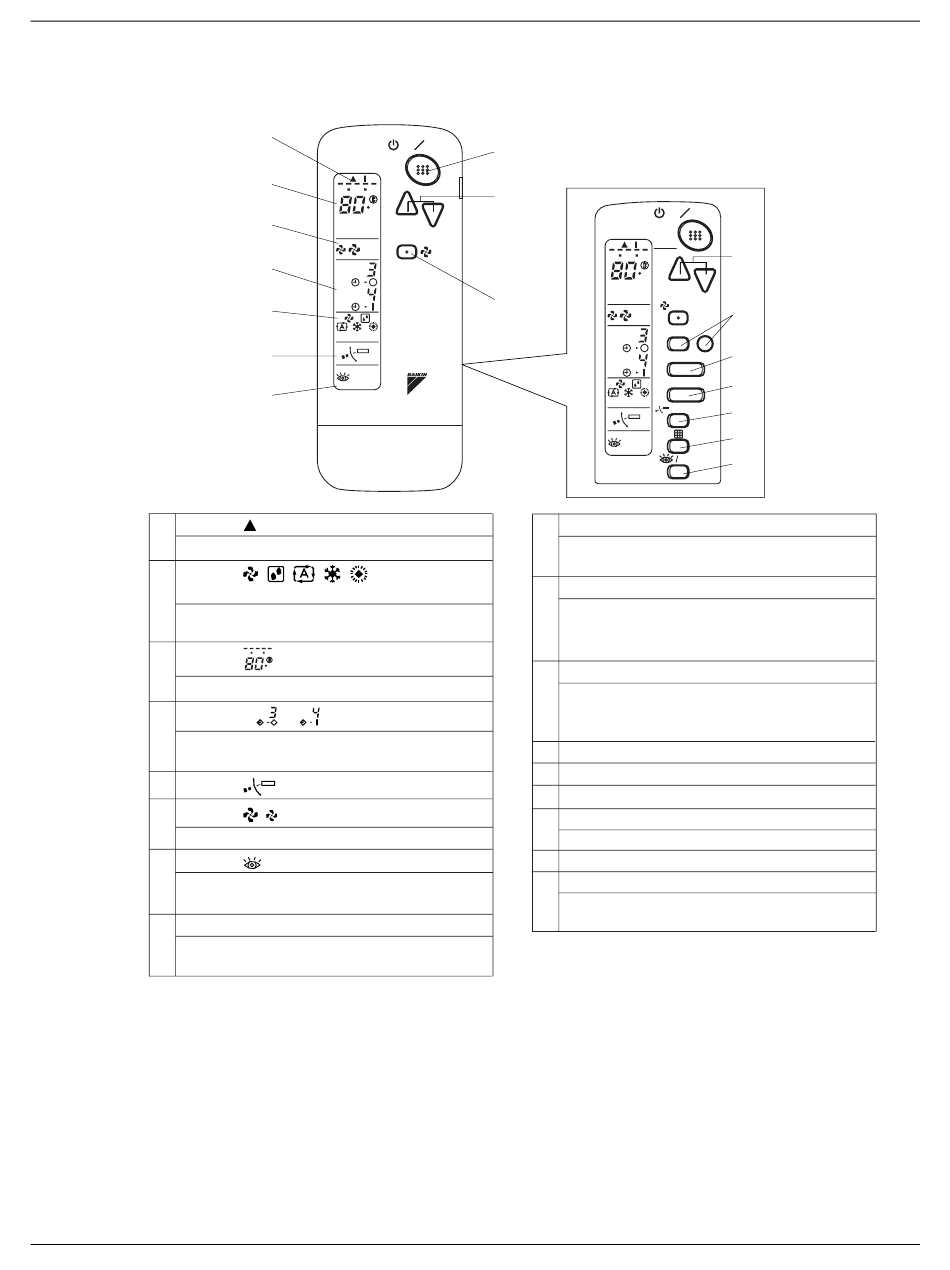

Wireless Remote Controller

DISPLAY
1
This lights up when a signal is being transmitted.
DISPLAY
(OPERATION MODE)
2
This display shows the current OPERATION
MODE.
DISPLAY
3
This display shows the set temperature.
DISPLAY
4
This display shows programmed time of the
system start or stop.
5
DISPLAY
DISPLAY
6
The display shows the set fan speed.
DISPLAY
7 When the INSPECTION/TEST button is pressed,
the display shows the system mode is in.
ON/OFF BUTTON
8
Press the button and the system will start. Press
the button again and the system will stop.
Remote Controller
1
ON OFF
3
H M L
DOWN
F
6
UP
4
hr.
hr.
2
5
TEST
7
(SIGNAL TRANSMISSION)
H M L
(SET TEMPERATURE)
F
(PROGRAMMED TIME)
hr. hr.
(AIRFLOW FLAP)
(FAN SPEED)
TEST (INSPECTION/ TEST)
8
10
FAN
H
9
hr.
hr.
FAN SPEED CONTROL BUTTON
9
Press this button to select the fan speed, HIGH or
LOW, of your choice.
TEMPERATURE SETTING BUTTON
Use this button for setting temperature (Operates
10
with the front cover of the remote controller
closed.)
PROGRAMMING TIMER BUTTON
Use this button for programming start and/or stop
11
time. (Operates with the front cover of the remote
controller opened.)
12
TIMER MODE START/STOP BUTTON
13
TIMER RESERVE/CANCEL BUTTON
14
AIRFLOW DIRECTION ADJUST BUTTON
OPERATION MODE SELECTOR BUTTON
15
Press this button to select operation mode.
16
FILTER SIGN RESET BUTTON
INSPECTION/TEST BUTTON
17
This button is used only by qualified service
persons for maintenance purposes.
Names and Functions
ON OFF
TEMP
TIME
11
M L
F
UP
DOWN
FAN
13
RESERVE CANCEL
12
TIMER
15
MODE
14
SWING
16
TEST
TEST
17
28
