Mounting the IP Controller

If you are not using a CR-S700R Robotic Camera Head, turn the IP controller
upside-down and attach the standalone base adapter to the IP controller's
top surface (now at the bottom). Use the screw holes at the bottom of the
standalone base adapter (3 each for 1/4" and 3/8" mounting screws) to
mount the IP controller on a tripod, multi-mount bar, etc.
Turn the standalone base adapter so the side with the thicker center is
facing the IP controller's power switch and secure it in place using hex head
bolts (M3, x4)
When using the screw holes for tripod mounting, make sure the length of the mounting screws does not exceed
10 mm (0.39 in.).

Connecting the Cables

Use the following diagram as a reference to connect the IP camera controller to the main capture camera and other
devices. It shows a connection example where the control PC and FTP server are connected using a PoE hub. For details
about the main capture camera, wide view camera and eyepiece camera, refer to their respective instruction manuals. If
using a CR-S700R Robotic Camera Head, refer to the CR-S700R instruction manual for details.

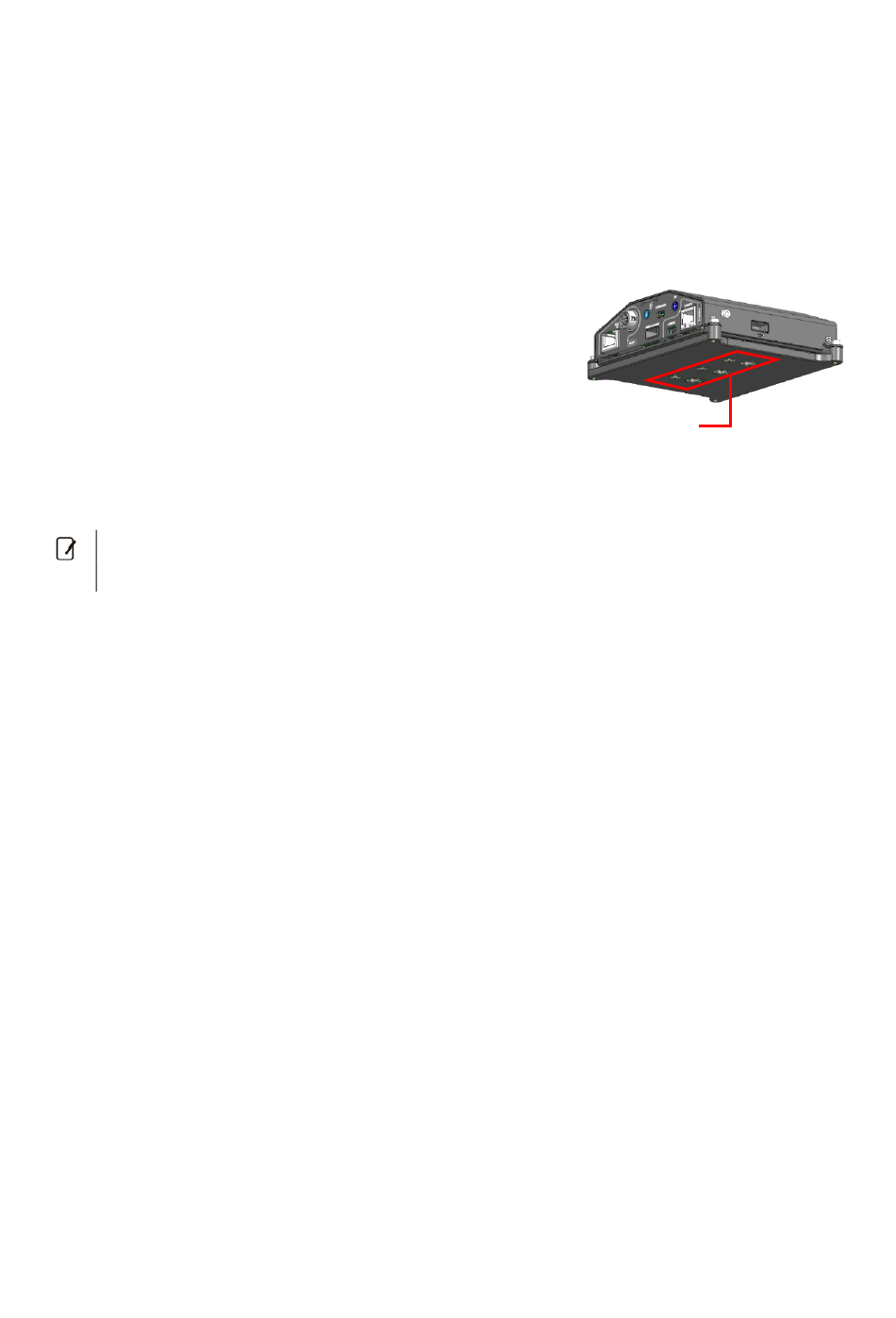

Screw holes for
tripod mounting
10
Mounting the IP Controller
