Attach The Projector Platform - StarTech.com ADJPROJCART User Manual

Align the holes in the Mounting Brackets with the holes
•
in the Support Pole and hold in place until the Screws are
installed in the following steps.

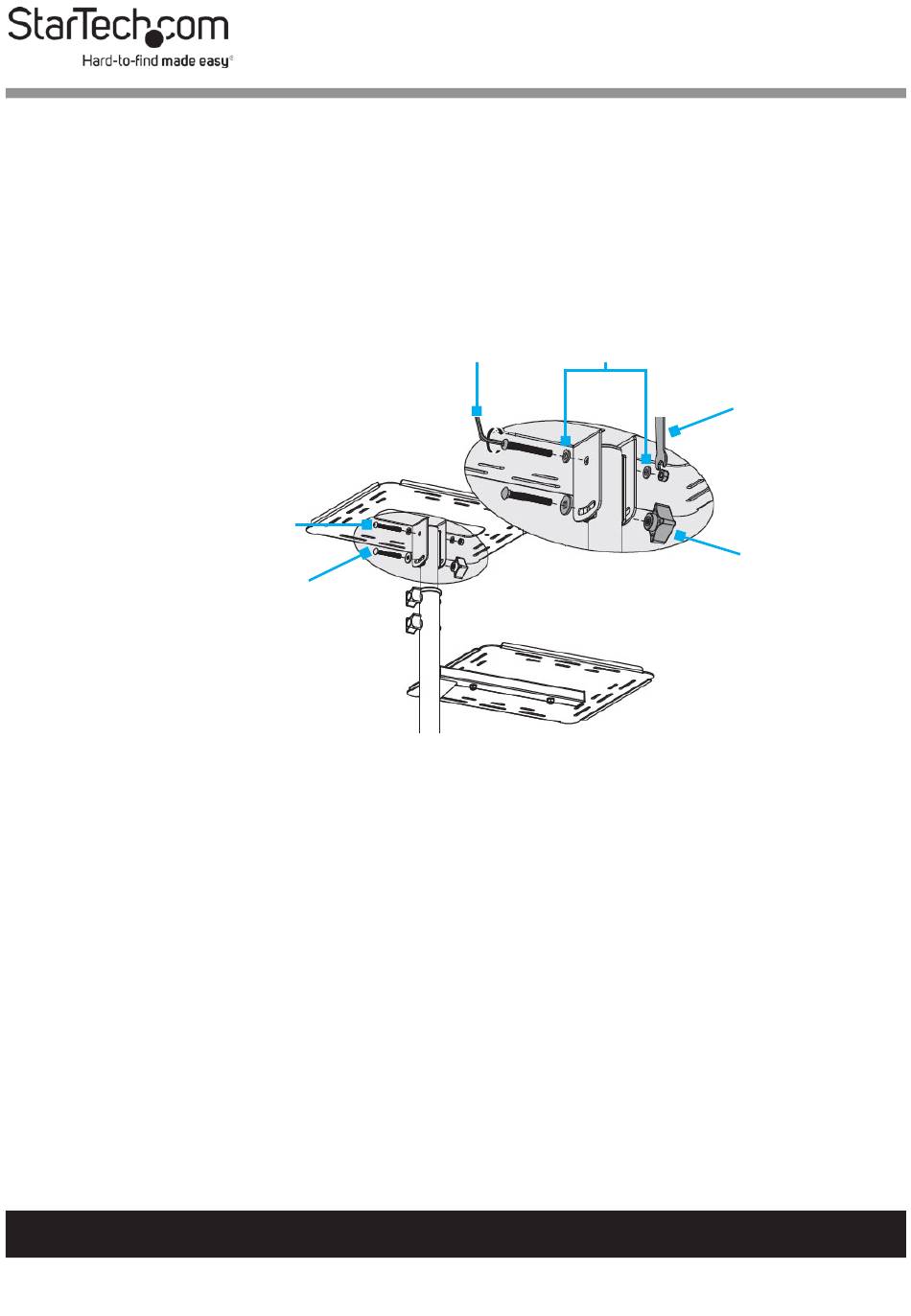

Attach the Projector Platform

M6 x 50
mm Screw
M6 x 50 mm Button
Head Screw
Slide the Projector Platform over the Mounting Brackets.
1.
Align the holes in the in the Projector Platform with the
holes in the Mounting Brackets. (Figure 8)
Slide one Type One Washer over one M6 x 50 mm Screw.
2.
Insert the M6 x 50 mm Screw through the top hole in the
3.
Projector Platform.
Slide one Type One Washer over the M6 x 50 mm Screw.
4.
Thread one Nut onto the M6 x 50 mm Screw and tighten by
5.
holding the Nut with the Wrench and by tightening the M6
x 50 mm Screw, using the Hex Key.
To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support
Type
One
Washers
Hex Key
Figure 8
12
Wrench
Knob
