Insert one M6 x 30 mm Screw through the hole in the top
2.
of the Laptop Platform and into the ledge portion of the
Support Pole.
Slide one Type One Washer onto the M6 x 30 mm Screw.
3.
Thread one Nut onto the M6 x 30 mm Screw and tighten
4.
by holding the Nut with the Wrench and by fastening the
M6 x 30 mm Screw, using an appropriate size Phillips Head
Screwdriver.
Note: Two people may be required to complete the step
Repeat steps 2-4 for the second M6 x 30 mm Screw.
5.
Attach the Knobs
Inner Portion
of Support Pole
To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support
Knobs
M6 x 50 mm Button

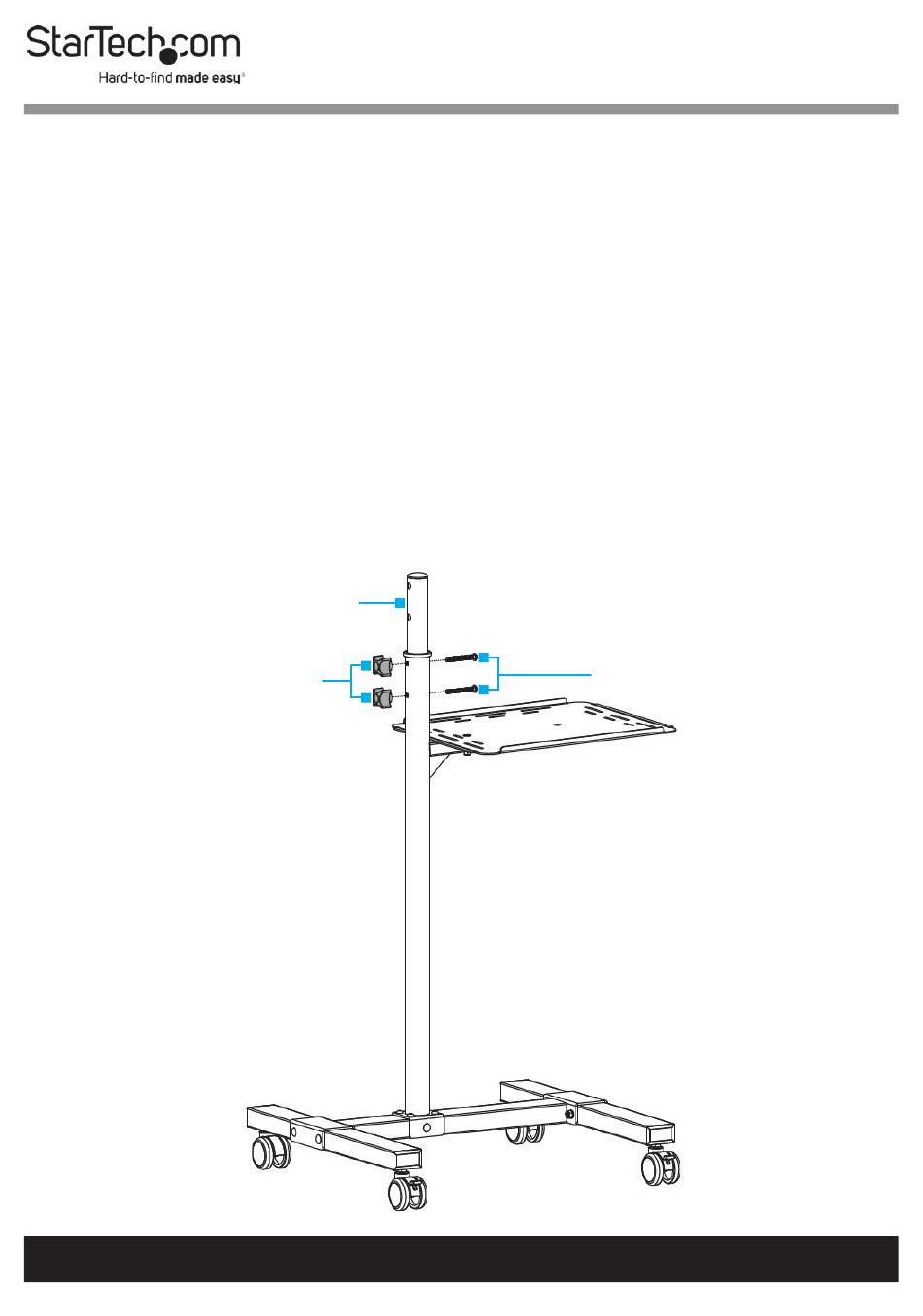

Figure 6
10
Head Screws
