StarTech.com ADJSHELFHD Quick Start Manual

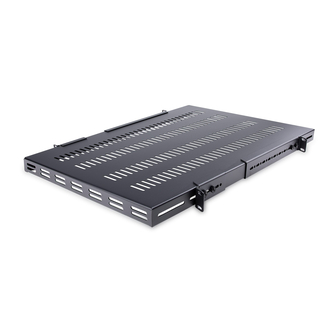

1U 4-Post Adjustable Mounting Depth Heavy Duty Shelf - 27.5in/700mm Depth

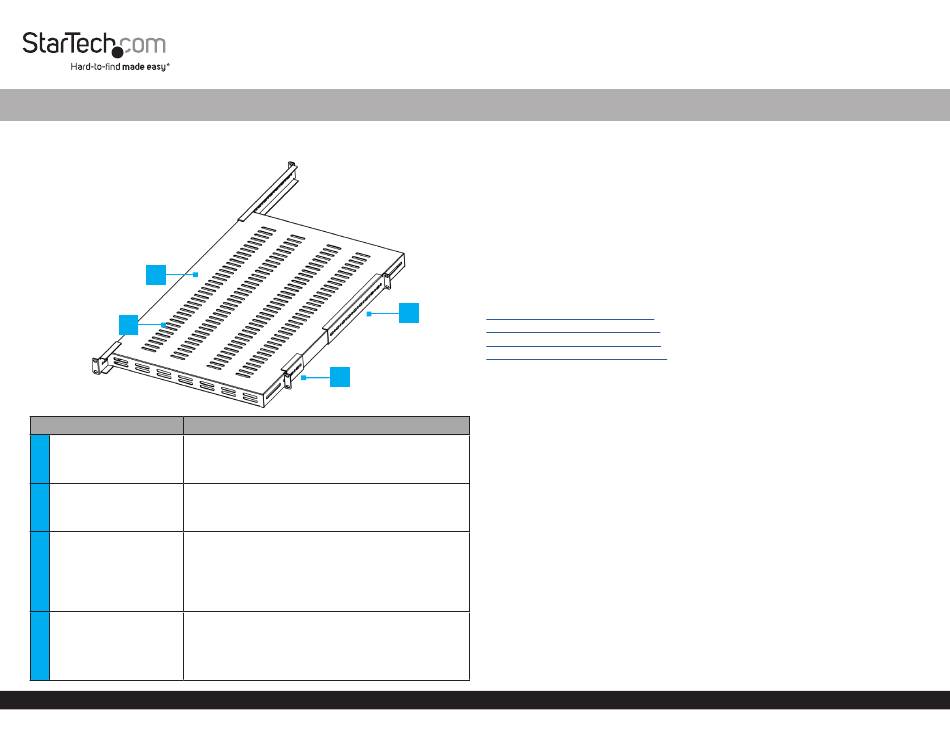

Product Diagram
ADJSHELFHD/ADJSHELFHD2/ADJSHELFHDV/ADJSHELFHDV2
1
2
Component
• Mount the server rack equipment
1
Shelf Surface
• Promote air flow for the mounted equipment.
2 Ventilation Holes
• Fasten Shelf to the Front Posts of the rack or
cabinet
• Holes on the sides of the Mounting Brackets allow
3 Front Mounting Brackets
for Depth Adjustment. M6x12 mm Panel Screws
(x 4)secure the Mounting Brackets to the desired
depth
To view manuals, FAQs, videos, drivers, downloads, technical drawings, and more, visit www.startech.com/support.
• Fasten Shelf to the Rear Posts of the rack or cabinet
• Holes on the sides of the Mounting Brackets allow
4
Rear Mounting Brackets for Depth Adjustment. M6x12 mm Panel Screws
(x 4)secure the Mounting Brackets to the desired
depth
To view manuals, FAQs, videos, drivers, downloads, technical drawings, and more, visit www.startech.com/support.
3
*Product may vary from image
Function
• The 1U Shelf Body is 27.5in (700mm) deep, not
including the adjustable mounting brackets
• Only applicable to ADJSHELFHDV /
ADJSHELFHDV2
Package Contents
• 1U Shelf Body x 1
• Front Mounting Brackets x 2
• Rear Mounting Brackets x 2
• M6x12 mm Screws x 8
• M6 Cage Nuts x 8 (Only included with Revision 2 or higher)
• M6 Plastic Washers x 8
• Quick-Start Guide x 1
Requirements
For the latest manuals, product information, technical specifications, and declarations
of conformance, please visit:
4
www.StarTech.com/ADJSHELFHD
www.StarTech.com/ADJSHELFHD2
www.StarTech.com/ADJSHELFHDV
www.StarTech.com/ADJSHELFHDV2
• For square cage holes, M6 cage nuts are included. For M6 threaded holes, no cage
nuts are needed. Refer to the manufacturer of the rack to determine the mounting
hole type
• Phillips head screwdriver
• Cage nut tool (Optional)
Warnings!
Read the entire Quick-Start Guide and ensure the instructions are fully understood
before assembling and using this product.
Before adding equipment to this product, ensure this product has been properly
mounted.
Never operate this product if parts are missing or damaged.
Ensure the weight of the equipment does not exceed the weight capacity of this
product. If the weight capacity is exceeded, personal injury or damage to the
equipment is possible. This product can support the following weight:
ADJSHELFHD: Rev 01 - up to 175lbs / 80kg; Rev 02 or above - up to 330lbs / 150kg.
ADJSHELFHDV: Rev 01 - up to 250lbs / 113kg; Rev 02 or above - up to 330lbs / 150kg.
ADJSHELFHD2: up to 330lbs / 150kg.
ADJSHELFHDV2: up to 330lbs / 150kg.
The maximum supported weight is only possible when all four mounting brackets are
properly mounted to all posts on a four post rack.
Arrange your equipment in the rack in descending order of weight. The lightest
equipment is installed at the top of the rack, and the heaviest is on the bottom.
Quick-Start Guide
Manual Revision: February 24, 2023 2:03 PM
