Determine the desired height setting for the Projector
1.
Platform. The Projector Platform can be adjusted from
37.4" (950 mm) to 57" (1450 mm) in pre-set increments.
Extend the inner portion of the Support Pole to the desired
2.
height setting.
Insert two M6 x 50 mm Button Head Screws through the
3.
two holes located in the outer portion of the Support Pole.
(Figure 6)
Thread one Knob onto each one of the M6 x 50 mm Button
4.
Head Screws and hand tighten.
Note: Do not overtighten the Knobs.

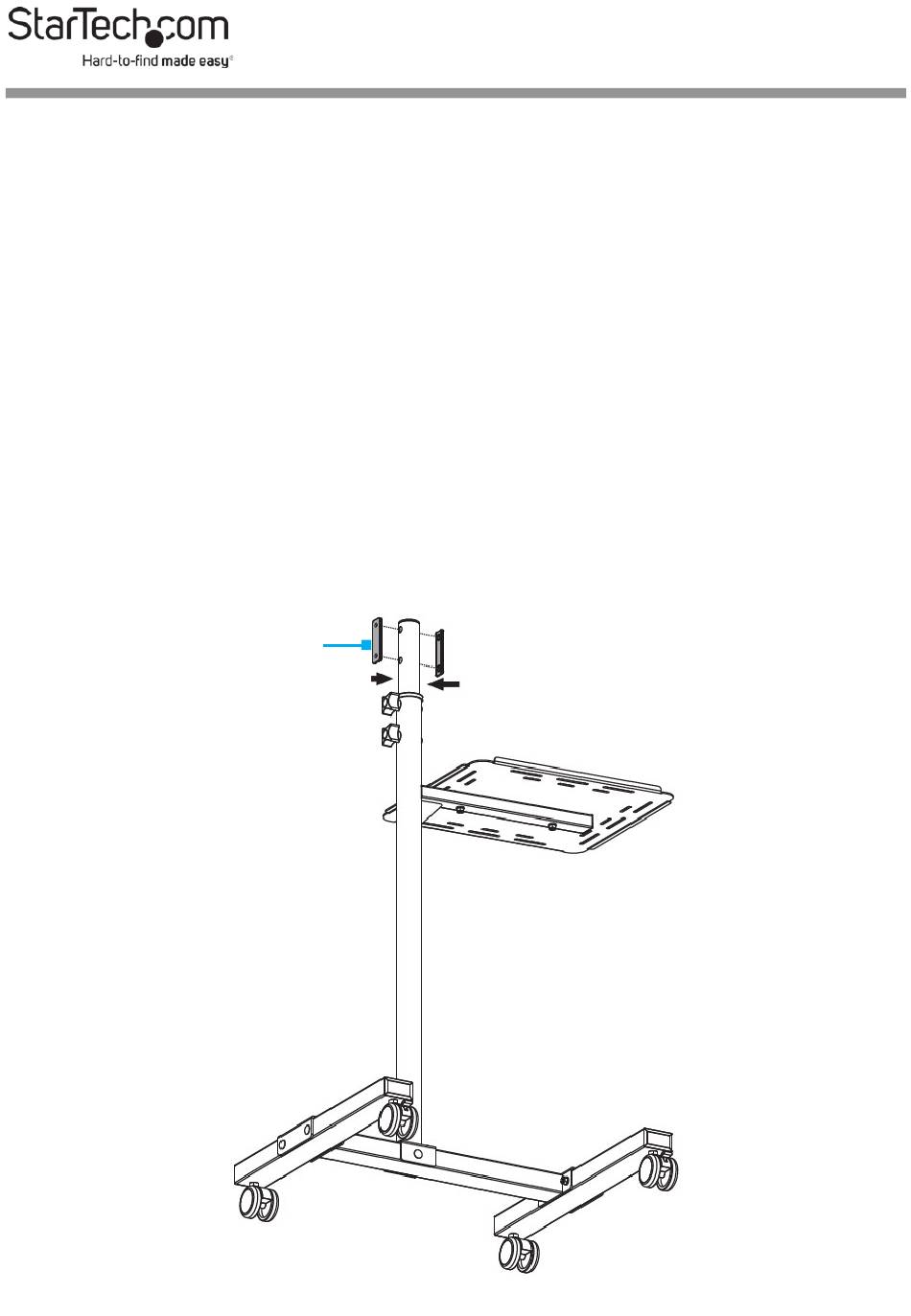

Attach the Mounting Brackets
Mounting
Bracket
Figure 7
11
