StarTech.com ADJDINKIT Quick Start Manual

2U Adjustable DIN Rail Rack Mount Kit

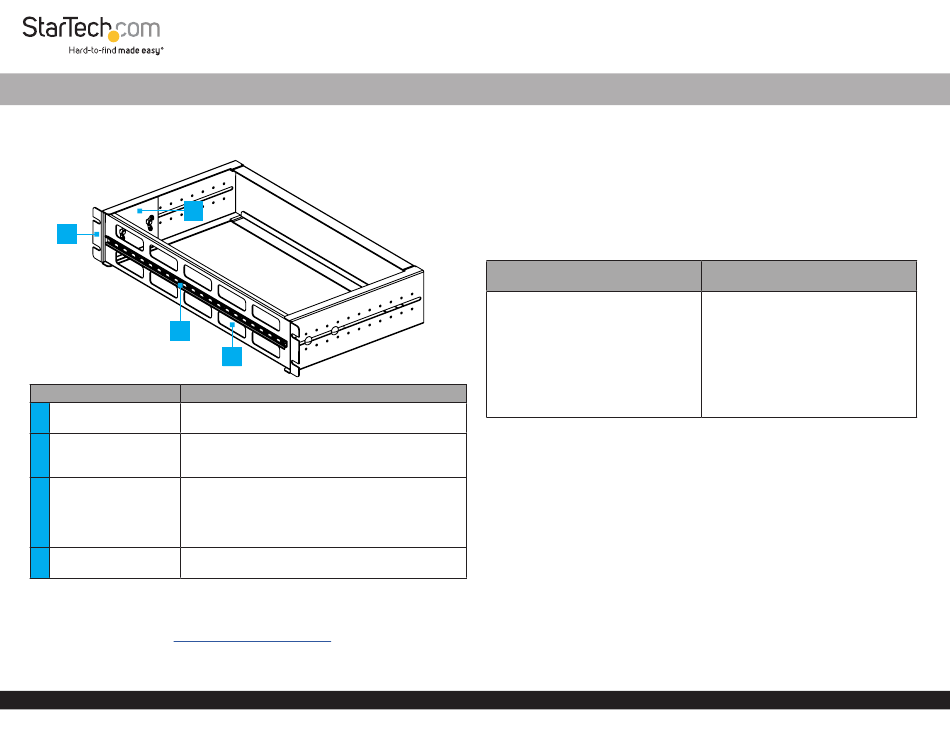

Product Diagram
ADJDINKIT
2
1
3
Component
• Used to fasten the Adjustable DIN Rail onto the
Rack Mount DIN Rail
1
Mounting Posts of a Rack
Bracket
• Loosen the Wing Nuts on either side and slide for
Adjustable DIN Rail
Variable Depth
2
Mount
• Allows for depths of up to 9.3 inches (23.6 cm)
• Use to securely attach DIN Rail Mountable Devices
onto a rack
3 DIN Rail • Three types of DIN Rails are included: Top-Hat,
Miniature Top-Hat, and G-Type
• DIN Rail Mounting Screws secure the DIN Rail
Cable Management • Allow cables to pass through to the various mounted
4
Holes devices
Product Information
For the latest manuals, product information, technical specifications, and declarations
of conformance, please visit: www.StarTech.com/ADJDINKIT
To view manuals, FAQs, videos, drivers, downloads, technical drawings, and more, visit www.startech.com/support.
To view manuals, FAQs, videos, drivers, downloads, technical drawings, and more, visit www.startech.com/support
4
*Product may vary from image
Function
How to Identify the LOT Code Revision Number
The Revision Number (Rev #) appears as the fifth and sixth digits of the LOT code,
located on the sticker affixed to the product and its packaging. If the LOT code sticker
is missing, the product is Rev 01.
Requirements
• Phillips Head Screwdriver
Package Contents
Revision 01
• Rack Mount DIN Rail Bracket x1
• Adjustable DIN Rail Mount with Top
Hat DIN Rail Pre-Installed x 1
• Miniature Top-Hat DIN Rail x 1
• G-Type Top-Hat DIN Rail x 1
• M5 Screws x 4
• M5 Cage Nuts x 4
• Carriage Bolts x 2
• DIN Rail Mounting Screws x 2
• Wing Nuts x 2
Warnings!
Ensure the weight of the equipment does not exceed the weight capacity of this
product. If the weight capacity is exceeded, personal injury or damage to the
equipment is possible. This product can support the following weight: up to 27 lb
(12.5 kg).
Installation
1. Determine the Mounting Depth according to your application.
2. Loosen the Wing Nuts (x 4) on either side of the Adjustable DIN Rail Mount by
hand. Slide the Adjustable DIN Rail Mount to match the desired Mounting Depth.
Tighten the Wing Nuts by hand.
3. Find a suitable location on the Rack to mount the Rack Mount DIN Rail Bracket.
The Rack Mount DIN Rail Bracket requires 2U of Mounting Space.
4. Follow the Rack's Manufacturer Instructions to install the M5 Cage Nuts on the
Mounting Posts.
Note: M5 Screws and Cage Nuts are provided for convenience. Alternative mounting
Quick-Start Guide
Revision 02 or Above
• Rack Mount DIN Rail Bracket x1
• Adjustable DIN Rail Mount with Top
Hat DIN Rail Pre-Installed x 1
• Miniature Top-Hat DIN Rail x 1
• G-Type Top-Hat DIN Rail x 1
• M5 Screws x 4
• M5 Cage Nuts x 4
• Carriage Bolts x 4
• DIN Rail Mounting Screws x 4
• Wing Nuts x 4
Manual Revision: August 8, 2023 8:47 AM
