StarTech.com ADJ-TABLET-STAND-W Quick Start Manual

Universal Tablet Desk Stand - White

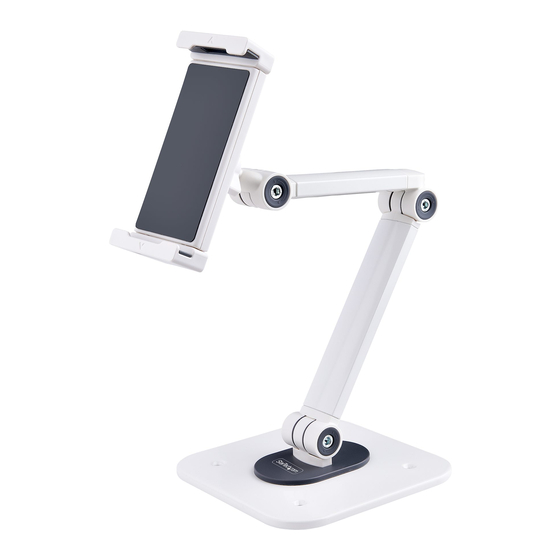

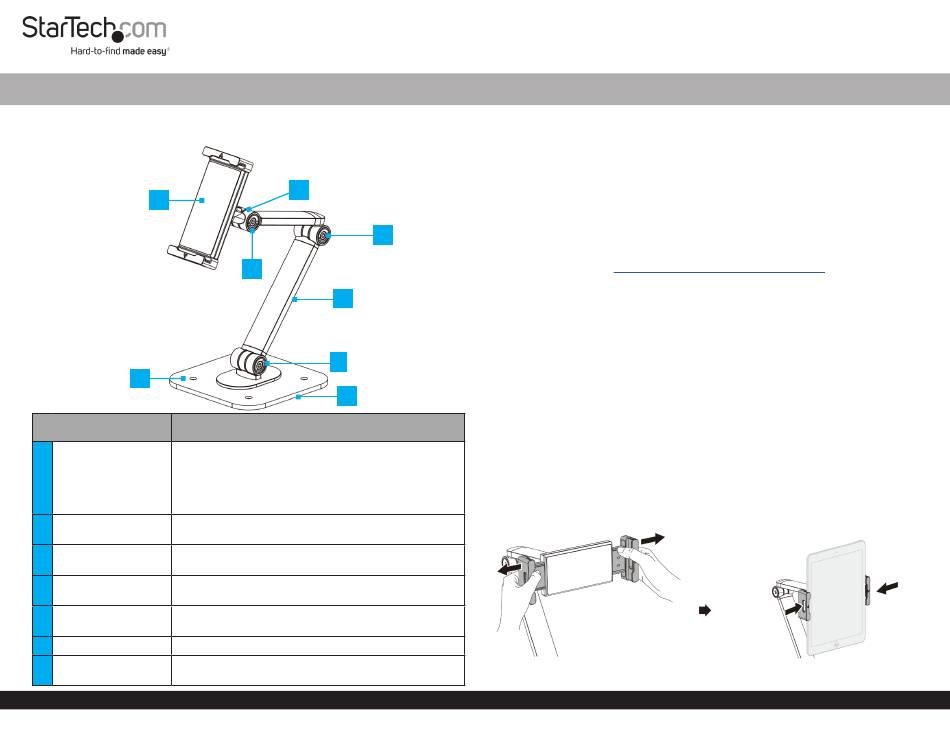

Product Diagram (ADJ-TABLET-STAND-W)
Front View
1
6
*Product may vary from image
Component
• For up to 12.9 in Tablets. Holders on either side
support the Tablet in place
• Width range from 5 to 8 in (12.8 to 22.4 cm)
1 Clamp
• Maximum thickness 0.4 in (1.1 cm)
• Allow to rotate 360°, up and down, and side to side
Rotation Adjustment • Varies the Rotation resistance of the Clamp or fixes it
2
Knob on a specific position
Clamp Tilt
3 • Adjust the Resistance of the Tilt Angle of the Clamp
Adjustment Screw
Support Arm Tilt • Adjust the Resistance of the Tilt Angle of the Upper
4
Adjustment Screws and Lower sections of the Support Arm
• Supports the weight of the Tablet and provides
5
Support Arm
Height and Tilt Adjustment
6 • Allow to fix the Tablet Stand on a permanent location
Mounting Holes
• Supports the Assembly in place. Foam Pads at the
7 Base
bottom protect the desk or table surface
To view manuals, FAQs, videos, drivers, downloads, technical drawings, and more, visit www.startech.com/support
2
4
3
5
4
7
Function
Package Contents
• Tablet Stand x 1
• 4.2x19 mm Wood Screws x 4
• 3 mm Hex Key x 1
• 5 mm Hex Key x 1
• Quick-Start Guide x 1
Requirements
For the latest manuals, product information, technical specifications, and declarations of
conformance, please visit: www.startech.com/ADJ-TABLET-STAND-W
• Phillips head screwdriver
Operation
WARNINGS!
Do not exceed the weight capacity of this product. Overloading this product might
result in injury or property damage. This product can support the following weight: up
to 2.2 lb (1 kg).
When adjusting the tilt or height of this product, ensure that the mounted equipment
is properly secured and the weight is fully supported. Failure to follow these guidelines
may result in property damage and/or personal injury.
When not fixed to a surface, always use two hands to ensure a controlled movement
when adjusting the height or tilt angle of this product to prevent tipping it over.
Is recommended to remove any protective case from the Tablet to fit properly on the
Holders.
1. Slide the Holders outwards to make enough room to mount the Tablet Vertically
on the Clamp. If the Tablet is Small enough, it can be mounted Horizontally too.
Quick-Start Guide
Figure 1
