AJAX Button User Manual

Wireless panic button
Hide thumbs Also See for Button:

Advertisement

Quick Links

Download this manual

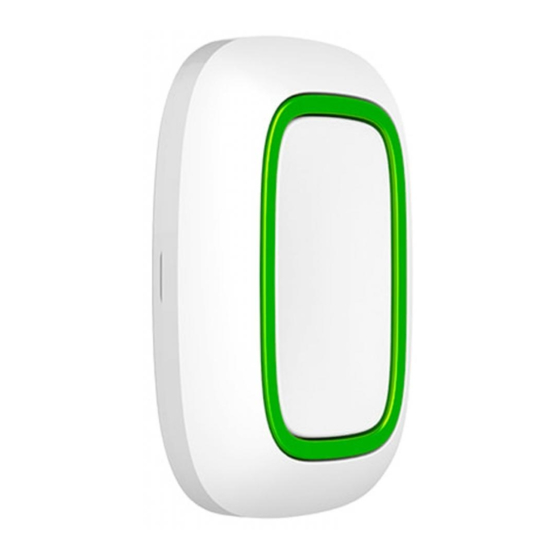

Button is a wireless panic button with protection against accidental press and
additional mode to control
Button is compatible with
integration modules!
Button is connected to the security system and configured via
Android, macOS, and Windows. The users are alerted of all alarms and events via
push notifications, SMS, and phone calls (if enabled).
Buy panic button Button
Functional elements
Button user manual
Updated July 22, 2024
automation devices
Ajax hubs
only. No support for
.
ocBridge Plus
Ajax apps
and
uartBridge
on iOS,

Advertisement

loading
Need help?

Need help?

Do you have a question about the Button and is the answer not in the manual?

Questions and answers

Related Manuals for AJAX Button

Summary of Contents for AJAX Button

  • Page 1 Button user manual Updated July 22, 2024 Button is a wireless panic button with protection against accidental press and additional mode to control automation devices Button is compatible with Ajax hubs only. No support for ocBridge Plus uartBridge integration modules! Button is connected to the security system and configured via...

  • Page 2: Operating Principle

    Ajax automation devices with a short or long press of a button. In panic mode, the Button can operate as a panic button and signal about a threat, or notify of the need for auxiliary help, or inform about the intrusion, fire, gas alarm, or leakage.

  • Page 3: Adding To The System

    (for example, walls or floors) will reduce this distance. Button is easy to carry around. You can always keep it on a wrist or a necklace. The device is resistant to dust and splashes.
  • Page 4 3. Name the device, scan its QR code (located on the package) or enter it manually, select a room and a group (if group mode is enabled). 4. Click Add and the countdown will begin. 5. Hold the button for 7 seconds. When the Button is added, the LEDs will flash green once.
  • Page 5 Button stops transmitting commands to the old hub. Note that after being added to the new hub, the Button is not automatically removed from the device list of the old hub. This must be done manually through the Ajax application.
  • Page 6 Displays the operating mode of the button. Three modes are available: Panic. Operating mode Control. Mute Fire Alarm. Displays current brightness level of indicator light: Disabled (LED indication is disabled). LED Brightness Low. Max. Displays the selected type of protection against accidental activation: Off —...
  • Page 7 The setting is available when the Battery charge auto-check toggle is enabled. Displays the operating mode of the button. Three modes are available: Panic — sends an alarm when pressed. Control — controls automation devices by short or long (3 sec) pressing.
  • Page 8 Off — protection disabled. Accidental press protection Long press — in order to send an alarm, you need to press and hold the button for more (displayed only for Panic and Mute Fire Alarm than 1.5 seconds. operating modes) Double press —...
  • Page 9 Additionally, the panic button of a deactivated device will be disabled. Learn more Disconnects Button from the hub and deletes its Delete device settings. Operating indication 00:00 00:03 Button status is indicated with red or green LED indicators.

  • Page 10: Use Cases

    Use cases Panic Mode In the panic button mode, Button can call security or help, as well as alert of an emergency by activating sirens and sending other users a notification in the app. In the Button settings, you can select one type of alarm out of eight:...

  • Page 11: Control Mode

    To bind an automation device action to a long or short press of a Button: 1. Open the Ajax app and go to the Devices tab. 2. Select Button in the list of devices and go to settings by clicking the gear icon...
  • Page 12 3. Select the Control mode in the Operation mode section. Click on the actual Button device to save the changes 4. Go to the Scenarios menu. Click Create Scenario if you are creating a scenario for the first time, or Add Scenario if scenarios have already been created in the security system.
  • Page 13 . Select the automation device to execute the action. 7. Enter the Scenario Name and specify the Device Action to be executed by pressing the Button. Switch on Switch off Switch the state...
  • Page 14 The Interconnected Fire Detectors Alarm have already propagated — by the first press of the Button, all fire detectors sirens are muted, except for those that registered the alarm. Pressing the button again mutes the remaining detectors.
  • Page 15 To install the button in the holder: 1. Choose a location to install the holder. 2. Press the button to test whether the commands can reach the hub. If not, choose another location or use a radio signal range extender...

  • Page 16: Maintenance

    Buy Holder How to carry around Button The button is convenient to carry with you thanks to a special hole on its body. It can be worn on the wrist or around the neck, or hung on a key ring.

  • Page 17: Technical Specifications

    The battery level value is updated each time the button is pressed. When the battery has run down, the user will receive a notification in the Ajax app, and the LED indicator will smoothly light up red and go out each time the button is pressed.
