AJAX Button User Manual

Panic button
Hide thumbs Also See for Button:
Table of Contents

Advertisement

Quick Links

Download this manual
18/10/2019
Devices

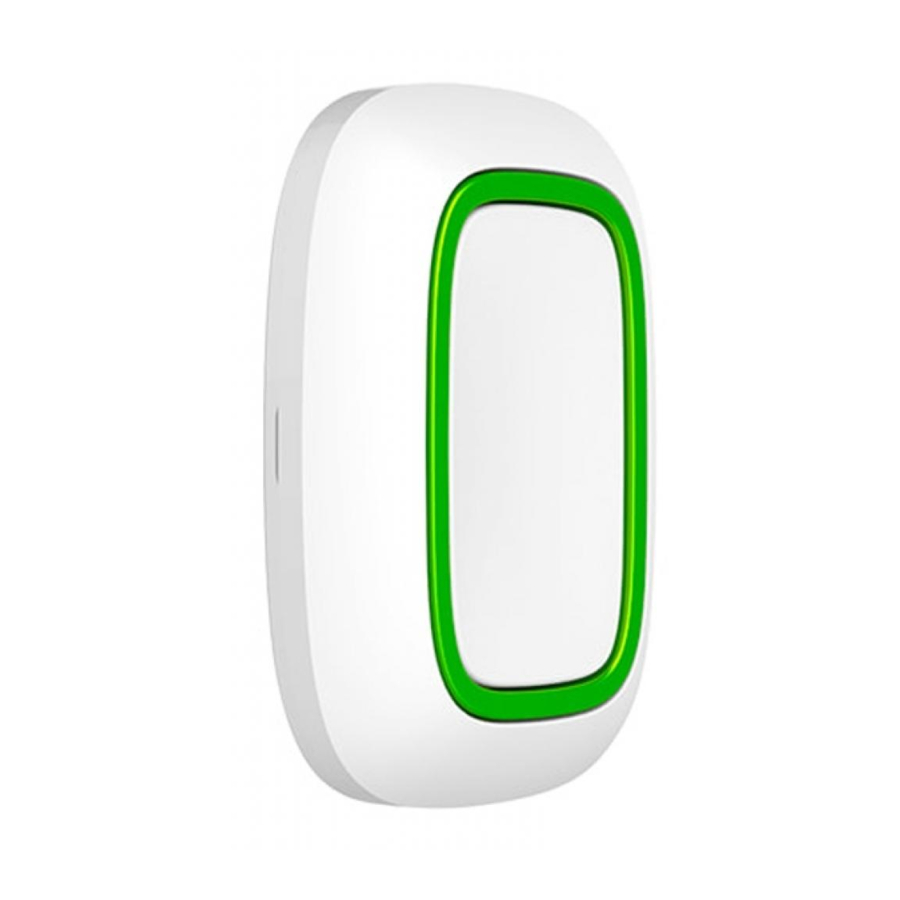

Button is a wireless panic button with protection against accidental activation. It can
operate for up to 5 years on the bundled battery. It is connected to the Ajax security
system via the Jeweller security protocol, with a transmission distance of up to 1300
m without obstacles.
Button only connects to
uartBridge
integration modules!
The button is linked to the security system and con gured via
Windows, macOS, iPhone and Android smartphones. The users are alerted about all
alarms and events via push noti cations, SMS, and phone calls (if enabled).
https://support.ajax.systems/en/manuals/button/?_ga=2.98140895.1985800128.1571327333-1921628607.1570693416
Controls
Button User Manual
Updated October 18, 2019
Ajax hubs
. No provision is made for connection to the
Button User Manual - Ajax Support
ocBridge Plus
and
for
Ajax applications
1/12

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Button and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for AJAX Button

Summary of Contents for AJAX Button

  • Page 1 Button is a wireless panic button with protection against accidental activation. It can operate for up to 5 years on the bundled battery. It is connected to the Ajax security system via the Jeweller security protocol, with a transmission distance of up to 1300 m without obstacles.

  • Page 2: Functional Elements

    Functional elements Alarm button Indicator lights Button mounting hole Operating principle Button is a wireless panic button that, when pressed, transmits an alarm to users, as well as to the security company’s CMS. https://support.ajax.systems/en/manuals/button/?_ga=2.98140895.1985800128.1571327333-1921628607.1570693416 2/12...
  • Page 3 (for example, walls or oors) will reduce this distance. Button is easy to carry around. You can always keep it on a wrist or a neckless. The device is resistant to dust and splashes.
  • Page 4 Data is updated only by pressing the Button. The Button only works with one hub. When connected to a new hub, the button Button stops transmitting commands to the old hub. Note that after being added to the new hub, the Button is not automatically removed from the device list of the old hub.
  • Page 5 18/10/2019 Button User Manual - Ajax Support Parameter Value Button battery charge level. There are two statuses: Battery OK Battery charge Battery low This displays the operating mode of the button. There are two modes: Button operating mode Panic button SmartButton (in development) https://support.ajax.systems/en/manuals/button/?_ga=2.98140895.1985800128.1571327333-1921628607.1570693416...
  • Page 6 Off — protection disabled. Delay when pressing — in order to send alarm Protection against accidental activation you should hold the button down for more than 1.5 seconds. Double-pressing — in order to send alarm you should double-press on the button with a pause of no more than 0.5 seconds.
  • Page 7 Name of the device, can be changed The choice of the virtual room that the device is Room assigned to This displays the operating mode of the button. There are two modes: Button operating mode Panic Button — sends an alarm when pressed SmartButton (in development) https://support.ajax.systems/en/manuals/button/?_ga=2.98140895.1985800128.1571327333-1921628607.1570693416...
  • Page 8 Button rmware version Device ID Note that any changes to the settings will be applied on the second click! Operating indication Button status is indicated with red or green LED indicators. Category Indication Event The button is not registered in...

  • Page 9: Use Cases

    To install on a at surface (for example, under the table), secure the Button with double-sided adhesive tape. To carry the Button on the strap: attach the strap to the Button using the mounting hole in the main body of the Button.

  • Page 10: Technical Speci Cations

    The battery level value is not updated on a regular basis, but only updates after pressing the button. When the battery has run down, the user will receive a noti cation in the Ajax app, and the LED will steadily light up red and go out each time the button is pressed.

  • Page 11: Complete Set

    Double-sided tape Quick Start Guide Warranty Get started The warranty for the products manufactured by the AJAX SYSTEMS Select set MANUFACTURING limited liability company is valid for 2 years after purchase and Security Comparison does not extend to the bundled battery.
  • Page 12 18/10/2019 Button User Manual - Ajax Support All ideas Privacy policy End user agreement Warranty © 2019 Ajax Systems Inc. All rights reserved https://support.ajax.systems/en/manuals/button/?_ga=2.98140895.1985800128.1571327333-1921628607.1570693416 12/12...
