AJAX Button User Manual

Hide thumbs Also See for Button:

Advertisement

Quick Links

Download this manual

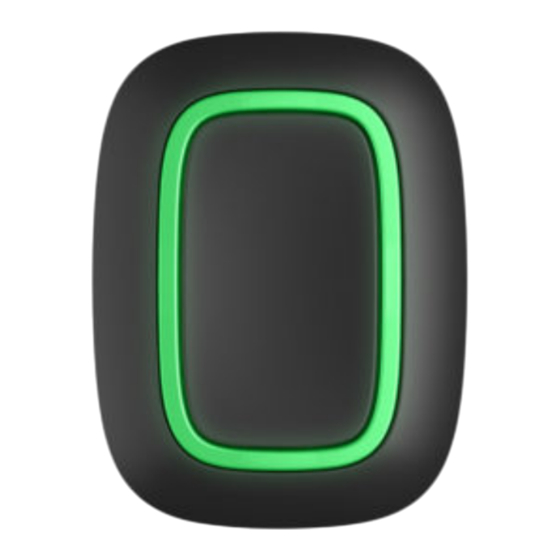

Button is a wireless panic button with protection against accidental press and
additional mode to control
Button is compatible with
integration modules!
Button is connected to the security system and configured via
iOS, Android, macOS, and Windows. The users are alerted of all alarms and
events via push notifications, SMS, and phone calls (if enabled).
Buy panic button Button
Functional elements
Button User Manual
Updated May 25, 2022
automation devices
Ajax hubs
only. No support for
.
ocBridge Plus
and
uartBridge
Ajax apps
on

Advertisement

loading
Need help?

Need help?

Do you have a question about the Button and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for AJAX Button

Summary of Contents for AJAX Button

  • Page 1 Button User Manual Updated May 25, 2022 Button is a wireless panic button with protection against accidental press and additional mode to control automation devices Button is compatible with Ajax hubs only. No support for ocBridge Plus uartBridge integration modules! Button is connected to the security system and configured via...

  • Page 2: Operating Principle

    Ajax automation devices with a short or long press of a button. In panic mode, the Button can operate as a panic button and signal about a threat, or notify of the need for medical help, or inform about the intrusion, fire, gas alarm, or leakage..
  • Page 3 (for example, walls or floors) will reduce this distance. Button is easy to carry around. You can always keep it on a wrist or a necklace. The device is resistant to dust and splashes.
  • Page 4 (if group mode is enabled). 3. Click Add and the countdown will begin. 4. Hold the button for 7 seconds. When the Button is added, the LEDs will flash green once. For detection and pairing, the Button must be located within the hub radio communication zone (on the single protected object).

  • Page 5: Range Extender

    Accidental press protection Long press — in order to send alarm you (displayed only for Panic and Mute should hold the button down for more than Interconnected Fire Alarm operating modes) 1.5 seconds. Double-pressing — in order to send alarm you should double-press on the button with a pause of no more than 0.5 seconds.

  • Page 6: Learn More

    Name of the device, can be changed The choice of the virtual room that the device is Room assigned to Displays the operating mode of the button. Three modes are available: Panic — sends an alarm when pressed Control — controls automation devices by...
  • Page 7 Accidental press protection Long press — in order to send alarm you (displayed only for Panic and Mute should hold the button down for more than Interconnected Fire Alarm operating modes) 1.5 seconds. Double press — in order to send alarm you should double-press on the button with a pause of no more than 0.5 seconds.

  • Page 8: Battery Replacement

    00:00 00:03 Button status is indicated with red or green LED indicators. Category Indication Event The button is not registered in Green LEDs flash 6 times any security system Linking to security system Lights up green for a few Adding a button to the...

  • Page 9: Control Mode

    In the panic button mode, Button can call security or help, as well as alert of an emergency by activating sirens and sending other users a notification in the app. In the Button settings, you can select one type of alarm out of eight:...
  • Page 10 Ajax app and go to the Devices tab. 2. Select Button in the list of devices and go to settings by clicking the gear icon 3. Select the Control mode in the Button mode section. Click on the actual Button device to save the changes 4.
  • Page 11 6. Select the automation device to execute the action. 7. Enter the Scenario Name and specify the Device Action to be executed by pressing the Button. Switch on Switch off Switch the state...
  • Page 12 The Interconnected Fire Detectors Alarm have already propagated — by the first press of the Button, all fire detectors sirens are muted, except for those that registered the alarm. Pressing the button again mutes the remaining detectors.
  • Page 13 To install the button in the holder: 1. Choose a location to install the holder. 2. Press the button to test whether the commands can reach the hub. If not, choose another location or use a radio signal range extender...

  • Page 14: Maintenance

    Buy Holder How to carry around Button The button is convenient to carry with you thanks to a special hole on its body. It can be worn on the wrist or around the neck, or hung on a key ring.

  • Page 15: Technical Specifications

    The battery level value is updated each time the button is pressed. When the battery has run down, the user will receive a notification in the Ajax app, and the LED indicator will smoothly light up red and go out each time the button is pressed.

  • Page 16: Complete Set

    3. Double-sided tape 4. Quick Start Guide Warranty The warranty for the products manufactured by the AJAX SYSTEMS MANUFACTURING limited liability company is valid for 2 years after purchase and does not extend to the bundled battery. If the device does not function properly, we recommend that you first contact the support service as technical issues can be resolved remotely in most cases.
  • Page 17 Phone number: 0 (800) 331 911 Subscribe to the newsletter about safe life. No spam Email Subscribe...
