Enabling ROI Masking
To display the ROI Masking Toolbar, from the FrontRunner™ View menu,
click Display Tools > Mask Tools.

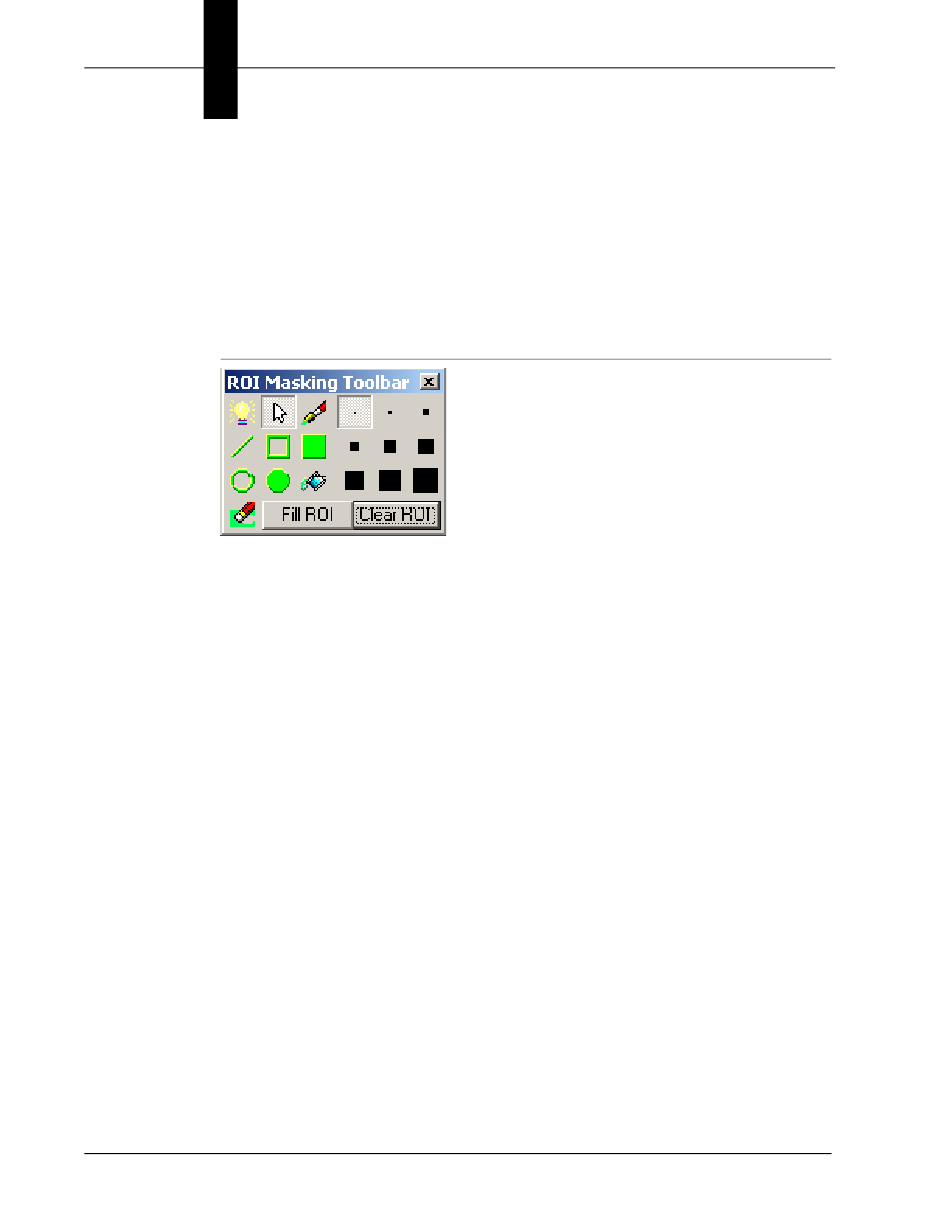

FrontRunner™ displays the ROI Masking Toolbar, as shown in
Figure 2–33.
FIGURE 2–33.
Using this floating toolbar, you can select different drawing tools and draw
a mask in the ROI of a mask-oriented tool.
You can enable the mask capability of an appropriate tool by selecting the
tool in the Step Tree. The Lightbulb button in the Masking Toolbar is
enabled. When you click it, it "lights up", enables the mask in the tool and
enables the drawing tool buttons of the toolbar. You can then select any
of the drawing tools, and draw the mask using the mouse or select the
"pointer" to return to standard tool selection/insertion with the mouse.
