Epilog Laser HELIX Instructions For Using Manual page 2

6​ . Press ​ [ FOCUS]​ , then attach​
∆ ​
height using ​ [ ​ ] ​ and ​ [ ​
touching your material.
focus tool ​
0​ . Remove the​
SOFTWARE
D​ . Create image using any software that can export to ​
E​ . Go to cutting software (e.g. Rhinoceros or Illustrator), and import the .dxf file. Make sure
your lines are joined together, this will ensure that the laser works sequentially around the
drawing (rather than moving randomly between lines).
IN RHINO:
In Rhinoceros, choose ​ F ILE​ > ​ P RINT​ . Click on ​ S ET​ to define the bed size. Place it
over the top of your drawing. Note that in Rhino you can adjust the colour/line
thickness of various LAYERS, so if you want to change lines from vector (cut) to
raster (engrave), adjusting the colours/line thicknesses is the best way to do this.
magnetic focus tool (see figure 3 below) ​
∇ ​
] ​ (up and down arrows) until the height tool on the head is just
and press ​ [ RESET]​ to move the head back to the starting position​ .
a nd adjust the bed

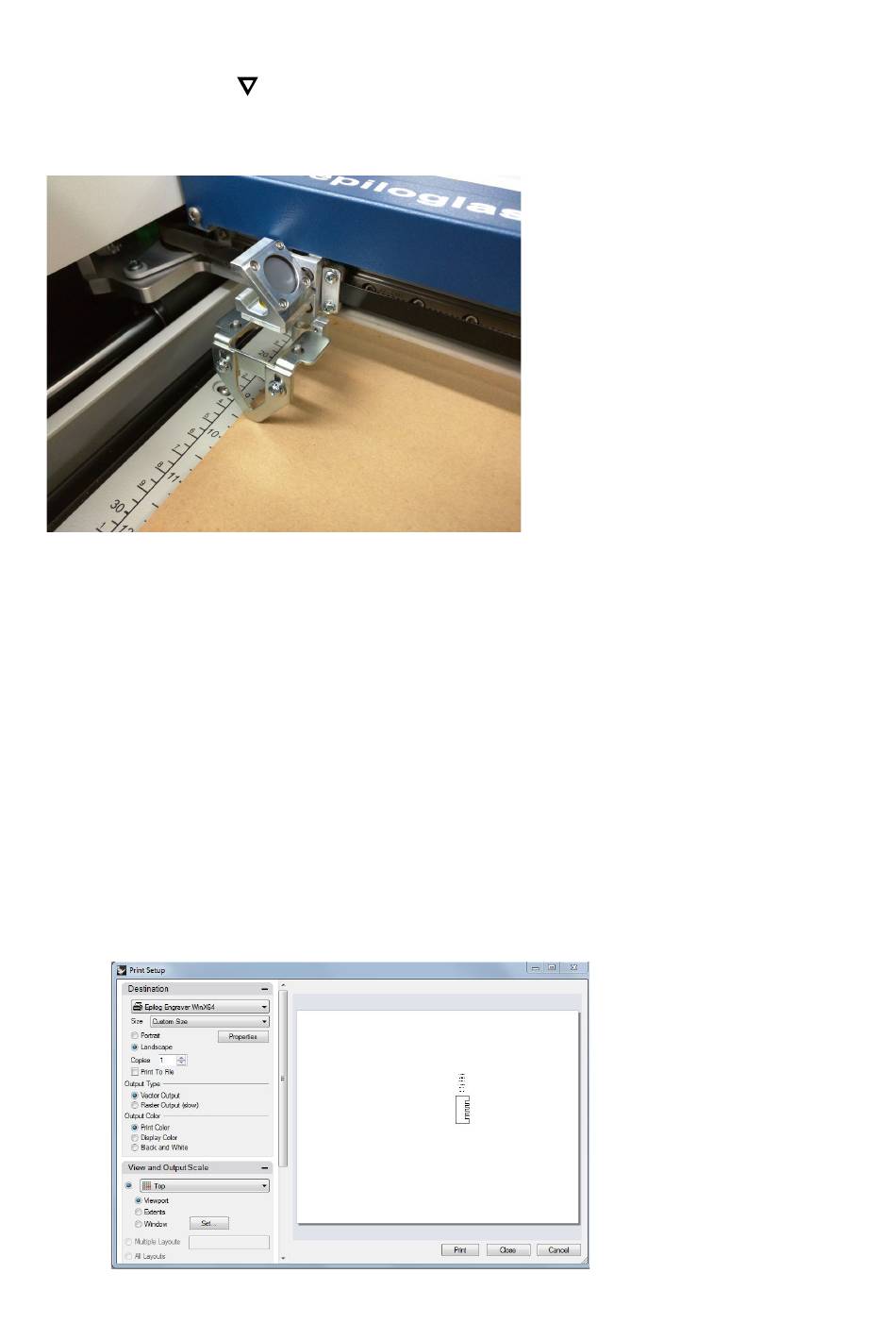

Figure 3 ​ : Magnetic focus tool fitted
to the head of the laser and cutting
bed raised showing focus tool
touching material.
. dxf file ​
.
