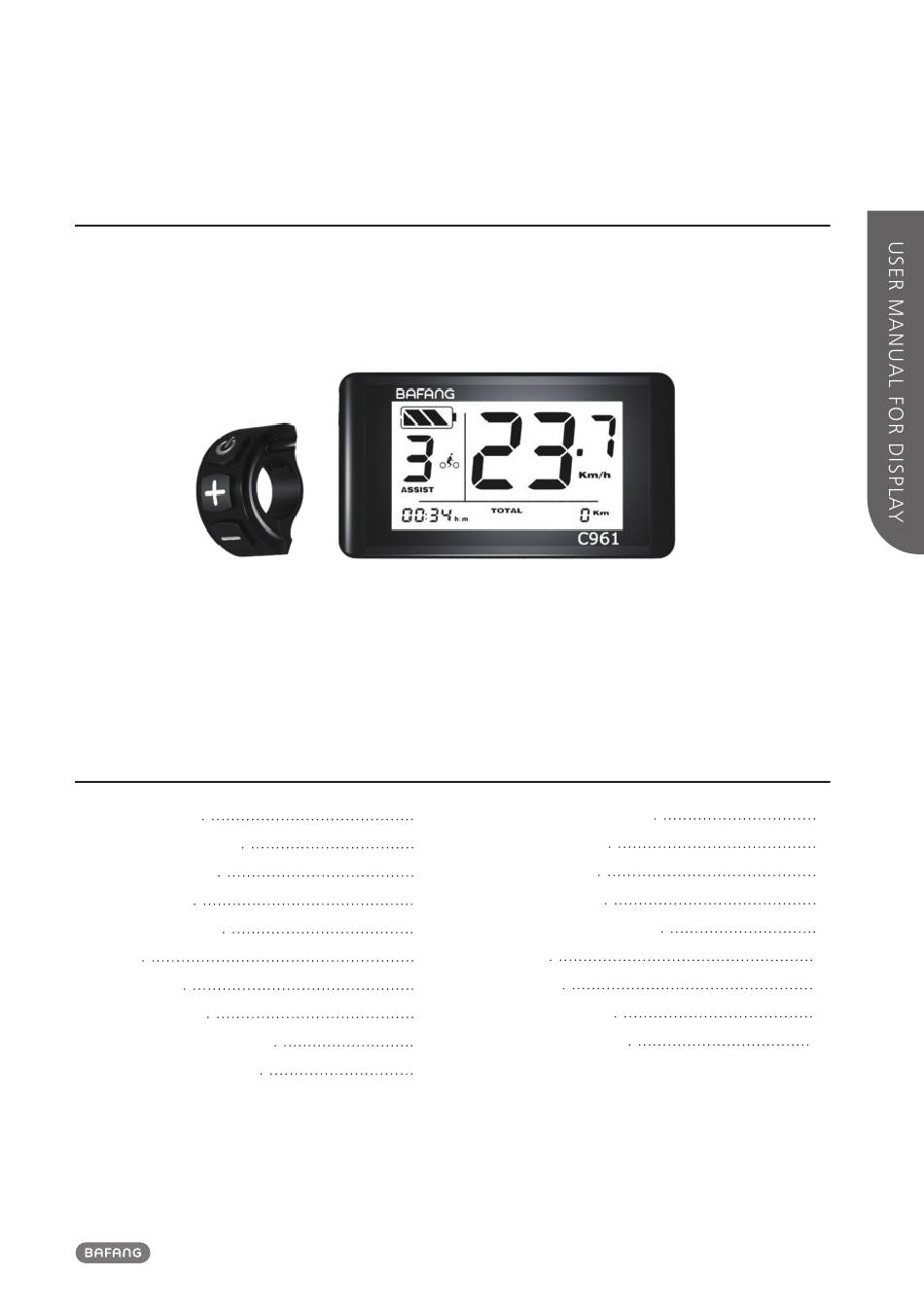

7 USER MANUAL FOR
DP C01.CAN
CONTENT
BF-UM-C-DP C01-EN November 2019
2
2
3
3
3
4
4
5
5
5
1
5
5
5
5
5
6
6
7
10

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DP C01.CAN BUS and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for BAFANG DP C01.CAN BUS

Summary of Contents for BAFANG DP C01.CAN BUS

  • Page 1: Table Of Contents

    7 USER MANUAL FOR DP C01.CAN CONTENT 7.1 Important Notice 7.6.3 Headlights / backlighting 7.2 Introduction of Display 7.6.4 Walk Assistance 7.3 Product Description 7.6.5 Reset mileage 7.6.6 Selection mode 7.3.1 Specifications 7.6.7 Battery capacity indication 7.3.2 Functions Overview 7.7 Settings 7.4 Display 7.5 Key Definition 7.7.1 Setting...

  • Page 2: Important Notice

    • Do not clean the display with a steam jet, high-pressure cleaner or water hose. 7.2 INTRODUCTION OF DISPLAY • Model: DP C01.CAN BUS • The label marking is as follows: • The housing material is PC and PVC: Note: Please keep the QR code label attached to the display cable.

  • Page 3: Product Description

    7.3 PRODUCT DESCRIPTION 7.3.2 Functional Overview 7.3.1 Specifications • Speed display (switching between km and • Operating temperature: -20℃~45℃ miles). • Storage temperature: -20℃~50℃ • Battery capacity indication. • Waterproof: IP65 • The lighting system. • Bearing humidity: 30%-70% RH •...

  • Page 4: Display

    7.4 DISPLAY Total kilometers (ODO) Display of battery capacity in real time Daily kilometers (TRIP) Riding mode Trip data Support level Unit of trip Walking assistance Unit of speed Time Speed display in real-time Battery information 7.5 KEY DEFINITION Mode/System On/Off Down BF-UM-C-DP C01-EN Novmber 2019...

  • Page 5: Normal Operation

    7.6 NORMAL OPERATION 7.6.1 Switching the System ON/OFF 7.6.5 Reset mileage Press and hold (>2S) on the display to When HMI power on, at the single trip inter- turn on the system. Press and hold (>2S) face press and hold synchro- again to turn off the system.

  • Page 6: Settings

    7.7 SETTINGS 7.7.1 Setting 7.7.1.3 Set Clock When the system is on, press and hold 7.7.1.1 Selection of unit in km/Miles for 2 seconds to the setting inter- When the system is on, press and hold face, repetitively press (<0.5S) until the for 2 seconds to the setting inter- clock interface (as below), and then press...

  • Page 7: View Information

    7.7.1.5 Set support level speed limit interface (as below). When the system is on, press and hold Press and hold button together for 2 seconds to the setting inter- to exit to the main interface. Or press (<0.5S) face, repetitively press (<0.5S) until the to enter next item "Display Information".
  • Page 8 7.7.2.4 Controller Information When the system is on, press and hold for 2 seconds to the setting inter- face, repetitively press (<0.5S) until con- troller hardware version (CHc) or software version (CSc) interface (as below). Press and hold button together to exit to the main interface.
  • Page 9 7.7.2.7 Battery Information 2) View hardware and software version of battery 1) When the system is on, press and hold for 2 seconds to view battery Briefly press (0.5s) to display hardware information, repetitively press (<0.5S) and software version of battery. to view all info of battery.

  • Page 10: Error Code Definition

    7.8 ERROR CODE DEFINITION The display can show the errors of a pedelec. If an error is detected, one of the following error codes will be displayed. Note: Please read the description of the error code carefully. If you see the error code, restart the system first. If the problem is not resolved, please contact your dealer.
  • Page 11 Error Declaration Troubleshooting 1. Turn off the system and let the pedelec cool The protection temperature inside down. the controller has reached its maxi- 2. If the problem persists, please contact your mum protection value retailer. Error with the temperature sensor Please contact your retailer.
  • Page 12 Error Declaration Troubleshooting Detection circuit for 15V has an error Please contact your retailer. Detection circuit on the keypad has Please contact your retailer. an error WDT circuit is faulty Please contact your retailer. Total voltage from the battery is too Please contact your retailer.
