Summary of Contents for BAFANG C966

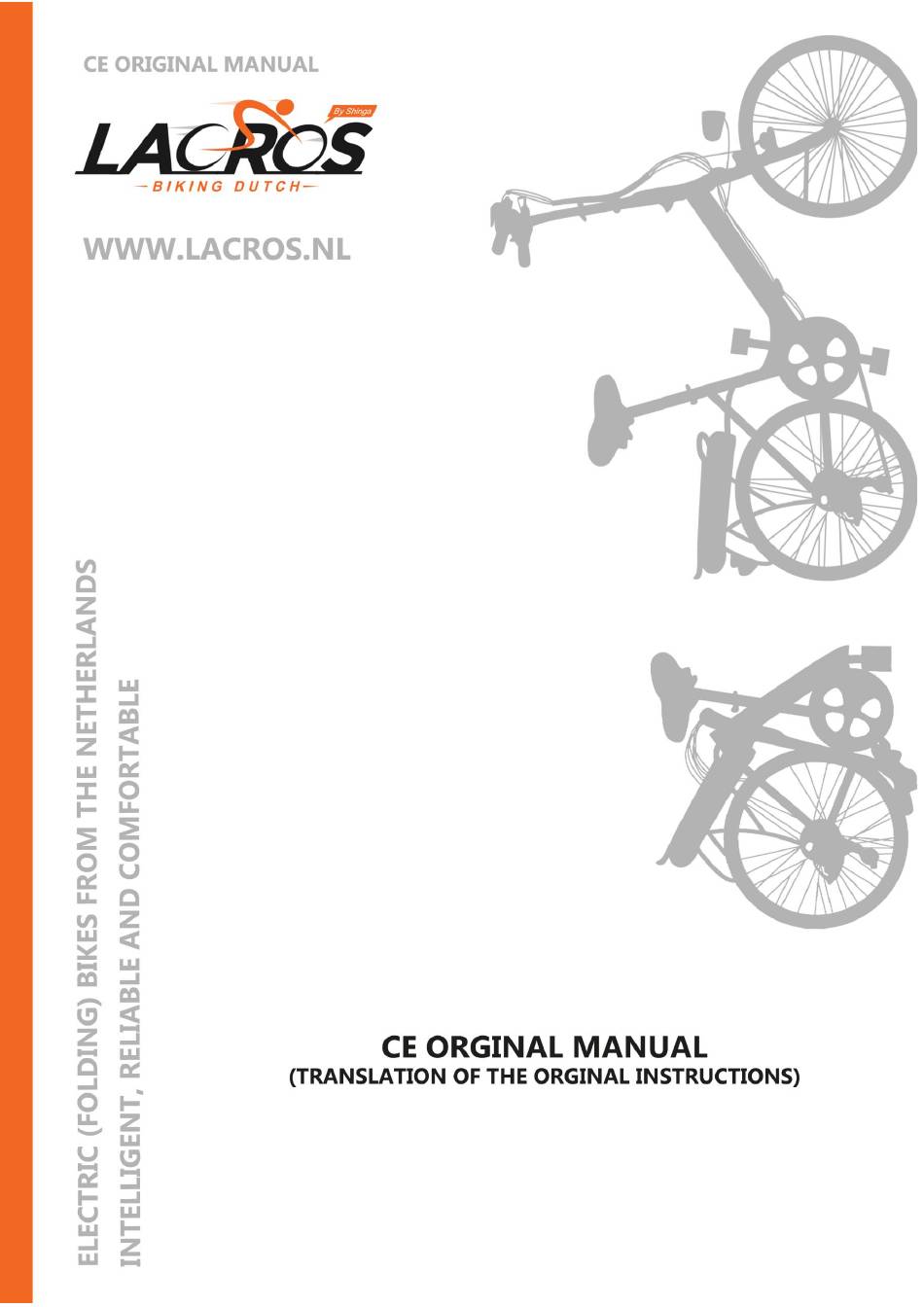

- Page 1 CE ORIGINAL MANUAL LACROS BAFANG LCD DISPLAY VERSION CE 1.2 EN BAFANG LCD DISPLAY...
-
Page 2: For Your Safety
CE ORIGINAL MANUAL LACROS BAFANG LCD DISPLAY VERSION CE 1.2 EN For your safety Your safety is very important, so read the following safety advices carefully. More safety tips are listed further in the manual: 1. The LACROS Electric bike is equipped with an electromotor. It is very important that you are familiar with the bike as soon as possible. -
Page 3: Review Documentation Emc-Directive: 2014/30/Eu Machine Directive: 2006/42/Eg
CE ORIGINAL MANUAL LACROS BAFANG LCD DISPLAY VERSION CE 1.2 EN Review documentation EMC-directive: 2014/30/EU Machine directive: 2006/42/EG Your product is an electric folding bike. The bicycle can be folded at 2 locations, on the handlebar stem and halfway at the frame. The bike is equipped with a pedal support system which is powered by an external battery. -
Page 4: Table Of Contents
CE ORIGINAL MANUAL LACROS BAFANG LCD DISPLAY VERSION CE 1.2 EN Table of contents For your safety ..............................2 Review documentation EMC-directive: 2014/30/EU Machine directive: 2006/42/EG ........3 1. How to use the display ............................5 2. Other functions ..............................6 3. -
Page 5: How To Use The Display

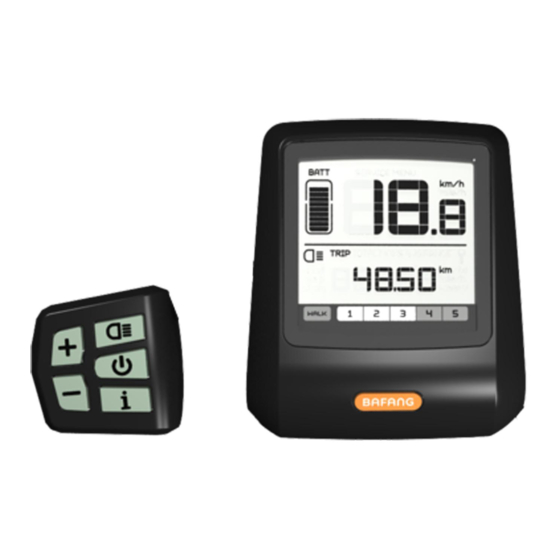

CE ORIGINAL MANUAL LACROS BAFANG LCD DISPLAY VERSION CE 1.2 EN 1. How to use the display Function control unit 1 = increase motor support 2 = decrease motor support (Press and hold to activate Walk Assist) 3 = on/off button... -
Page 6: Other Functions
CE ORIGINAL MANUAL LACROS BAFANG LCD DISPLAY VERSION CE 1.2 EN 2. Other functions Known error messages In the event of a fault, an error message will appear with the associated error code. Do not use the bicycle and contact Shinga as soon as possible. - Page 7 CE ORIGINAL MANUAL LACROS BAFANG LCD DISPLAY VERSION CE 1.2 EN Advanced settings Warning!! These advanced settings should only be changed by Shinga or a Shinga service dealer. Shinga is not responsible for consequences resulting from changes made to the settings without the proper permission of Shinga.
- Page 8 CE ORIGINAL MANUAL LACROS BAFANG LCD DISPLAY VERSION CE 1.2 EN Display auto off (OFF) Choose a value between 1-9 minutes for it to turn off the display automatically. Confirm by pressing the (i) button for 2 seconds. Maintenance notification (MMA)
- Page 9 CE ORIGINAL MANUAL LACROS BAFANG LCD DISPLAY VERSION CE 1.2 EN Set maximum speed (SPEED - secondary menu) Set maximum speed by pressing the (+) or (-) button from 10-45 Km/h*. *Default = 27 Km/h Confirm by pressing the (i) button for 2 seconds.
-
Page 10: Safety Rules
CE ORIGINAL MANUAL LACROS BAFANG LCD DISPLAY VERSION CE 1.2 EN 3. Safety rules • Read your bicycle's manual carefully before your first use. • Follow the traffic rules strictly. • Never dismantle the bicycle yourself. Contact your Shinga B.V supplier for the device component. -
Page 11: Warranty Provisions And Legal Requirements
CE ORIGINAL MANUAL LACROS BAFANG LCD DISPLAY VERSION CE 1.2 EN 4. Warranty provisions and legal requirements Battery warranty The supplier of your battery gives a warranty on any material and construction errors to your battery if the following conditions are met: You can only claim the warranty if you can show a warranty or proof of purchase. -
Page 12: Technical Specifications
CE ORIGINAL MANUAL LACROS BAFANG LCD DISPLAY VERSION CE 1.2 EN 5. Technical specifications • Item: multifunction display • Nominal motor voltage: 36V - 48V • Nominal motor power: 250W - 350W • Nominal current: 10 mA • Maximum operating current: 30 mA •... -
Page 13: Ec Declaration
CE ORIGINAL MANUAL LACROS BAFANG LCD DISPLAY VERSION CE 1.2 EN 9. EC declaration Supplier: Technical Files: Manufacturer: SHINGA B.V. VAN DEN OETELAAR (SHINGA B.V.) SHINGA B.V. MOLENDIJK ZUID 23B MOLENDIJK ZUID 23B MOLENDIJK ZUID 23B 5482 WZ SCHIJNDEL 5482 WZ SCHIJNDEL...
